A.E.B. Leonardo 175 - Fuel Level Sensors Wiring Schematics: ICOM Types; Standard ICOM (0-90 Ohm) Wiring; ICOM Standard AEB Wiring

English
Is175 Rev. 240102 - 2 Pag. 30
FUEL LEVEL SENSORS Wiring Schematics
ICOM SENSORS CODE:
SEC 2000
SEB 2001
SED 2002
SEA 2003
GROUND
GREEN
WHITE
ICOM SENSORS CODE:
SEC 2004
SEB 2014
SED 2024
SEA 2034
GROUND
GREEN
DO NOT CONNECT
ISOLATE
WHITE WHITE
WHITE

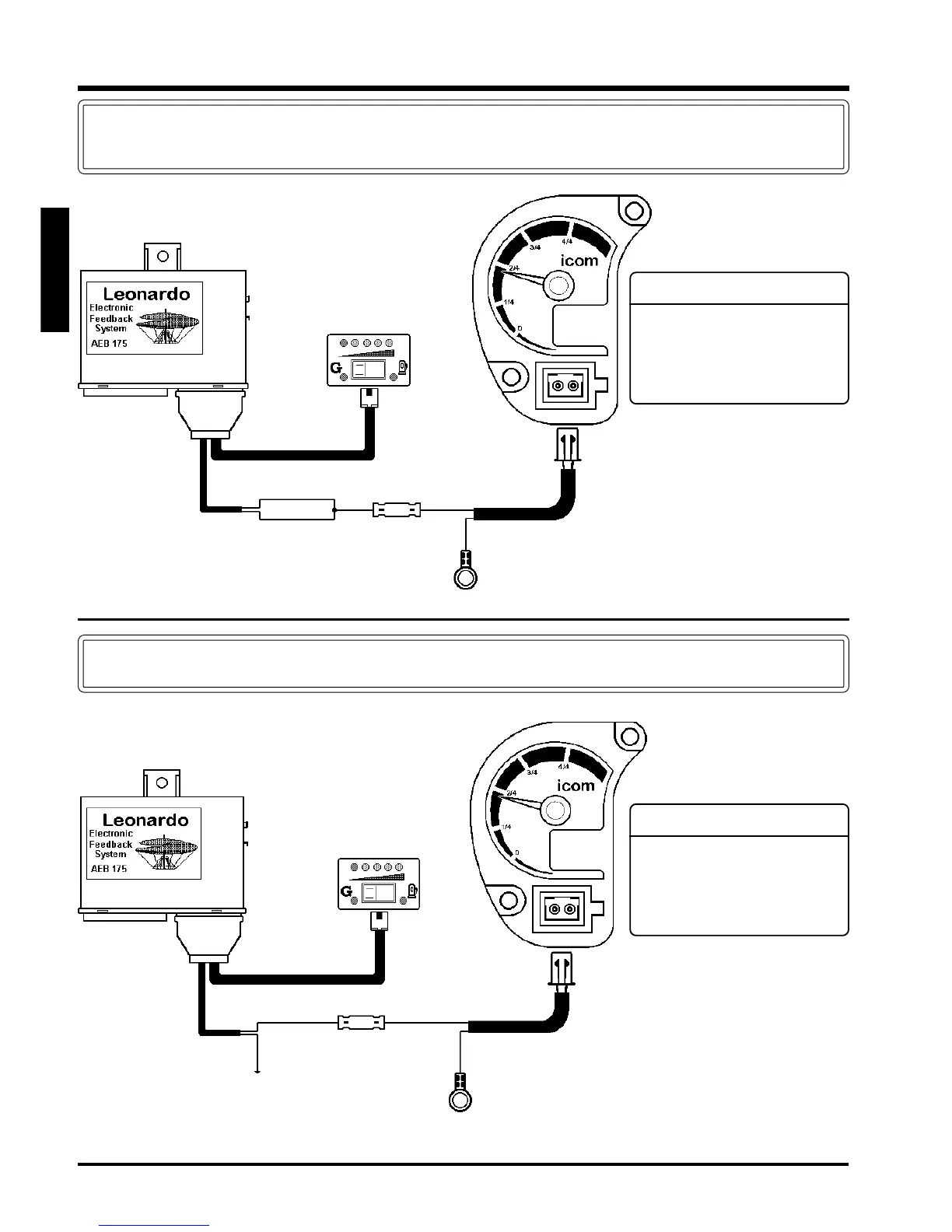

ICOM level sensors wiring schematic
Standard ICOM (0 ÷ 90 Ohm)
ICOM Standard A.E.B. level sensors wiring schematic
