A.E.B. Leonardo 175 - Fuel Level Sensors Wiring Schematics: ICOM Variants; ICOM Sensor Codes SEU 02200 Wiring; ICOM Standard AEB Codes SEU 02204 Wiring

English
Is175 Rev. 240102 - 2 Pag. 31

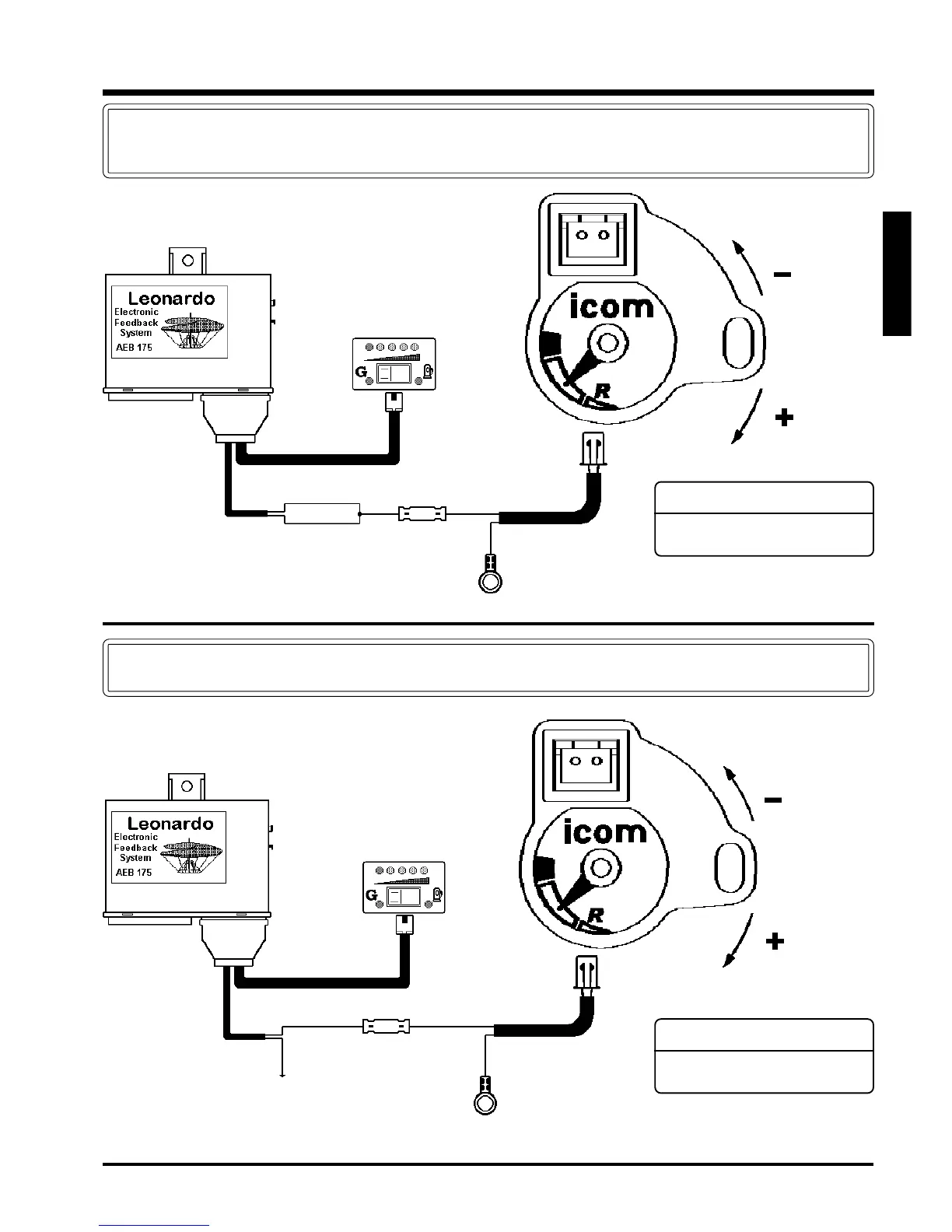

FUEL LEVEL SENSORS Wiring Schematics
ICOM SENSORS CODE:
SEU 02200
GROUND
GREEN
WHITE
ICOM SENSORS CODE:
SEU 02204
GROUND
GREEN
DO NOT CONNECT
ISOLATE
WHITE WHITE
WHITE
ICOM level sensors wiring schematic
Standard ICOM (0 ÷ 90 Ohm)
ICOM Standard A.E.B. level sensors wiring schematic
