Hysteresis
Defines the hysteresis for both switching points.
Setting range: 1 … 30%

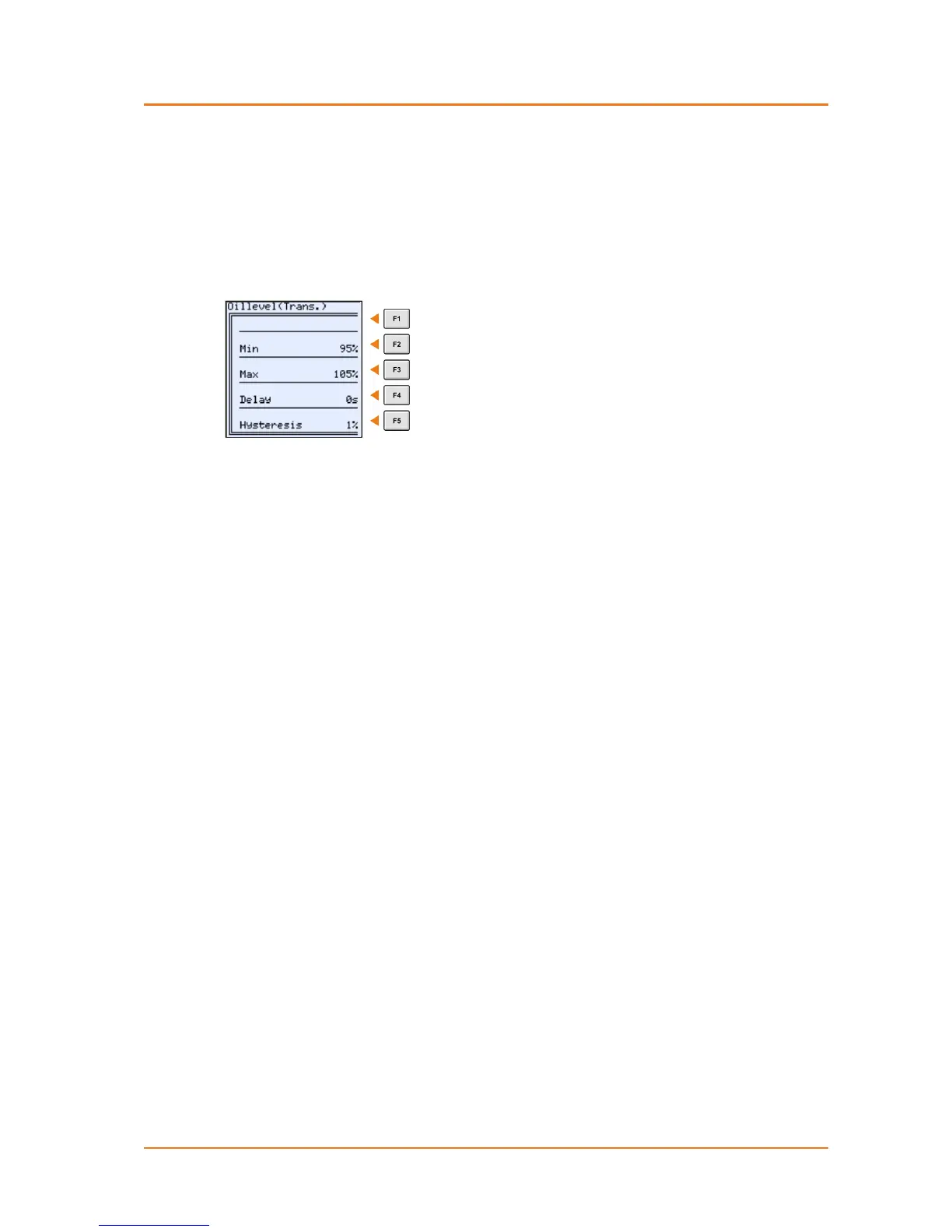

Oil level (transformer) 5.4.3
Minimum value
Defines the switch-on point for the 'Oil level too low' alarm signal.
Setting range: 0 … 150%
Maximum value
Defines the switch-on point for the 'Oil level too high' alarm signal.
Setting range: 0 … 150%
Switching delay
Defines the switch-on delay for the alarm signal.
Setting range: 0...900 s
Hysteresis
Defines the hysteresis for both switching points.
Setting range: 1 … 30%
