Retrofit of analogue channels (only REG-DTM and TMM)
LEREF "Verzeichnis Ueberschrift" \* MERGEFORMAT Index
Fehler! Verwenden Sie die Registerkarte 'Start', um Verzeichnis Ueberschrift
dem Text zuzuweisen, der hier angezeigt werden soll.Contents
We take care of it.
6. Retrofit of analogue channels (only REG-D
TM
and TMM)
Check the wiring
Please check first whether the housing/rack has the wiring for the analogue chan-
nels. If this is not the case, a rewiring has to be done. It is recommended that this
work be carried out at the A. Eberle REGSys
TM
support team (regsys-support@a-
eberle.de, +49(0)911/628108-101). On the same occasion, retrofitting of the ana-
logue channels in the REG-D™ can also take place.
If the housing/rack already has wiring for analogue channels, the analogue channels can be
upgraded based on the following description.
The REG-D™ has a total of three slots for analogue modules.
Numbering of the slots is always from top to bottom. That is, the first module (upper), is
recognized by the firmware as channel 1 and 2. The middle slot accepts channels 3 and 4,
and the lowest slot channels 5 and 6.

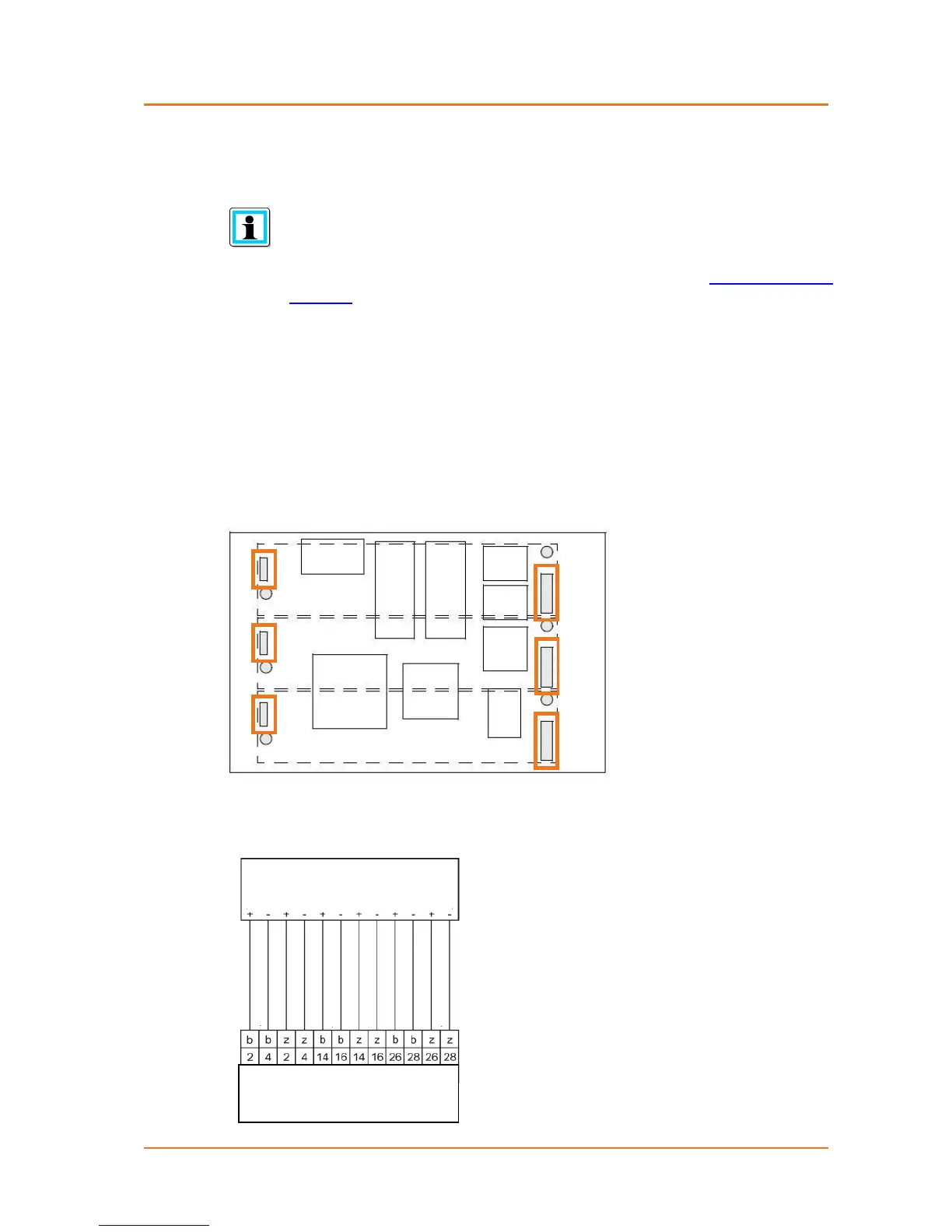

Location of analogue slots on the REG-CPU processor board:
The red rectangles indicate the location of the connector between the CPU and the ana-
logue modules.
Front panel
Battery
Module 1
Module 2
Module 3
Female multipoint connector
6 (CPU)
Module 1.1 - Channel 1
Module 1.2 - Channel 2
Module 2.1 - Channel 3
Module 2.2 - Channel 4
Module 3.1 - Channel 5
Analogue channels (Option E9x)
Module 1
Module 2
Module 3
