Increasing the system's hardware resources
LEREF "Verzeichnis Ueberschrift" \* MERGEFORMAT Index
Fehler! Verwenden Sie die Registerkarte 'Start', um Verzeichnis Ueberschrift
dem Text zuzuweisen, der hier angezeigt werden soll.Contents
We take care of it.
The BIN-D interface card can be supplied with either eight relay outputs or sixteen optically
decoupled binary inputs.

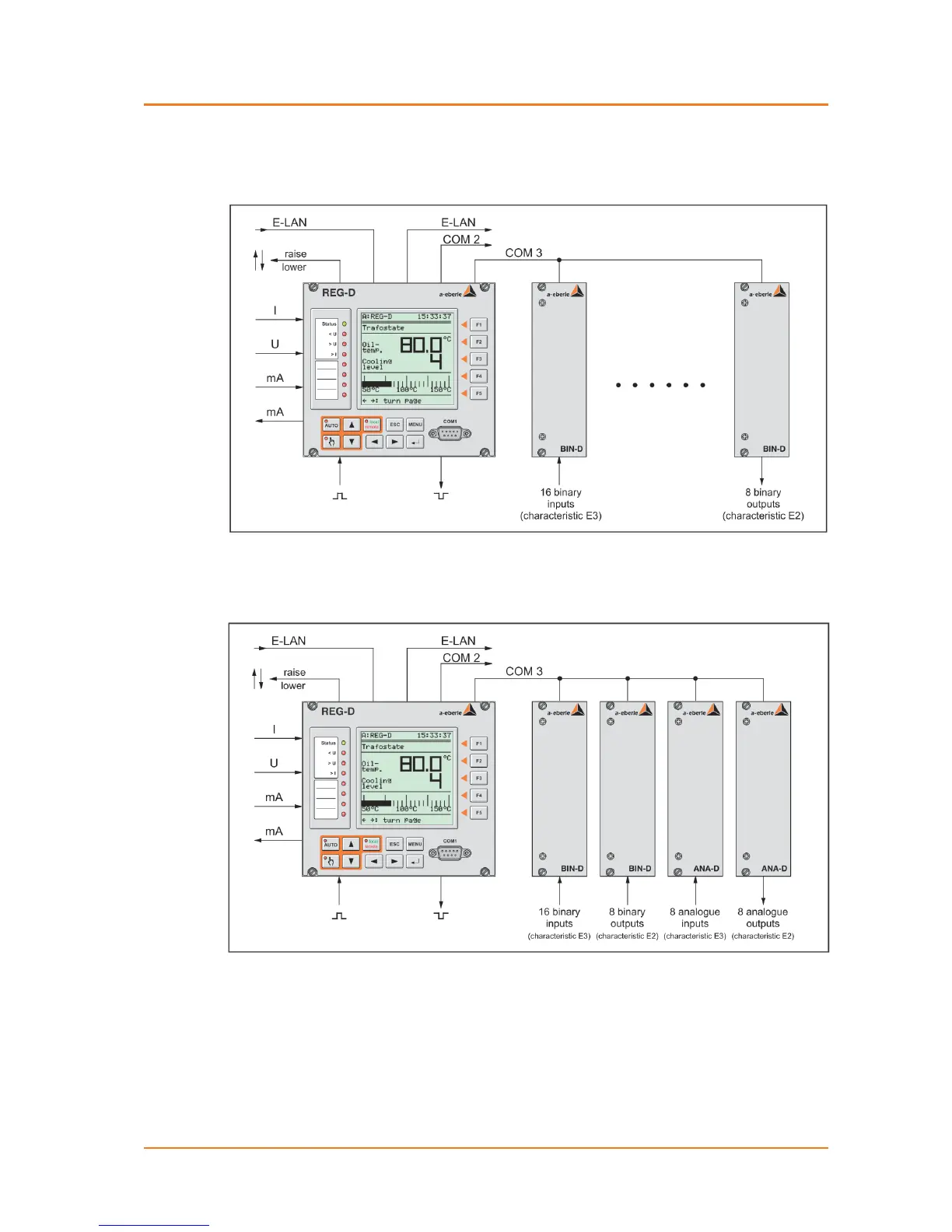

Figure 10: Hardware extension via BIN-D
ANA-D and BIN-D interface cards can be combined on COM3 as desired.
Figure 11: Hardware extension via ANA-D and BIN-D
