25

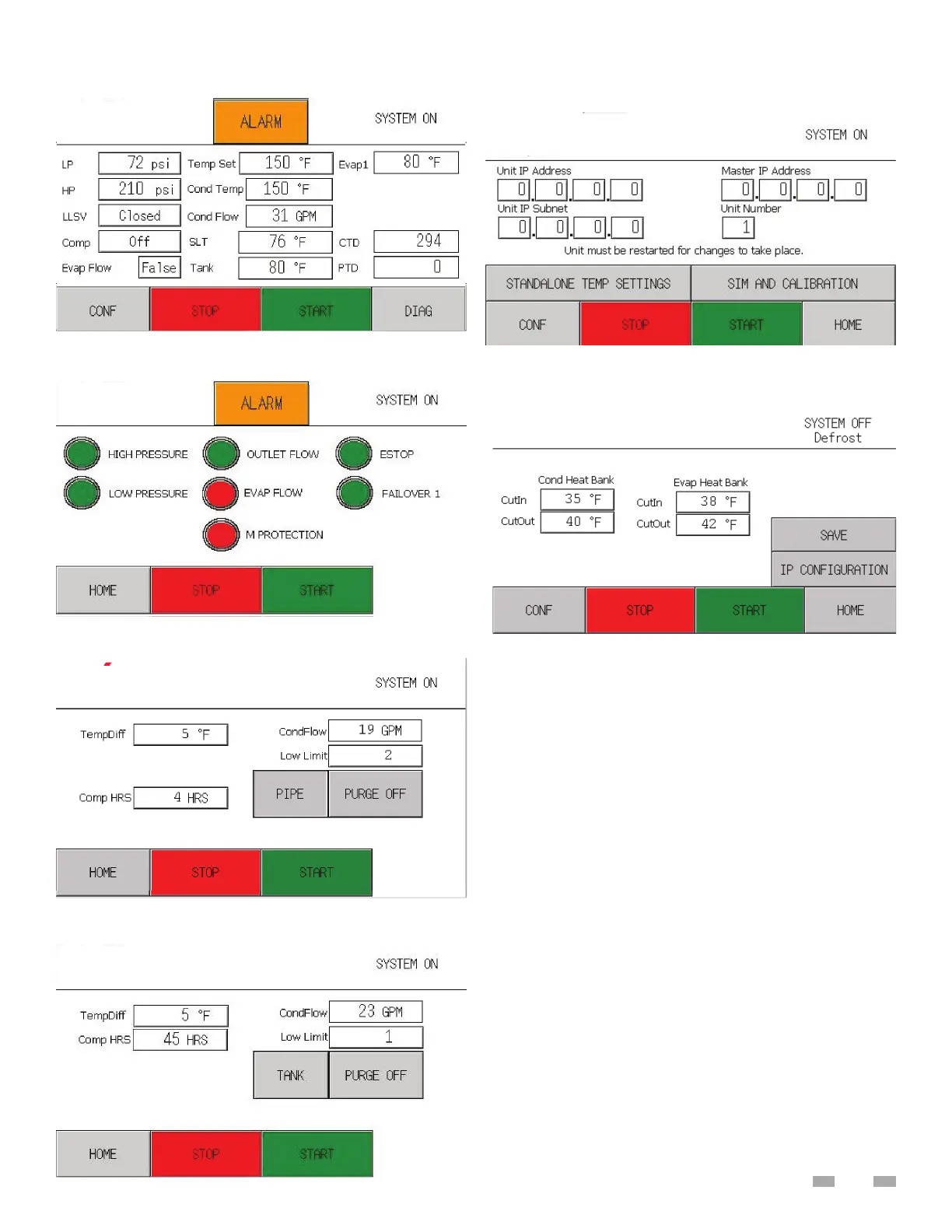

SINGLE UNIT HOME SCREEN DISPLAYING ALARM
SINGLE UNIT ALARM SCREEN
SINGLE UNIT PIPE CONFIGURATION SCREEN
SINGLE UNIT TANK CONFIGURATION SCREEN
SINGLE UNIT IP ADDRESS CONFIGURATION
SCREEN (FOR USE CONTACT AO SMITH)
SINGLE UNIT HEAT BANK SCREEN
MEMBER SCREEN TERMINOLOGY
HOME SCREEN
“LP – Low Pressure: indicates the suction line pressure on the
low side of the system
“HP – High Pressure: indicates the discharge line pressure on
the high side of the system
“LLSV” – Liquid Line Solenoid Valve: indicates the position of
the LLSV (open or closed)
Comp” – Compressor: indicates the status of the compressor
(on or o ) “Blower” – Blower Overload Status: indicates if the
blower motor starter is tripped on an Air to Water HPWH
“TempSet” Tank Temperature Setpoint: indicates the
desired tank temperature to be maintained
CondFlow” – Condenser Flow: indicates if there is water
flowing through the condenser
Cond” – Condenser Temperature: indicates the leaving water
temperature from the condenser
“SLT – Suction Line Temperature: indicates the suction line
temperature of the unit right before the compressor
“Evap1” – Evaporator 1: indicates the evaporator temperature
of the  rst evaporator
