Aaeon UP-CHT01 - Connector Pinout Details

Chapter 2 – Hardware Information 8
Maker Board UP-CHT01

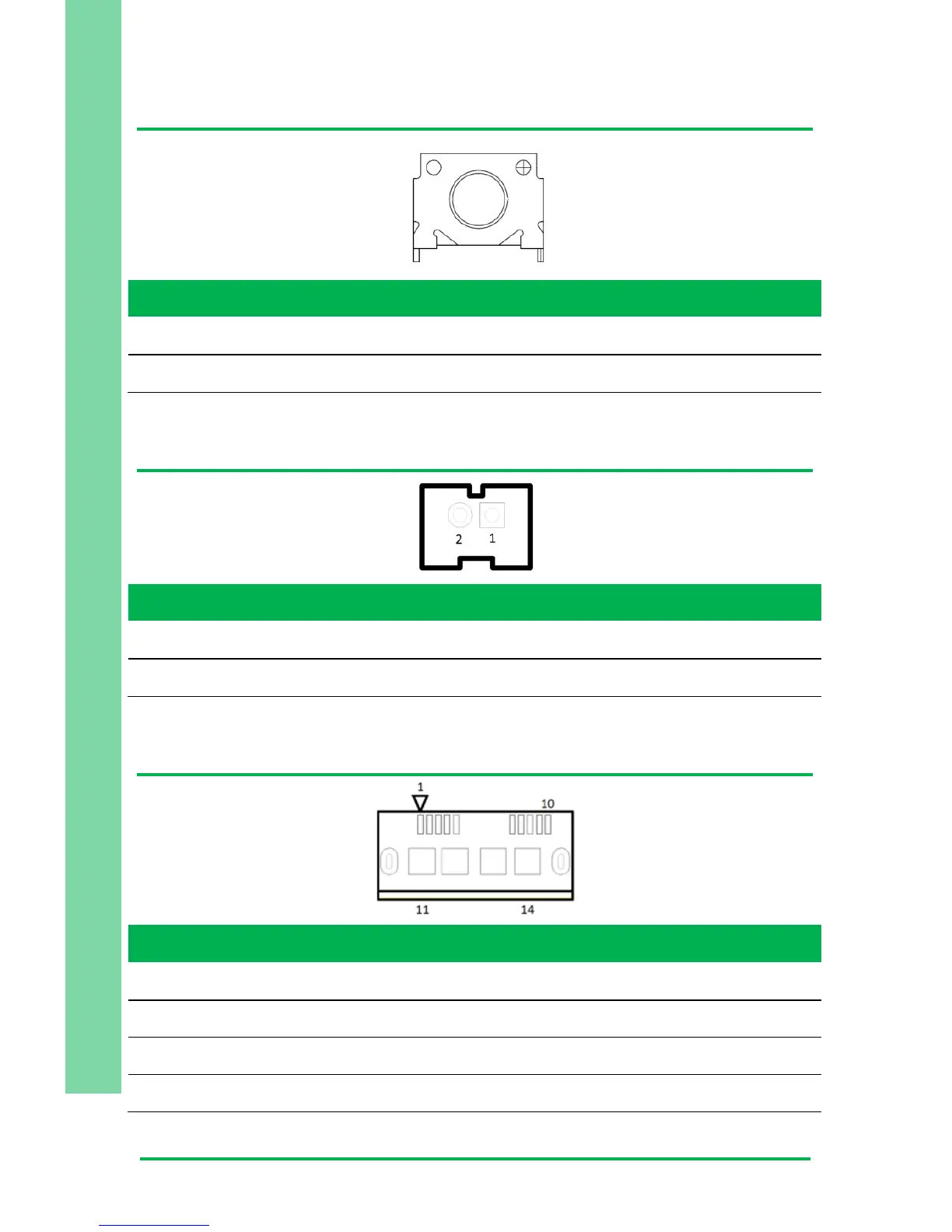

2.3.1 Power Button (SW1)
Position
Function
SW1 1
Power off (default)
SW1 0
Power on
2.3.2 RTC Battery Wafer (CN1)
Pin
Signal
1
+V_COIN_BAT
2
GND
2.3.3 USB 3.0 Micro Connector (CN6)
Pin
Signal
Pin
Signal
1
USB_VCC
8
GND
2
USB2_D-
9
CROSSBAR_TX1_N
3
USB2_D+
10
CROSSBAR_TX1_P
4
USB2_ID
11
GND
