Aaeon UP-CHT01 - USB 2.0 X 10 P Wafer (CN7); Dual USB Type a Connector 1 (CN8)

Chapter 2 – Hardware Information 9
Maker Board UP-CHT01
5
GND
12
GND
6
CROSSBAR_RX1_N
13
GND
7
CROSSBAR_RX1_P
14
GND

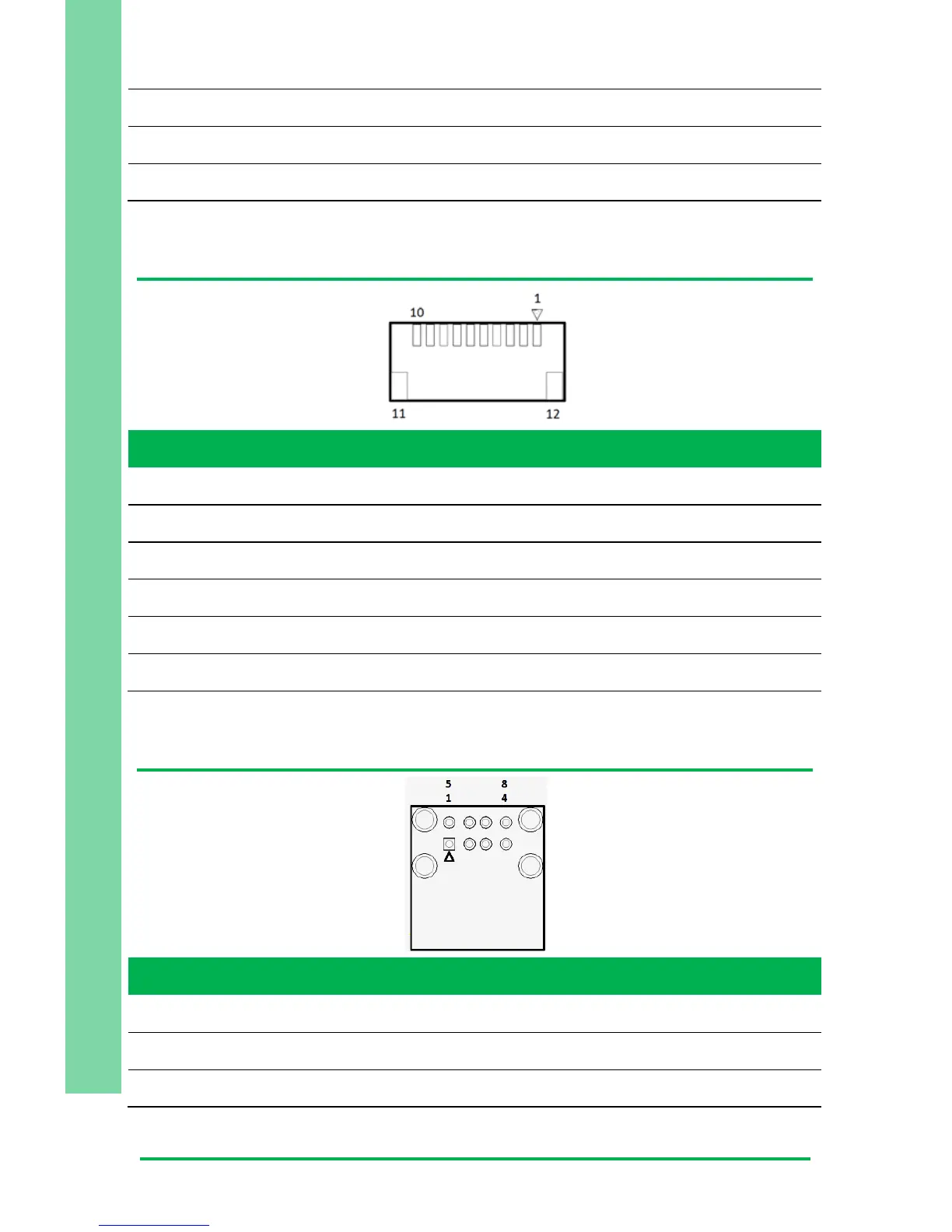

2.3.4 USB 2.0 x 10P Wafer (CN7)
Pin
Signal
Pin
Signal
1
USB_VCC
7
USB_HSIC_P4_D+
2
USB_HSIC_P3_D-
8
GND
3
USB_HSIC_P3_D+
9
UART0_RXD
4
GND
10
UART0_TXD
5
USB_VCC
11
GND
6
USB_HSIC_P4_D-
12
GND
2.3.5 Dual USB Type A Connector 1 (CN8)
Pin
Signal
Pin
Signal
1
USB_VCC
5
USB_VCC
2
USB2_P1_D-
6
USB2_P2_D-
3
USB2_P1_D+
7
USB2_P2_D+
