Aaeon UP-CHT01 - HDMI Connector (CN11); HAT 40 GPIO Connector (CN12)

Chapter 2 – Hardware Information 11
Maker Board UP-CHT01
R6
LAN1_MDI2-
L3
LAN_LINK100#
R7
LAN1_MDI2+
L4
LAN_LINK1000#

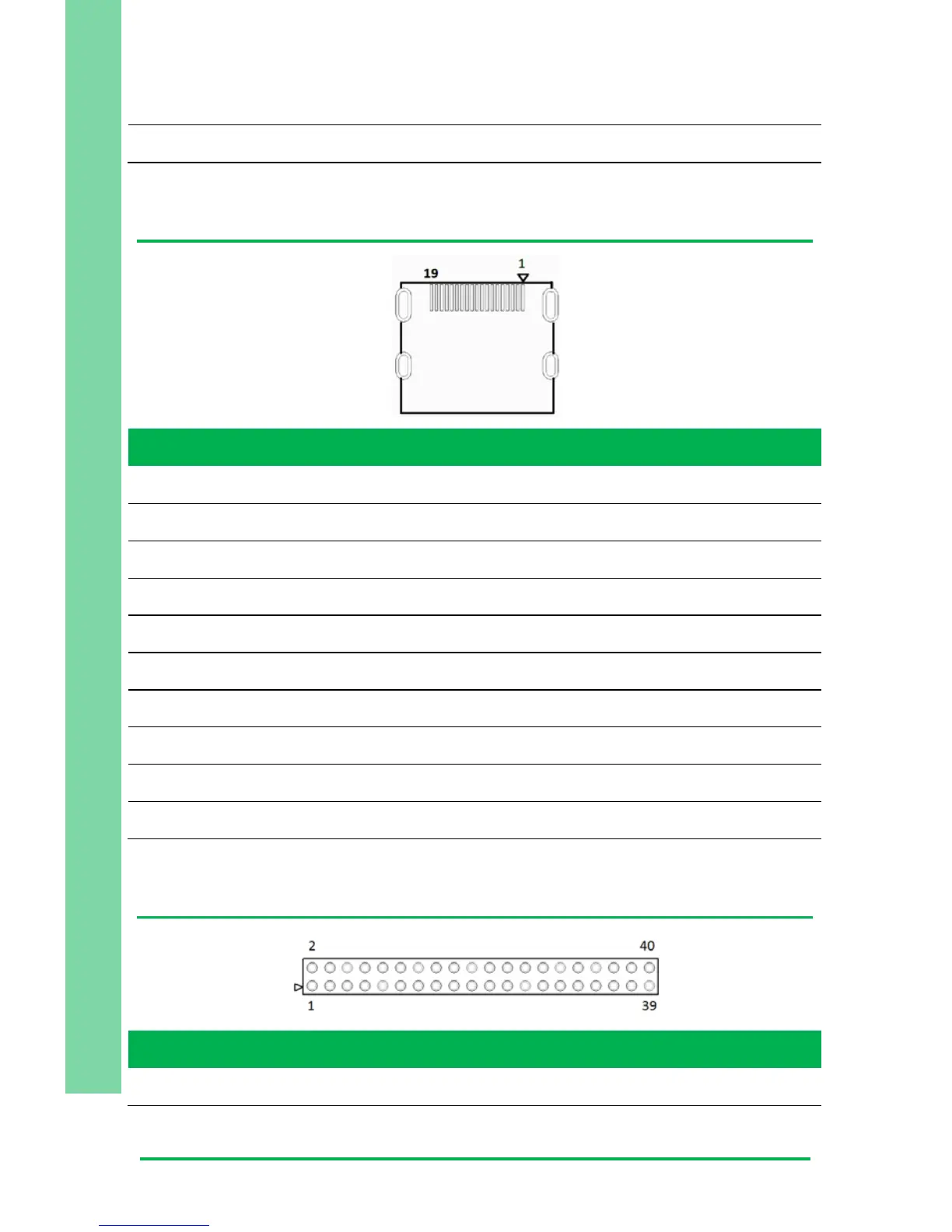

2.3.8 HDMI Connector (CN11)
Pin
Signal
Pin
Signal
1
DDI2_TX0_HDMI_DP+
11
GND
2
GND
12
DDI2_CLK_HDMI_DN-
3
DDI2_TX0_HDMI_DN-
13
HDMI_CEC_D
4
DDI2_TX1_HDMI_DP+
14
NC
5
GND
15
DDI2_DDC_CLK
6
DDI2_TX1_HDMI_DN-
16
DDI2_DDC_DAT
7
DDI2_TX2_HDMI_DP+
17
GND
8
GND
18
+5V_HDMI
9
DDI2_TX2_HDMI_DN-
19
DDI2_TYPE_C_HPD
10
DDI2_CLK_HDMI_DP+
2.3.9 HAT 40 GPIO Connector (CN12)
Pin
Signal
Pin
Signal
1
+3.3V
2
+5V
