Chapter 2 – Hardware Information 10
Maker Board UP-CHT01
4
GND
8
GND

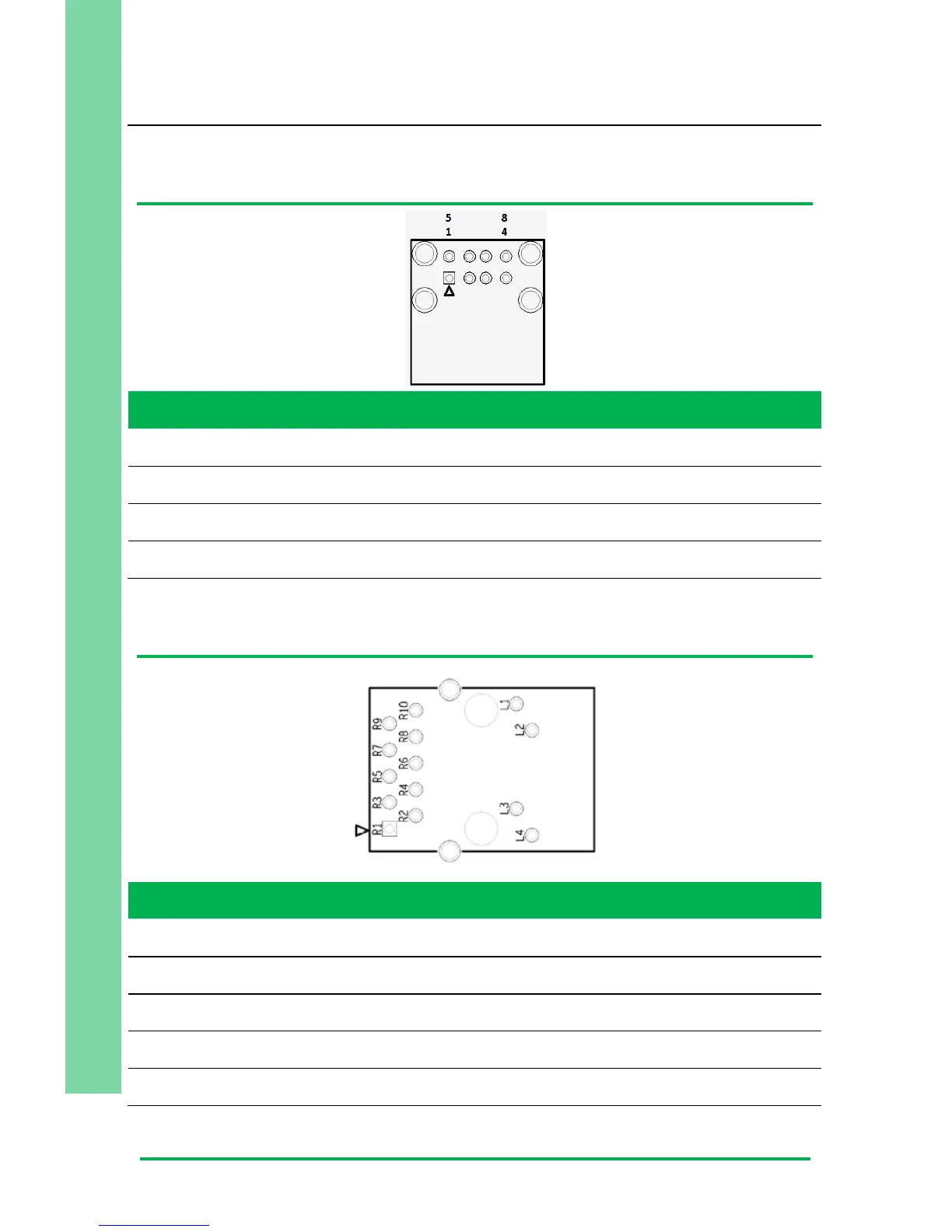

2.3.6 Dual USB Type A Connector 2 (CN9)
Pin
Signal
Pin
Signal
1
USB_VCC
5
USB_VCC
2
USB2_P3_D-
6
USB_HSIC_P2_D-
3
USB2_P3_D+
7
USB_HSIC_P2_D+
4
GND
8
GND
2.3.7 RJ-45 LAN Connector (CN10)
Pin
Signal
Pin
Signal
R1
LAN1_MDI0+
R8
LAN1_MDI2-
R2
LAN1_MDI0-
R9
LAN1_MDI3+
R3
LAN1_MDI1+
R10
LAN1_MDI3-
R4
LAN1_MDI1-
L1
LAN_ACTLEDP
R5
LAN1_MDI2+
L2
LAN_ACTLEDN
