Chapter 2 – Hardware Information 13
Maker Board UP-CHT01
Pin
Signal
1
+V5
2
GND
3
GND

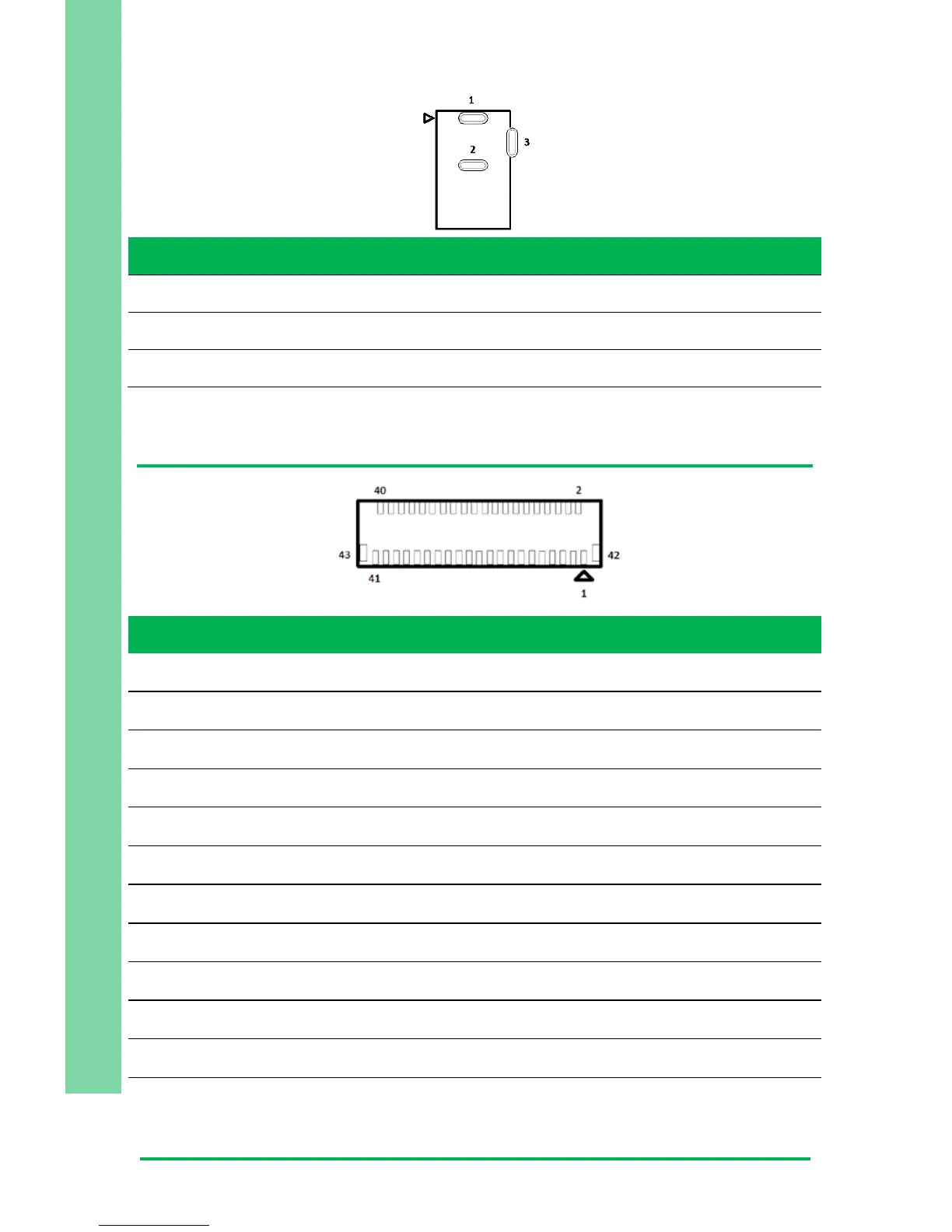

2.3.12 MIPI DSI Connector (CN31)
Pin
Signal
Pin
Signal
Pin
Signal
1
MDSI_A_DATA1_DN
16
DDI0_TX0_DP
31
DDI0_HPD_CONN
2
MDSI_A_DATA1_DP
17
DDI0_TX0_DN
32
DDI0_BKLT_R_CTRL
3
GND
18
GND
33
DDI0_VDD_EN
4
MDSI_A_CLK_DN
19
DDI0_TX1_DP
34
DDI0_BKLT_EN
5
MDSI_A_CLK_DP
20
DDI0_TX1_DN
35
NC
6
GND
21
GND
36
NC
7
MDSI_A_DATA0_DN
22
DDI0_TX2_DP
37
+3.3V
8
MDSI_A_DATA0_DP
23
DDI0_TX2_DN
38
+3.3V
9
GND
24
GND
39
+3.3V
10
I2C2_3P3_SCL
25
DDI0_TX3_DP
40
+3.3V
11
I2C2_3P3_SDA
26
DDI0_TX3_DN
41
+3.3V
12
GND
27
GND
42
GND
