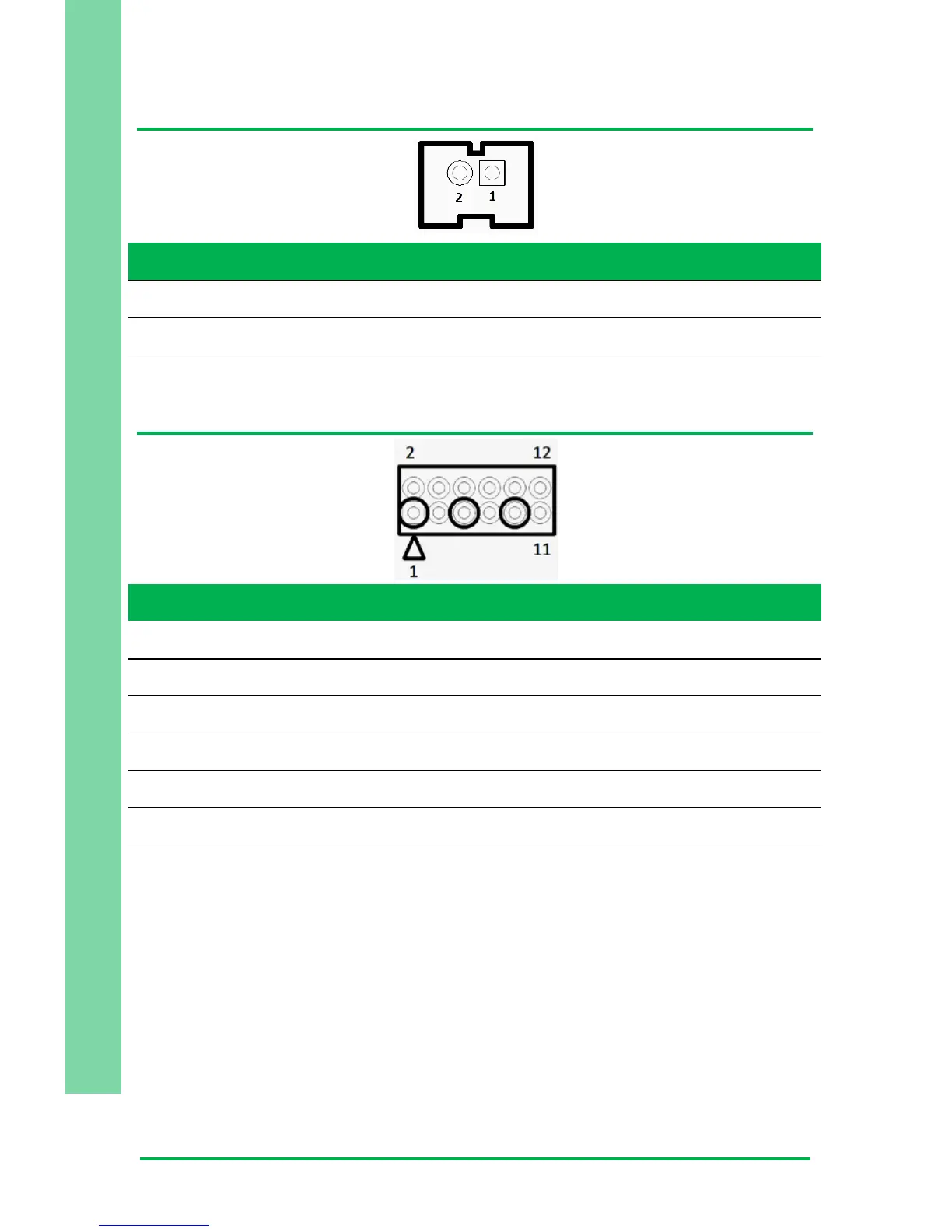

2.3.14 Power Button Wafer (CN33)
Pin
Signal
1
PWR_SW#_CTL_R
2
GND
2.3.15 Update CPLD Header (CN34)
Pin
Signal
Pin
Signal
1
CHT_GPIO_TMS
2
CPLD_TMS
3
CHT_GPIO_TDI
4
CPLD_TDI
5
CHT_GPIO_TCK
6
CPLD_TCK
7
CHT_GPIO_TDO
8
CPLD_TDO
9
FAN_PWM
10
+1.8V
11
+5V
12
GND
