AD-8920 Remote display
 Connected to the GF series using the RS-232C interface to display the weighing data away
from the balance..
AD-8922 Remote controller
 Connected to the GF series using the RS-232C interface to display the weighing data and to
remotely control the balance.
AX-SW128 Foot switch
 Used to externally transmit a RE-ZERO or PRINT signal to the balance.
AX-USB-25P-EX USB converter
 Adds a COM port to a PC.
 Enables bi-directional communication between the PC and the balance when a USB driver is
installed.
 Can use serial communication software such as WinCT on a PC without COM ports.
 An RS-232C cable is provided to connect the USB converter to the balance.

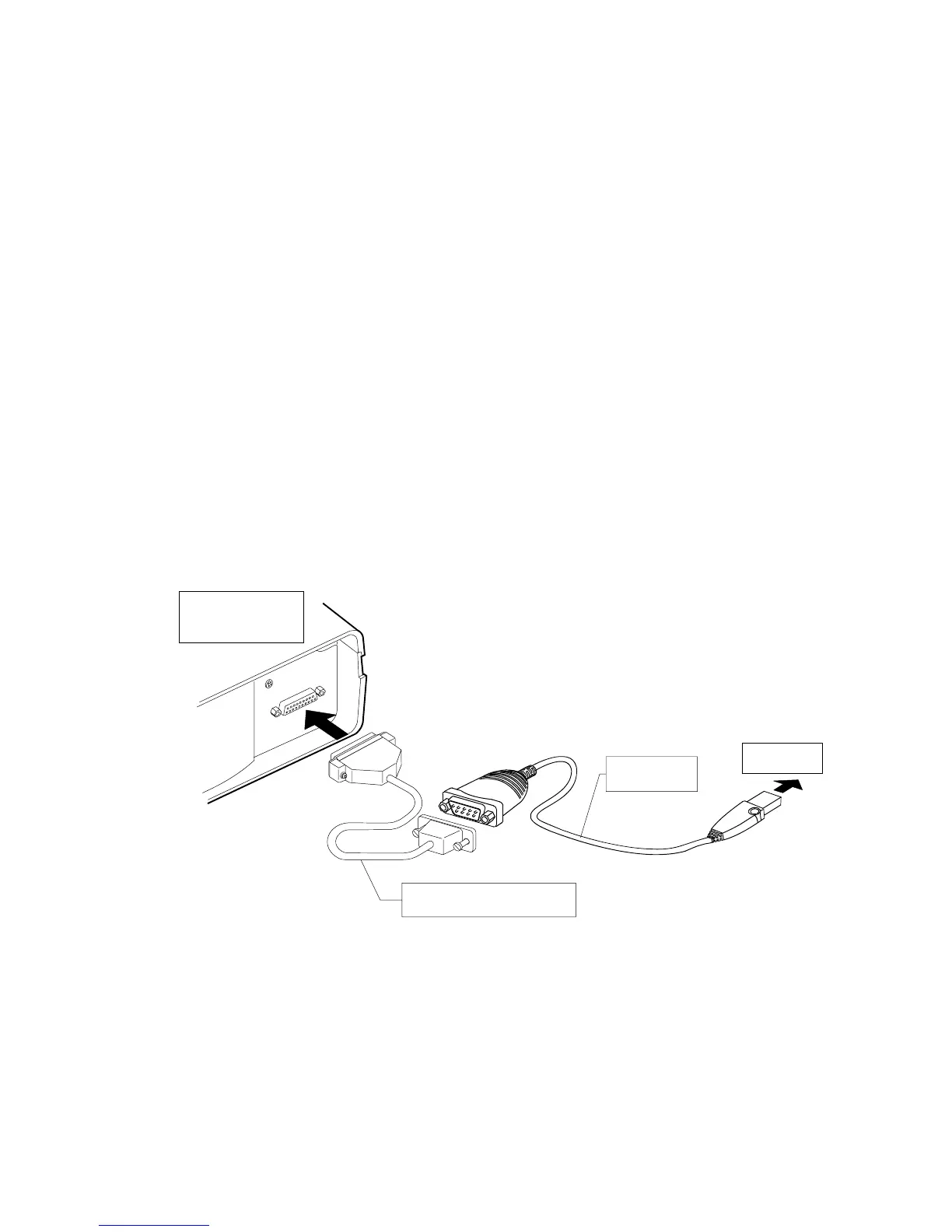

To USB port
on a PC
RS-232C
on the GF series
balance
USB serial
converter
RS-232C cable provided
(
D-sub 2
5
-
p
in
)
