MainSelector East positions

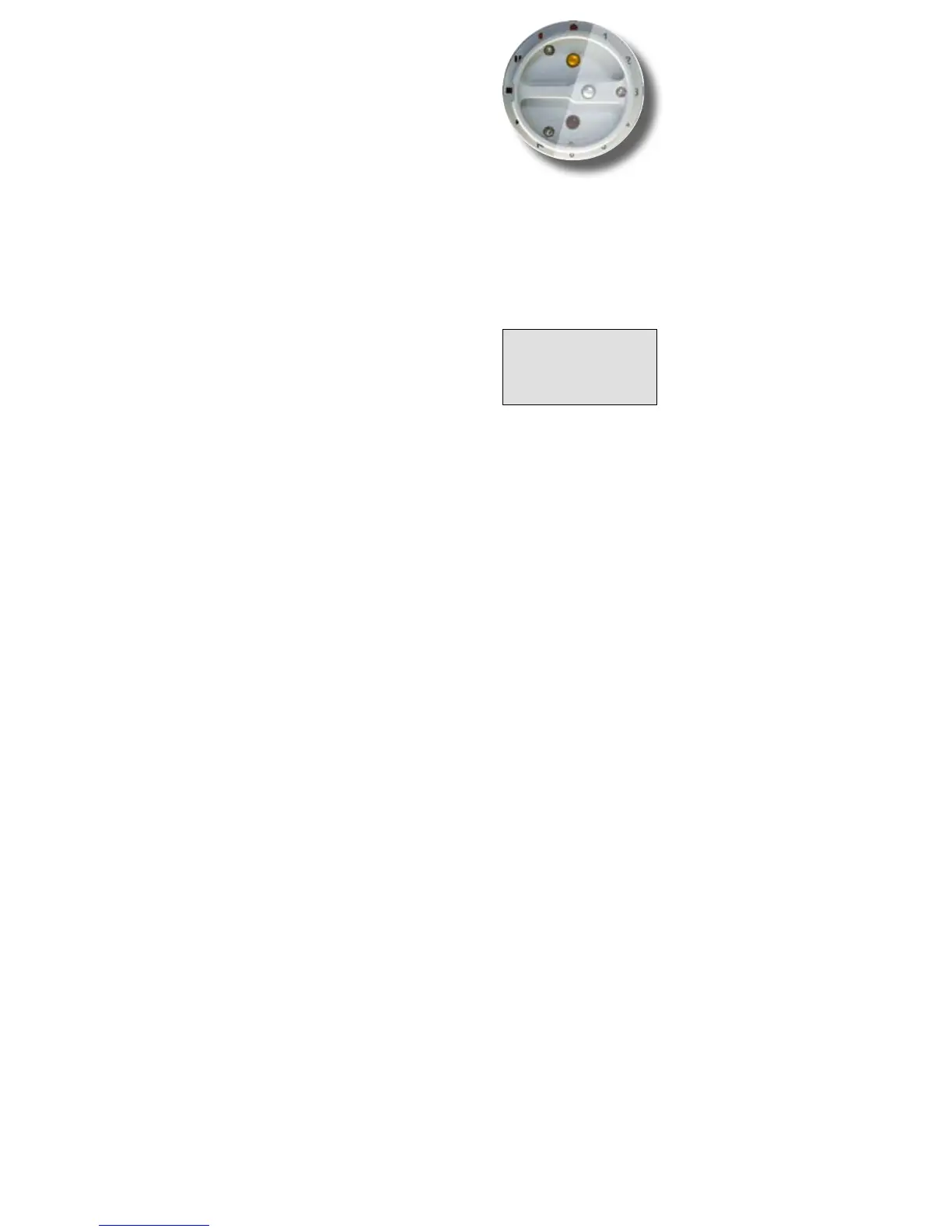

The MainSelector, easy to manipulate even with heavy
winter gloves, gives direct access to all essential func-
tions.
The OPERAND positions establish Cantar's operating pa-
rameters with no deep diving into sub-menus.
BACKUP archiving audio files. 1h
SESSION projects, disks and Sound-Report. 2h
TECHSET day-in day-out use. 3h
AUDIO/TC audio parameters/TC management 4h
IN-GRIDS inputs to tracks In-Grids 5h
OUT-MAPS outputs to monitors Out-Maps 6h
MainSelector buttons
Routings: [black] creates, [gold] removes links.
Rectangular screen rows
Operands are displayed in a way which always indicates
their path-tree. Parameters' labels and values are browsed by
[jog] and/or [>] [<] arrows.
.
Top row : Operand, Parameter #
.
Middle row : Parameter Label
.
Bottom row : Parameter Value
OPERANDS EAST POSITIONS
AUDIO/TC 01
SampleRate
48048
TECHSET p.33
01 Disk (un)mount
02 Digi in/out AES power
03/04 Save / Load Setup
05 Backlight
06 View Fader dB
07 Record beeps
08 Clip detection beep
09 Lack of ext. clock beep
10/11 Beep routing/level
12 Meter speed
13 Peak hold duration
14/15 Bat L/Bat R alert
16 HDD Power Down
17 Serial Com. port
18 Factory Reset
19 Max File Size
20 Temperature Control
21/22 System Time/Date
23/24 Equipmt IDs/License key
25/26 Software version/Load
SESSION p.36
01/02 Select/Create Project
03 HDD in Use
04 HDD & DVD format
05 Scan disk
06 Erase Day
07 to 13 Sound-Report headers
14 Column layout selection
15 to 29 A-Columns 02 to 16
BACKUP p.39
01 Save mode
02 Day to copy
03 Track selection
04/05 T1–Tx T7 T8 treatment
06 Media type
07 Burn and check
08 Files to copy
09/10 File name/Media label
11/12 Snap/Idle Sound-Report
13 Erase stored poly files
14 Run Backup
AUDIO/TC p.31
01 Sample rate
02 Bit-depth
03 Ref. tone selection
04 Talkback mic routing
05 Mixer gain max
06 Pre-record duration
07 Balance fader lock
08/09 Mic/Line fader links
10 Sc&Take template
11 AutoSlate channel
12 Record by LTC
13 TC source
14 LTC rate
15 LTC gen. output
16 LTC User-bits
17 Rec-Run TC init
18 Operator TC init
19 Digi1-8 Out
20 CantaRem com
21-36 CantaRem assign
ROUTING p.27 01 In-Grids 02 Out-Maps
