System Overview
8 Document Number: D1000092204 B

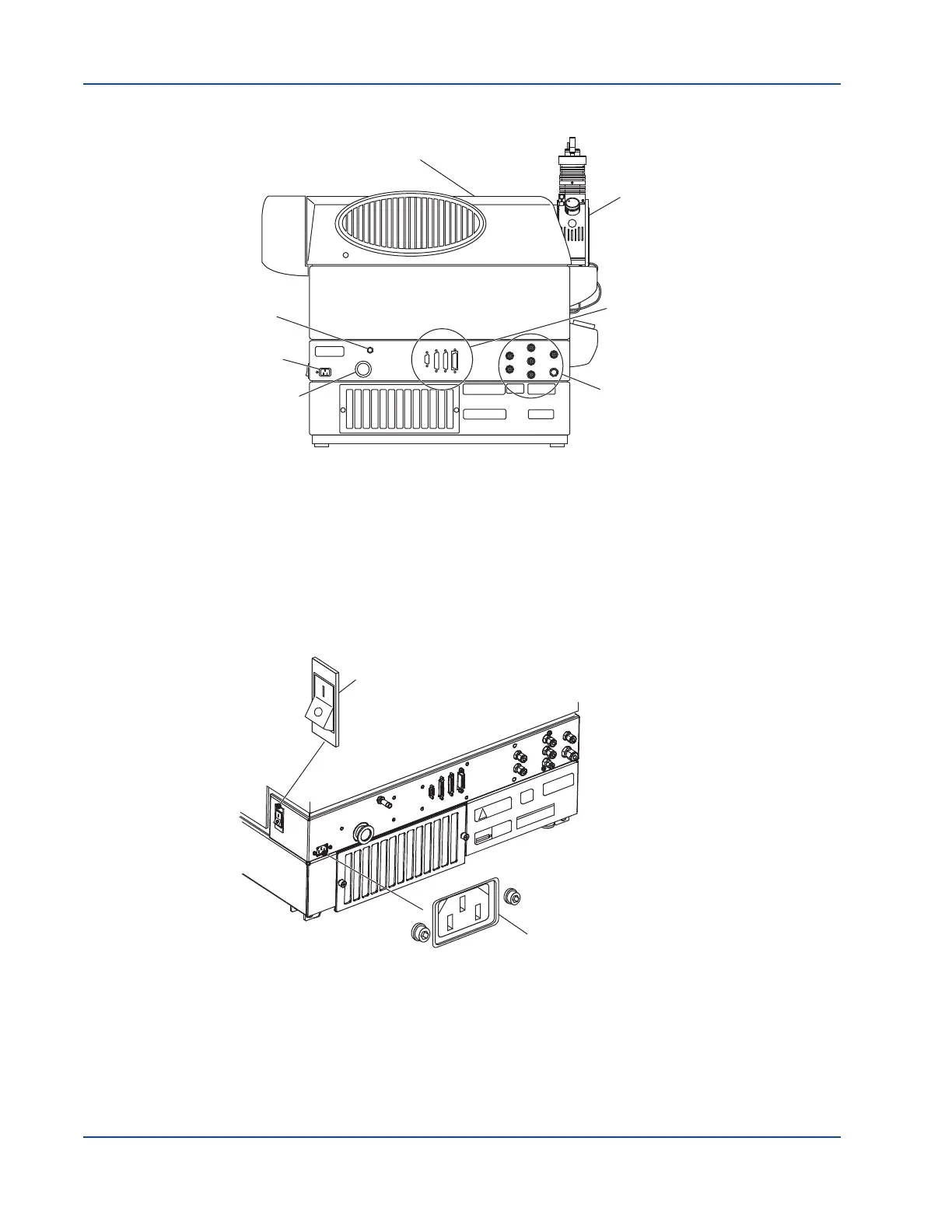

Figure 1-4 Back view
Power Controls
The API 3200™ instrument power controls are located near the back left corner
of the instrument, wherein the power distribution module is enclosed. This area
contains the main power switch and the external AC power supply outlet.
Figure 1-5 Power switch and supply
Sample Introduction Features and Status Indicators
This section describes the features and controls housed on the front left area of
the instrument, adjacent to the source housing.
SHEATH
GAS
MAX 105 PSIG
CAD
GAS
MAX 60 PSIG
VALVE
WASTE OUT
EXHAUST
WASTE OUT
CURTAINGAS
SUPPLY
Max 60 PSIG
GAS 1 / GAS 2
Max 105 PSIG
EXHAUST SUPPLY
MIN 55 PSIG MAX 60 PSIG
SERIAL
SOURCES
CAD GAS
BACKING PUMP
AUX I/O IEEE-4888
Rear View
Ion Source
Mass Spectrometer
I/O Panel
Gas Panel
Roughing
Pump
Connection
AC Power
Supply
CAD Gas
Adjustment
Valve
Main Power
Switch
207-242V
50-60 Hz 10A
External
A/C Power Supply
