WARNING!
The control unit is ready for normal
operation only after all electrical and
mechanical installation work (lighting, etc.)
has been completed!
4.0.0 COMPONENT
INSTALLATION
4.1.0 CONTROL UNIT
INSTALLATION
The sauna control unit is installed externally
on the sauna cabin wall. Open the housing.
The cover is removable.
The housing contains holes in the corners to
screw it tightly to the wall. The electrical
connection must be completed in accordance
with the relevant standards. The connection
diagram is shown in section 5.

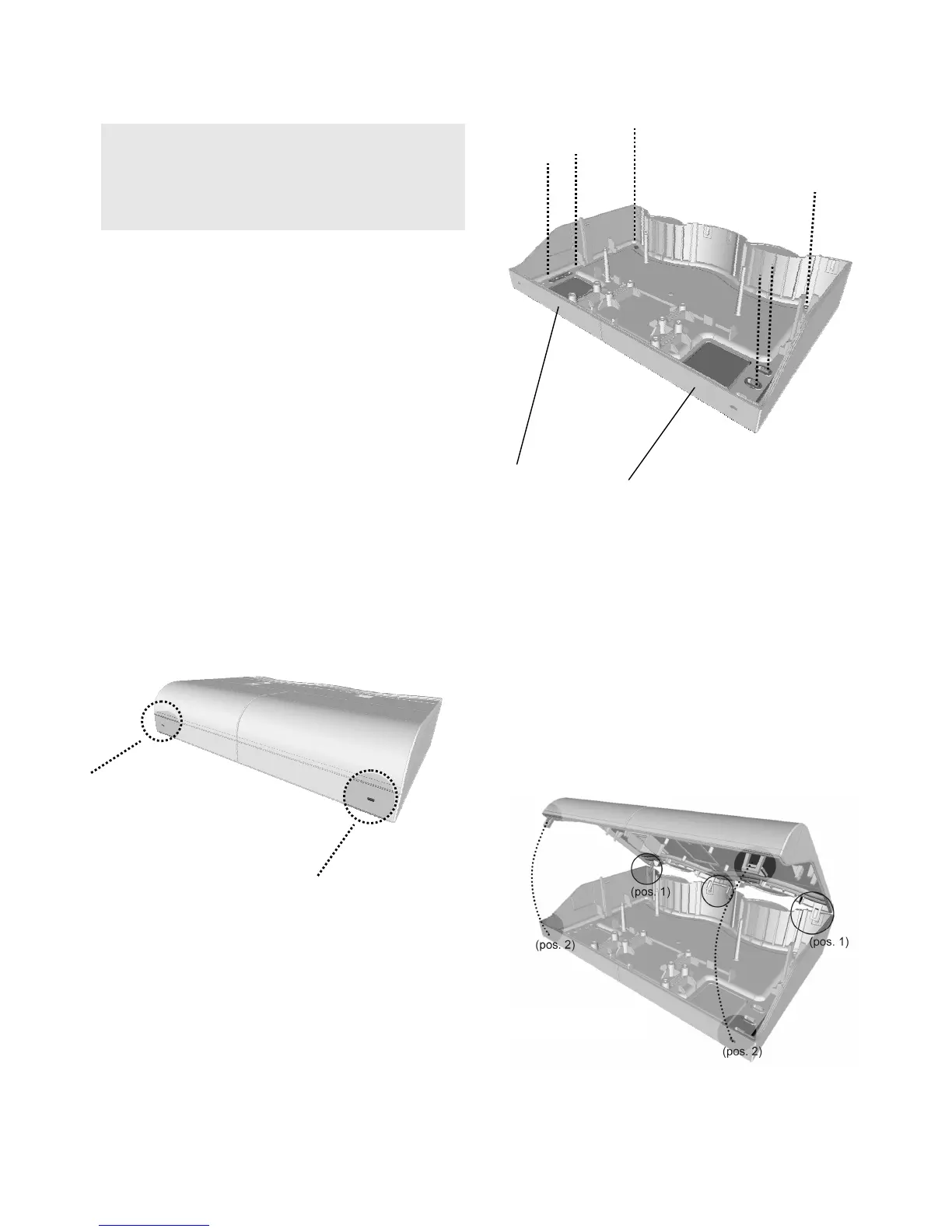

CABLE OUTLETS
For cable feed-in, use a knife to
cut respective pieces along the
depressions and then break out
the pieces.
When closing the housing, make sure that
the fixtures in the wave section (pos.1) are in
place. The housing can then be closed by
locking the fasteners at the back (pos.2).
