5 Product identification
The device is identified via the signs (plates) presented in
Fig. 1.
The certification plate (A) is on the transmitter and indicates
whether the device is designed for general use or for use in
hazardous areas.
The name plate (B) provides information including the model
number, maximum operating pressure, measuring range limits
and span limits, power supply, output signal, membrane
material, filling fluid, serial number, maximum permissible
operating pressure (PS), and maximum permissible
temperature (TS).
Please specify the serial number when submitting inquiries to
the ABB customer service department.
An additional plate (C) provides the measuring point no. of the
client and the calibration range. The device can be used as a
pressure transfer accessory (category III) as defined by the
Pressure Equipment Directive 2014/68/EU. In this case, you
will find the number of the notified body that has verified
compliance next to the CE mark.
The certification plate shown (A) has been issued for ABB-
APR, 32425 Minden, Germany and bears the following
numbers:
— FM09ATEX0068X (Ex d)
— FM09ATEX0069X (Ex ia)
— FM09ATEX0070X (Ex n)
CE identification number of the notified bodies for the
Pressure Equipment Directive: 0045, for ATEX approval: 0044.
Change from two to one column

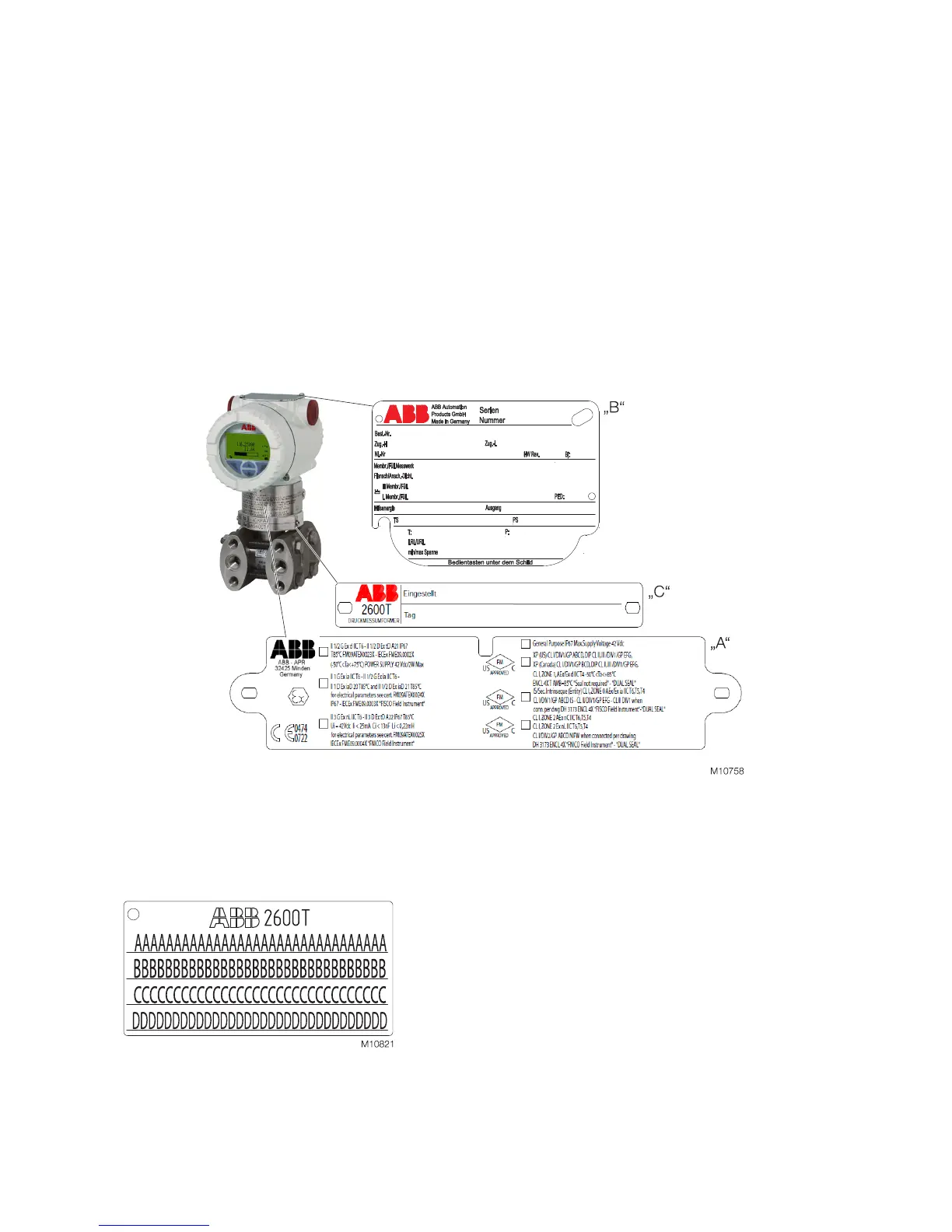

Fig. 1: Product identification
The figure shows the transmitter with barrel housing. The 266 series also includes transmitters with DIN housing.
Change from one to tw o columns
Optional stainless steel attachment plate with customer
data, fastened with wire (option code I1)
Fig. 2: Optional stainless steel attachment plate with customer
data, fastened with wire
The model 266 multiva
riable transmitter is delivered with an
optional stainless steel attachment plate with customer data
that is fastened with wire. Customer specific text that has
been specified in the purchase order is laser printed on the
attachment plate. For this, 4 lines of 32 characters each are
provided.
