22 OI/266CXX/266JXX/HART-EN Rev. B | 266CRx, 266JRx, 266CSx, 266JSx
8.6.4 Transmitter with DIN aluminum housing - horizontal flanges with mounting bracket for vertical or horizontal
mounting on 60 mm (2 in.) pipe

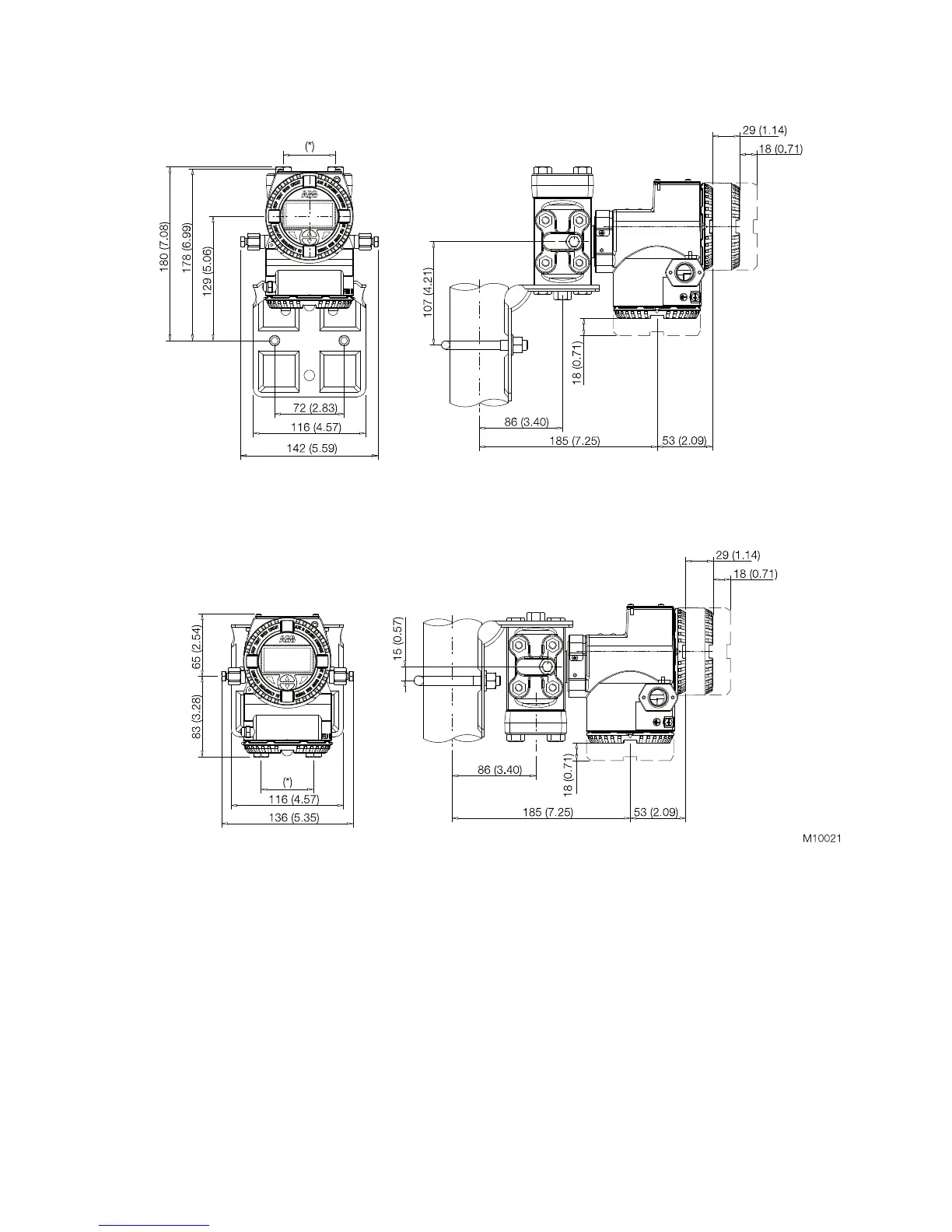

Fig. 12: Pipe mounting - DIN housing
* 54 (2.13) mm (in.) via 1/4 - 18 NPT process flanges
51 (2.01), 54 (2.13), or 57 (2.24) mm (in) via 1/2 - 14 NPT adapter flanges.
Note: Process connection and seal groove satisfy IEC 161518. Thread for attaching adapter flanges or other components (e.g., manifold) on the process flange: 7/16 -
20 UNF.

Table of Contents

Other manuals for ABB 266CSH

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ABB 266CSH and is the answer not in the manual?

ABB 266CSH Specifications

General IconGeneral
Ambient Temperature-40 to 85°C (-40 to 185°F)
Power Supply10.5 to 45 V DC
Housing MaterialAluminum or Stainless Steel
Operating Temperature-40 to 85°C (-40 to 185°F)
TypePressure Transmitter
Output Signal4 to 20 mA with HART
Process Temperature-40 to 120 °C (-40 to 248 °F)
Protection ClassIP66, IP67
Process Connection1/2" NPT
Electrical Connection1/2 - 14 NPT, M20 x 1.5
Material316L SST, Hastelloy C-276
Protection RatingIP66, IP67
