8.5 Mounting dimensions 266CRx/JRx
(No design information) - dimensions in mm (inch)
8.5.1 Transmitter with barrel housing

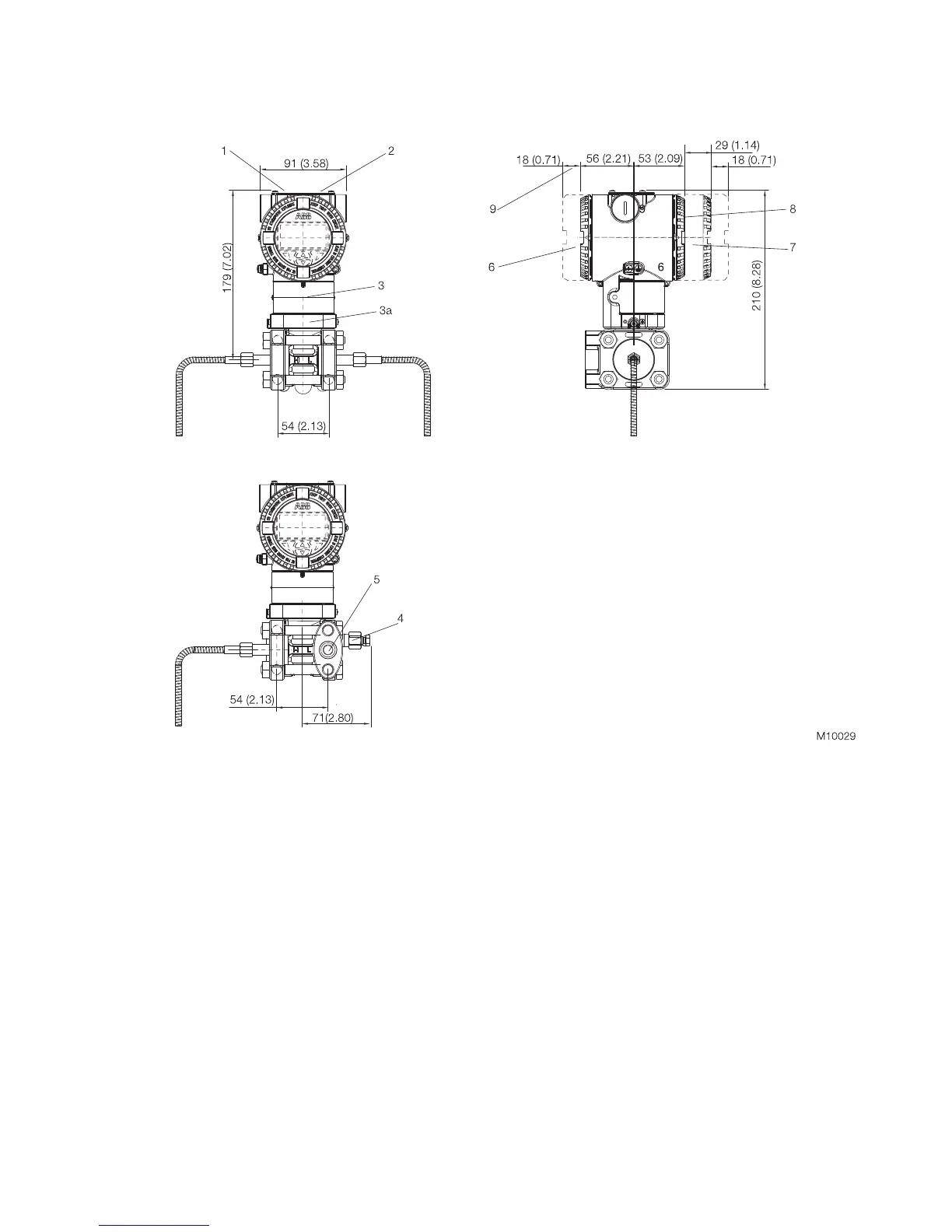

Fig. 5: Barrel housing
1 Settings | 2 Rating plate | 3 Certification plate | 3a Optional plate (code I2) | 4 Vent / drain valve |
5 Process connection | 6 Terminal side | 7 LCD display housing cover | 8 Electronics side | 9 Space for removing the cover
Note
In the case of models with just one remote seal, the threaded connection (1/4 – 18 NPT directly or 1/2 – 14 NPT using adapter)
of the standard process flange, the gasket groove, and the gasket comply with IEC 61518.
The screw-on thread for attaching the adapter flange to the process flange is 7/16 -20 UNF.
