11.5 Configuration of the pressure transmitter menu-
controlled without integrated LCD display
The LCD display is only used for visualization of the measured
values and for configuration of the display and of the
transmitter.
In addition, diagnostics messages are displayed.
11.5.1 Menu navigation

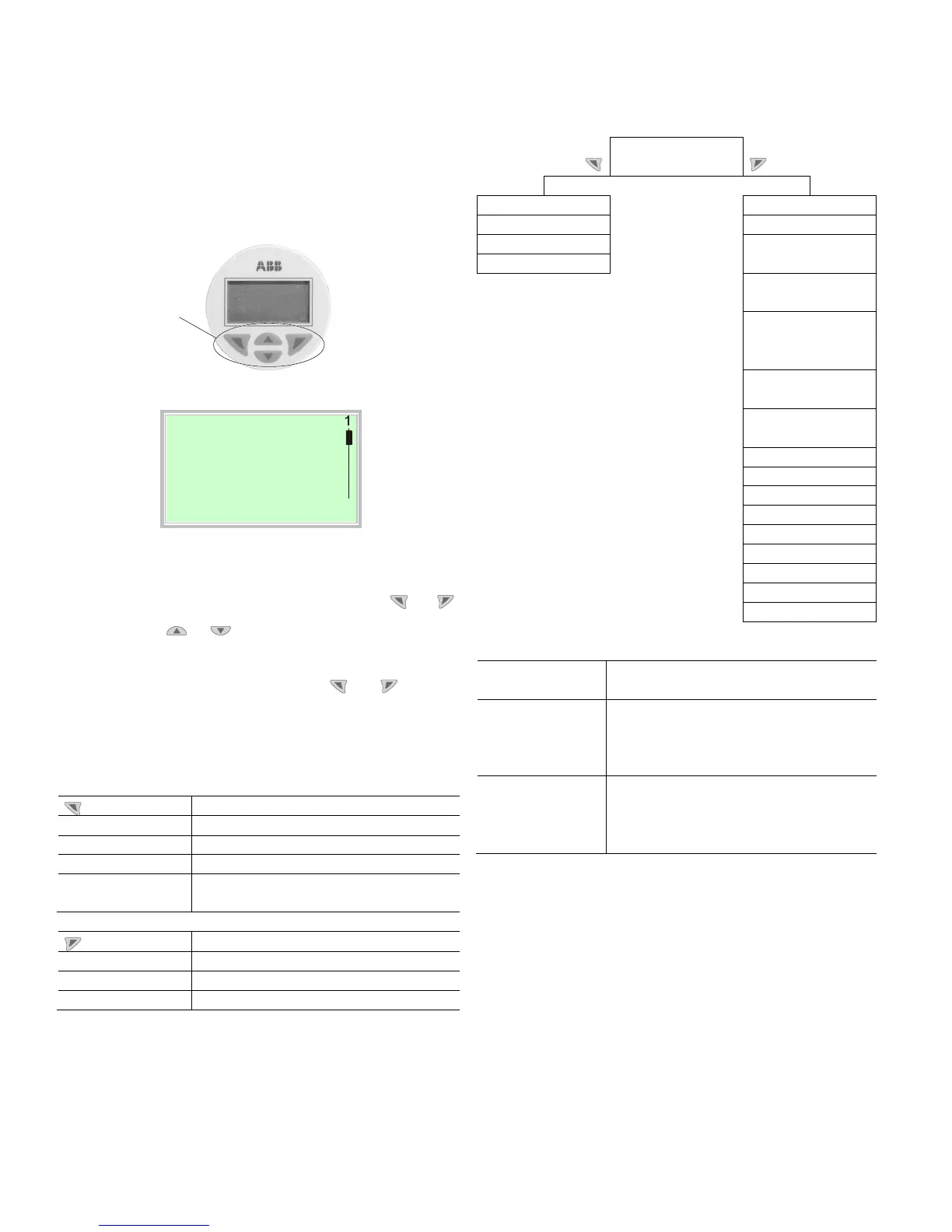

M10145
1
2
5
Menu
3
4
5
Exit Select
Fig. 31: LCD display
1 Operating buttons for menu navigation |
2 Menu name display | 3 Menu number display |
4 Mark to indicate the relative position within the menu |
5 Display of the current function of the operating buttons and
You can use the or operating buttons to browse
through the menu or select a number or character within a
parameter value.
Different functions can be assigned to the and
operating buttons. The function that is currently assigned (5) is
shown on the LCD display.
Operating button functions
Meaning
Exit
Exit menu
Back
Go back one submenu
Cancel
Cancel parameter entry
Next
Select the next position for entering numerical
and alphanumeric values
Meaning
Select
Select submenu / parameter
Edit
Edit parameter
OK
Save parameter entered
11.5.2 Menu levels
There are two levels under the process display.
Process display
Information level Configuration level
Diagnostic Easy Setup
Operator Page
MV Setup - Mass Flow
Signals View
MV Setup - open Tank
MV Setup - closed
Tank
MV Setup - Steam
Drum Level
MV Setup - 2 Remote
Seals
Device Setup
MV Overview
Display
Process Alarm
Calibration
Totalizer
Diagnostic
Device Identify
Communication
Process display The process display shows the current process
values.
Information level
The information level contains the parameters
and information that are relevant for the
operator. The device configuration cannot be
changed on this level.
Configuration level The configuration level contains all the
parameters required for device commissioning
and configuration. The device configuration can
be changed on this level.
To Next Page
