11.5.5 Easy Set-Up
The device can be factory parameterized to customer
specifications upon request. If no customer information is
available, the device is delivered with factory settings.
The setting of the most current parameters is summarized in
the "Easy Setup" menu.

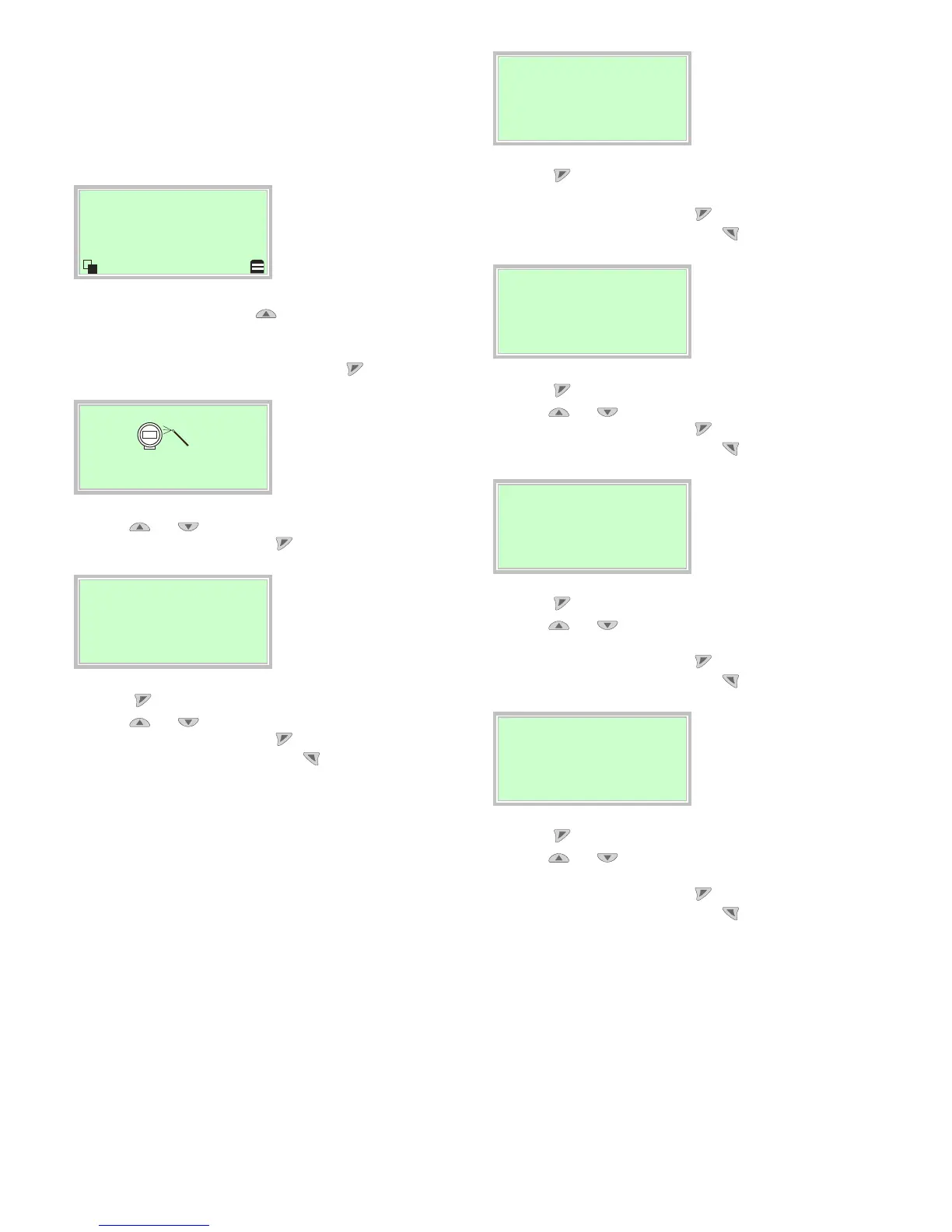

Process display
1. Press the operating key and keep it depressed until
both symbols are shown left and right in the lower process
display.
2. Change to the configuration level with .
Easy Setup
Exit Select
3. Use or to select “Easy Setup”.
4. Confirm the selection with .
Easy Setup
Language
Deutsch
Next Edit
5. Use to call up edit mode.
6. Use or to select the desired language.
7. Confirm the selection with .
8. Go to the next menu item with .
Easy Setup
Tag
A
BB266
Next Edit
9. Use to call up edit mode.
10. Enter the desired measurement point code
11. Confirm the selection with .
12. Go to the next menu item with .
Easy Setup
PV Unit
kPa
Next Edit
13. Use to call up edit mode.
14. Use or to select the desired unit.
15. Confirm the selection with .
16. Go to the next menu item with .
Easy Setup
PV Lower Range Value
0.0000 kPa
Next Edit
17. Use to call up edit mode.
18. Use or to set the start of the measurement range
(LRV).
19. Confirm the selection with .
20. Go to the next menu item with .
Easy Setup
PV Upper Range Value
0.0000 kPa
Next Edit
21. Use to call up edit mode.
22. Use or to set the end of the measuring range
(URV).
23. Confirm the selection with .
24. Go to the next menu item with .
