Operation Manual / A130-M.. - A145-M..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4031_EN
Rev.N
March 2021

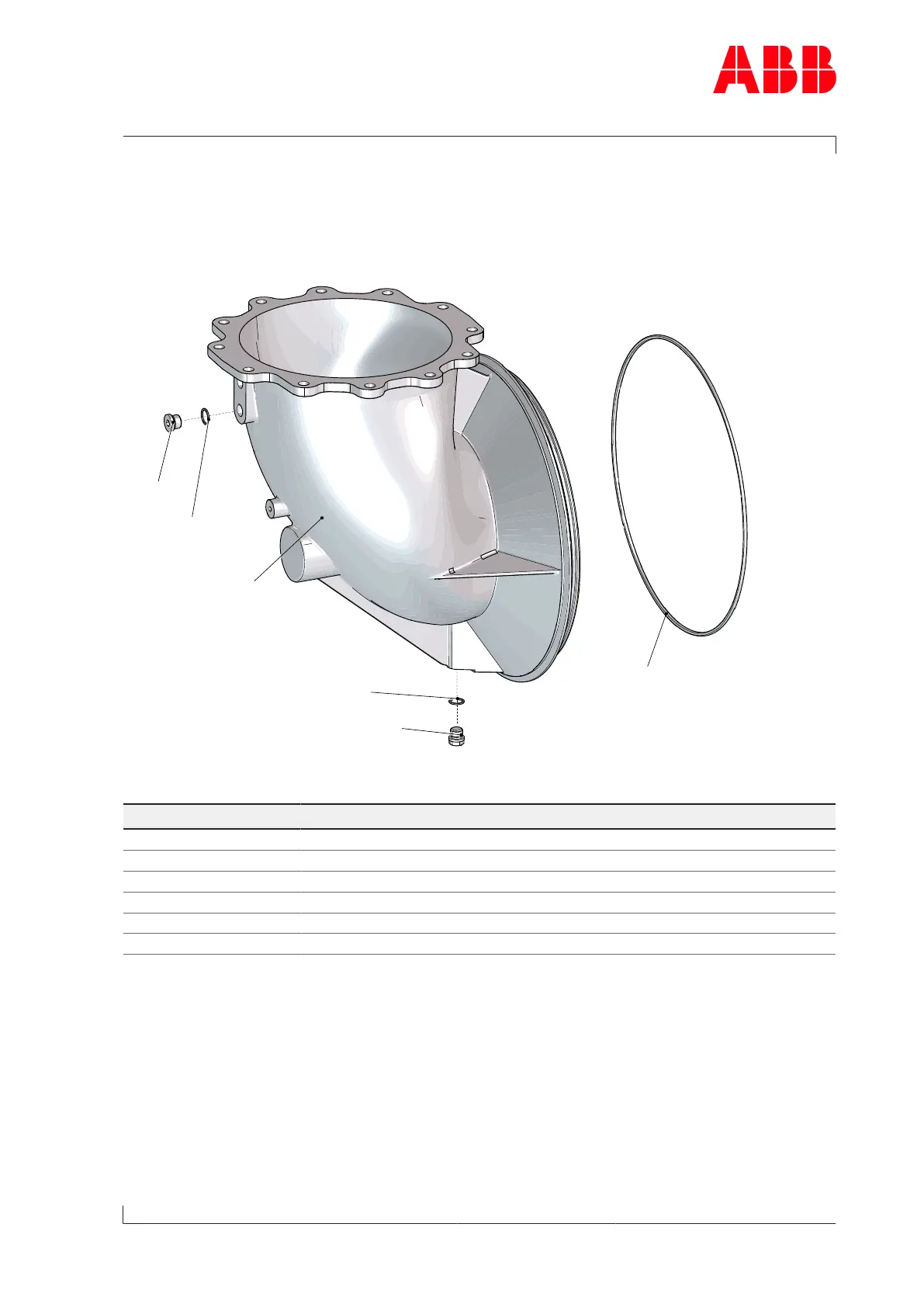

Air suction branch radial
82010*
82005
82006
82000
82008
82007
* = Av
ailable within the spare part set
HZTL443012 Mod. D
Part no.
Designation
82000
Air suction branch
82005
Screw plug
82006
Gasket
82007
Screw plug
82008
Gasket
82010*
O-ring
Table60: Spare parts - Air suction branch radial
Page 141 / 149
142
144
