ABB A165-L Series - Fitting the Filter Silencer with Noise Package; Fig. 61: Fitting the Filter Silencer with Noise Package; Table 43: Tightening Torque (51087)

Operation Manual / A100-L
9 Disassembly and assembly / 9.23 Fitting the filter silencer with noise
package
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
9.23 Fitting the filter silencer with noise package
The following work steps apply to both the welded and cast versions of the filter silencer.
Before fitting ensure that the individual sealing segments of the gasket (81301) and the gas-
ket(74042) are not damaged and that the contact surfaces are clean.

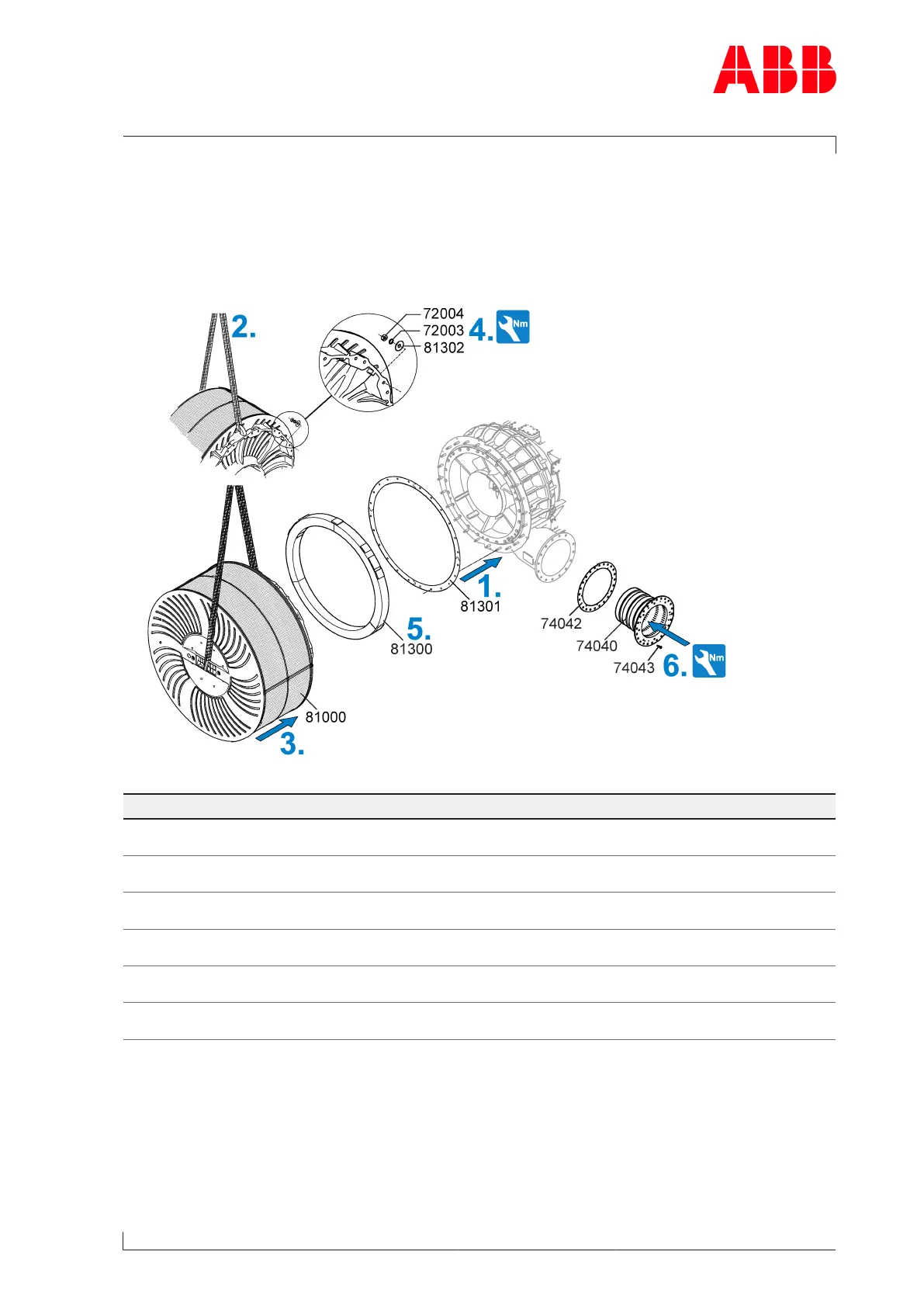

Fig.61: Fitting the filter silencer with noise package
Product 72004 [Nm] 72043 [Nm]
A165-L M14
130Nm
M10
45Nm
A170-L M16
200Nm
M10
45Nm
A175-L M18
300Nm
M10
45Nm
A180-L M20
420Nm
M10
45Nm
A185-L M22
570Nm
M10
45Nm
A190-L M24
710Nm
M10
45Nm
Table43: Tightening torque (51087)
Page 103 / 141
