ABB A165-L Series - Dismantling the Nozzle Ring (≥ A180-L); Fig. 46: Fitting the Nozzle Ring Holder

Operation Manual / A100-L
9 Disassembly and assembly / 9.13 Dismantling the nozzle ring (≥ A180-
L)
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
9.13 Dismantling the nozzle ring (
≥
A180-L)

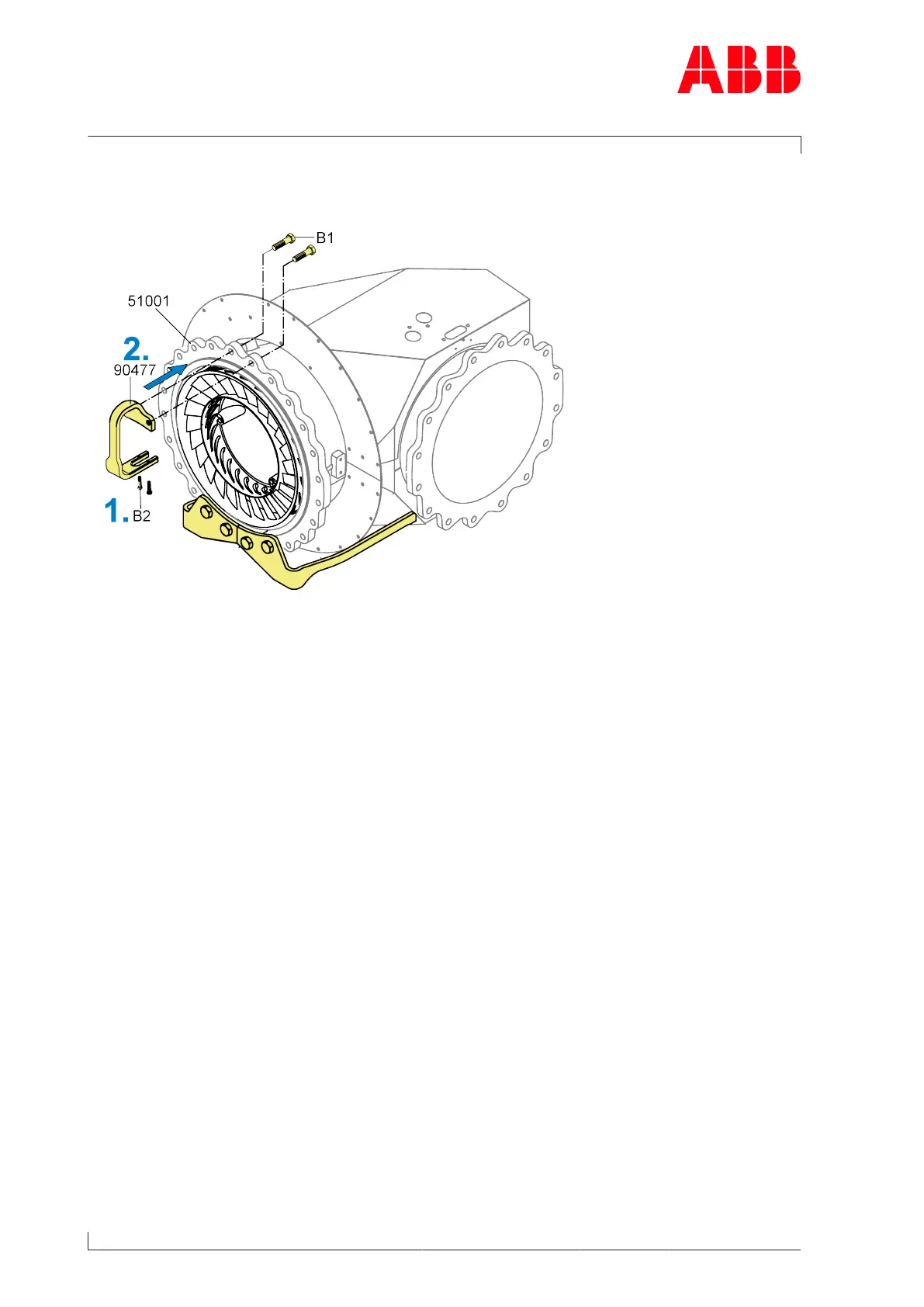

Fig.46: Fitting the nozzle ring holder
1. Remove screws (B
2
).
2. Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
