ABB A165-L Series - Locations of the Rating Plates; Fig. 2: Locations of the Rating Plates

Operation Manual / A100-L
1 Introduction / 1.4 Locations of the rating plates
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
1.4 Locations of the rating plates

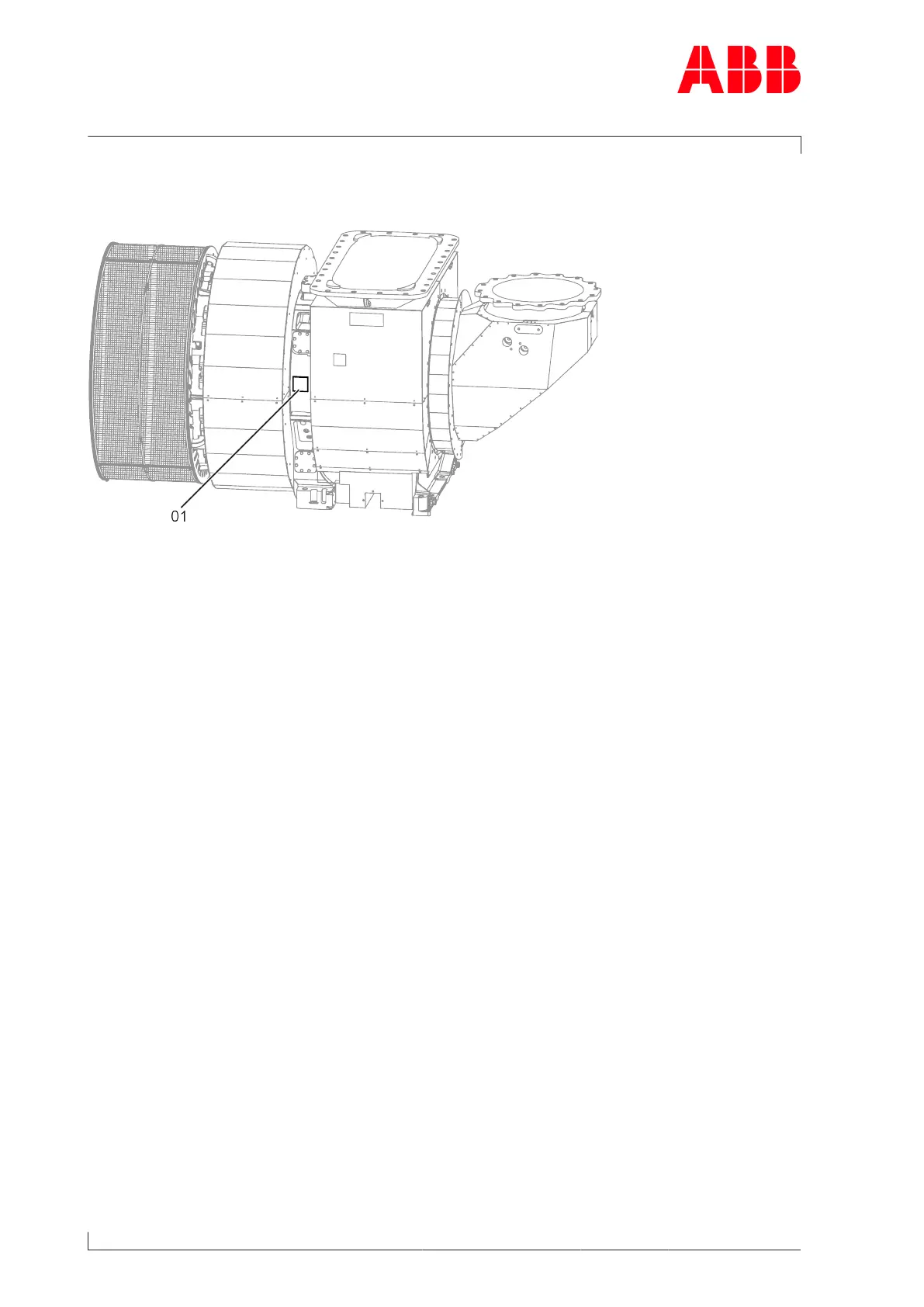

Fig.2: Locations of the rating plates
One rating plate (01) each is attached on the left and the right side of the turbocharger bear-
ing casing.
Page 8 / 141
