ABB A165-L Series - Fig. 37: Moving out Wall Insert; Fig. 38: Putting down Wall Insert

Operation Manual / A100-L
9 Disassembly and assembly / 9.7 Dismantling wall insert and diffuser
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

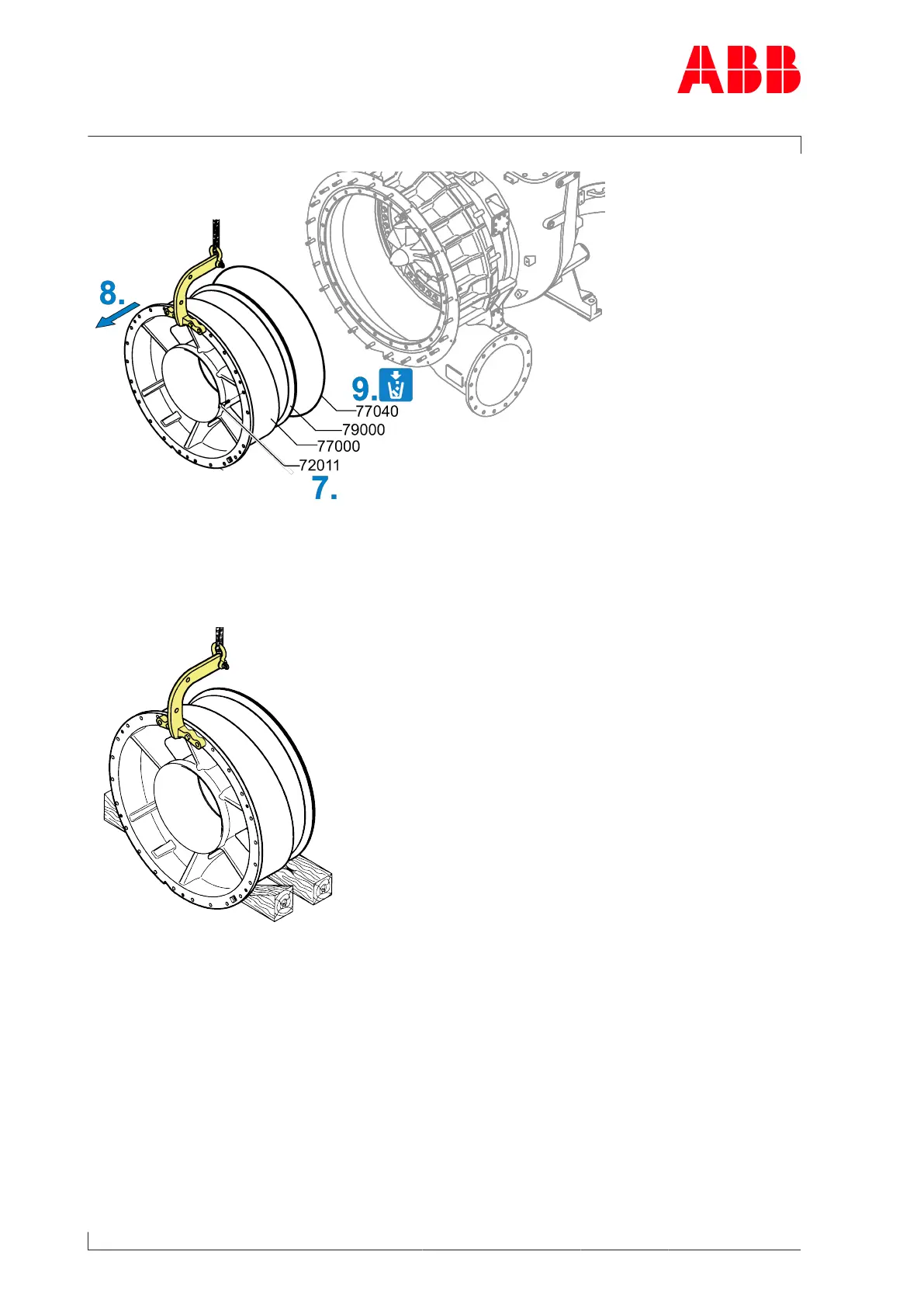

Fig.37: Moving out wall insert
7. Remove screw(72011).
8. Carefully move out the wall insert(77000) with diffuser(79000).
9. Remove O-ring(77040).
Fig.38: Putting down wall insert
u Put down wall insert(77000) with diffuser(79000) in horizontal position and use appro-
priate supports to prevent it from falling over and rolling away.
Page 80 / 141
