ABB A165-L Series - Fig. 47: Dismantling the Nozzle Ring; Fig. 48: Put down the Nozzle Ring

Operation Manual / A100-L
9 Disassembly and assembly / 9.13 Dismantling the nozzle ring (≥ A180-
L)
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

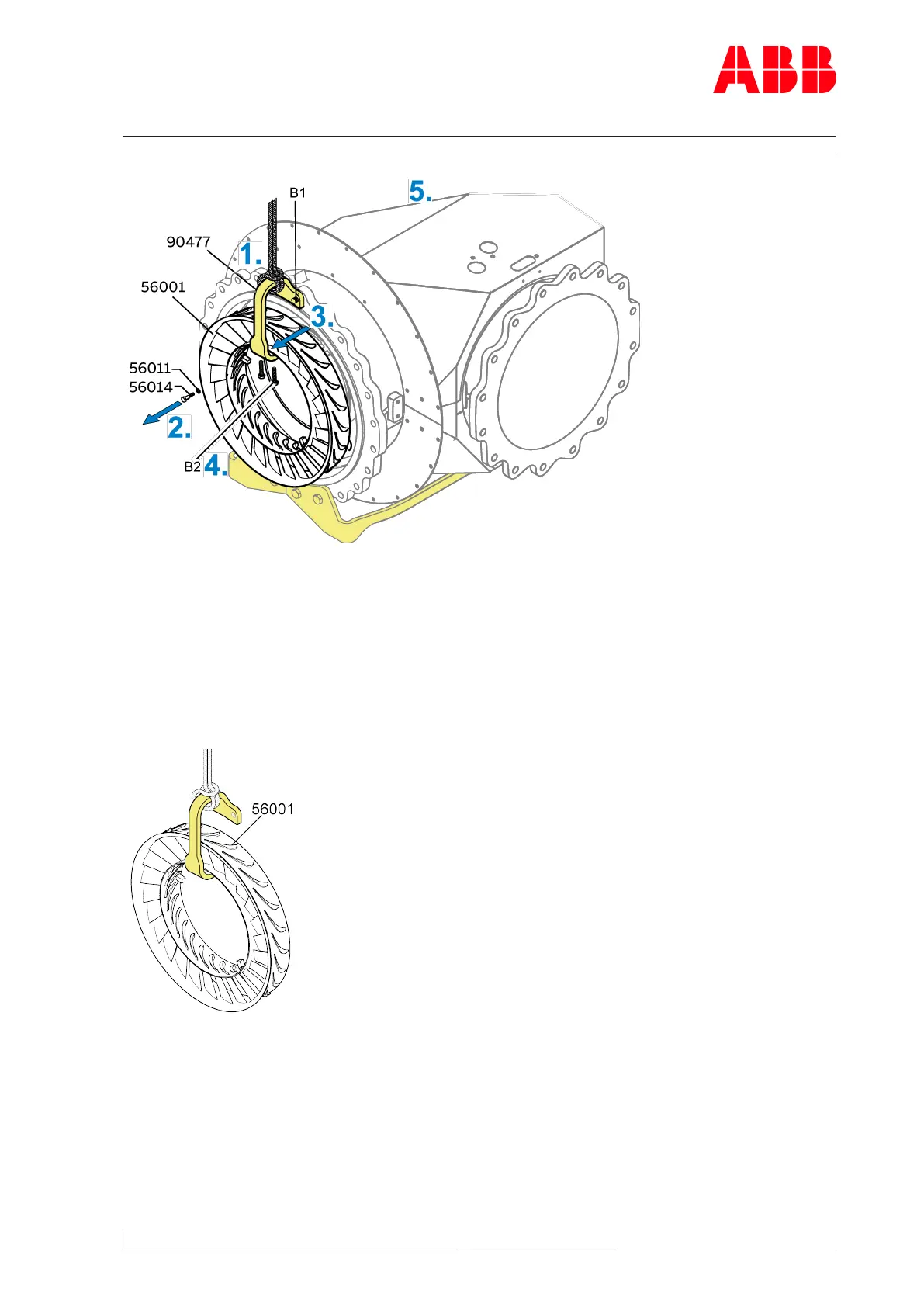

Fig.47: Dismantling the nozzle ring
1. Loop around the nozzle ring holder(90477) with the lifting gear and secure it to the
crane.
2. Loosen screws(56014) and remove with washers(56011).
3. Pull the nozzle ring(56001) towards the front onto the nozzle ring holder.
4. Screw the screws (B
2
) into the nozzle ring holder.
5. Remove screws(B
1
).
Fig.48: Put down the nozzle ring
u Use the crane to remove and put down the nozzle ring (56001).
Page 89 / 141
