ABB AC 800M

TK853 Appendix A Hardware Units
198 3BSE 027 941 R301
TK853
Technical Data
Table 61. TK853 – Technical Data
Item Value
Connectors • One 9-pole male D-sub (DE9P)
• One 8-pole RJ45 plug
Weight 100 g (0.2 lb) (TK853V02)
Length 2.0 m (6.56’) (TK853V02)

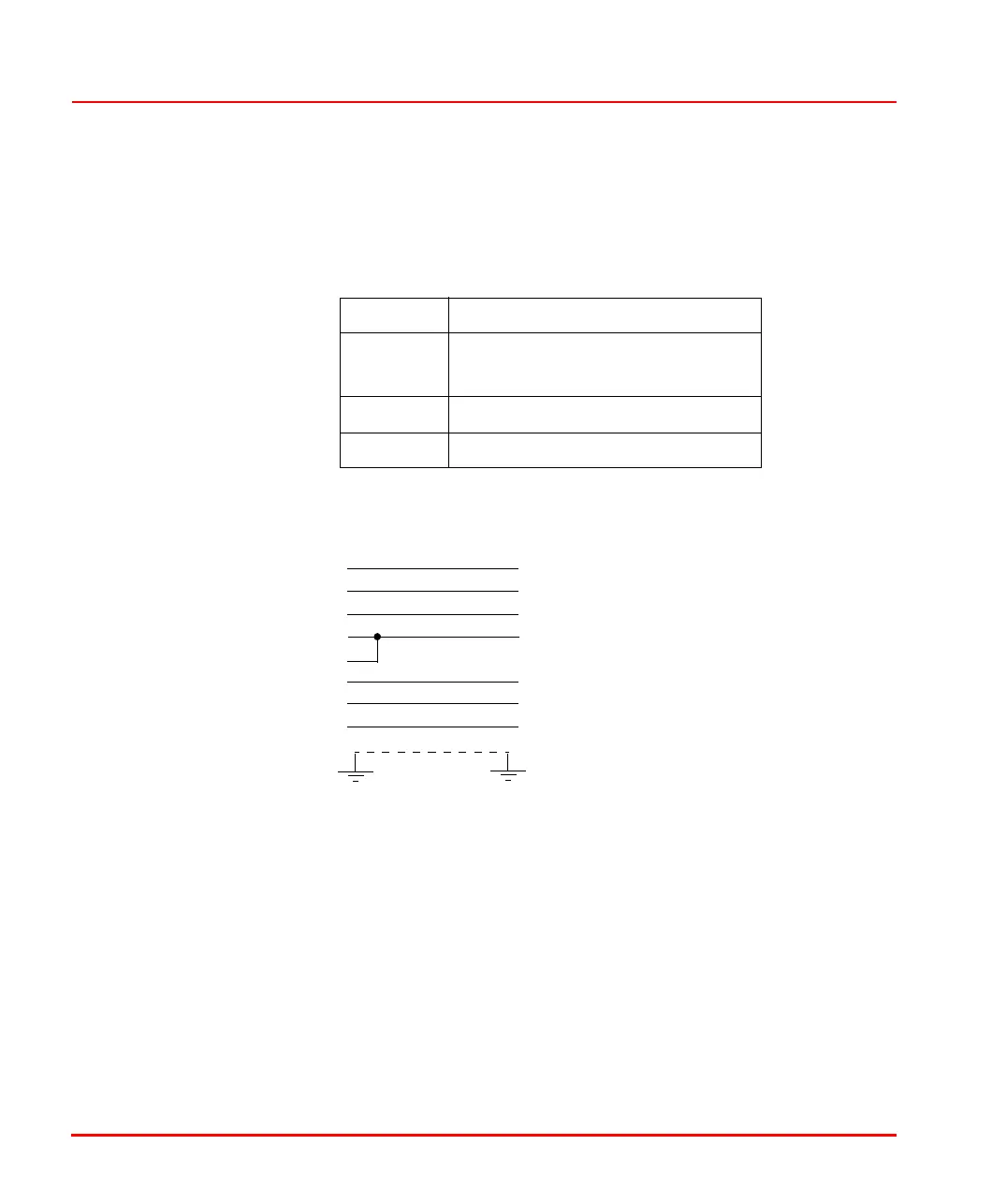

Figure 52. TK853 – Cable Characteristics
7 RTS
4 DTR
3 TD
5 0 V
2 RD
1 DCD
8 CTS
Shield
AC 800M
RJ45 plug
Modem
Male 9-pole,
D-sub connector (DE9P)
RTS
DTR
TD
0 V
0 V
RD
DCD
CTS
Shield
1
2
3
4
5
6
7
8
