CI851 and TP851 – PROFIBUS DP Interface
Key Features
• Provides one PROFIBUS DP port, (a DB9 female
connector located on the TP851 Baseplate).
• Simple DIN-rail mounting
• The CI851 handles cyclic read and write messages
to the slaves on the PROFIBUS DP. The minimum
cycle time can be 1 ms, however, but this will
depend on the baud rate used and the number of
attached slaves.
• By using repeaters it is possible to connect a
maximum of 124 nodes to one PROFIBUS DP (32
nodes are permitted on one segment).
• Pre-set, two-letter Alpha code locking device
installed in unit base prevents mounting of
incompatible components.
Description
The CI851 / TP851 is used for connecting to remote I/O.
Via an external gateway on PROFIBUS DP, field
instruments (on PROFIBUS DP) can be connected to AC
800M. The TP851 Baseplate has one female DB9
connector for connecting PROFIBUS DP. The baseplate
has a code lock, see Table 6 on page 54, that prevents the
installation of an incorrect type of unit onto the TP851
Baseplate.
The CI851 expansion unit contains the CEX-bus logic, a communication unit and a
DC/DC converter that supplies appropriate voltages from the +24V supply, via the
CEX-bus. The PROFIBUS DP must always be terminated at the two outer nodes.
ABB recommends the use of connectors with built-in termination since the fieldbus
will always be terminated even if fully disconnected from the unit.

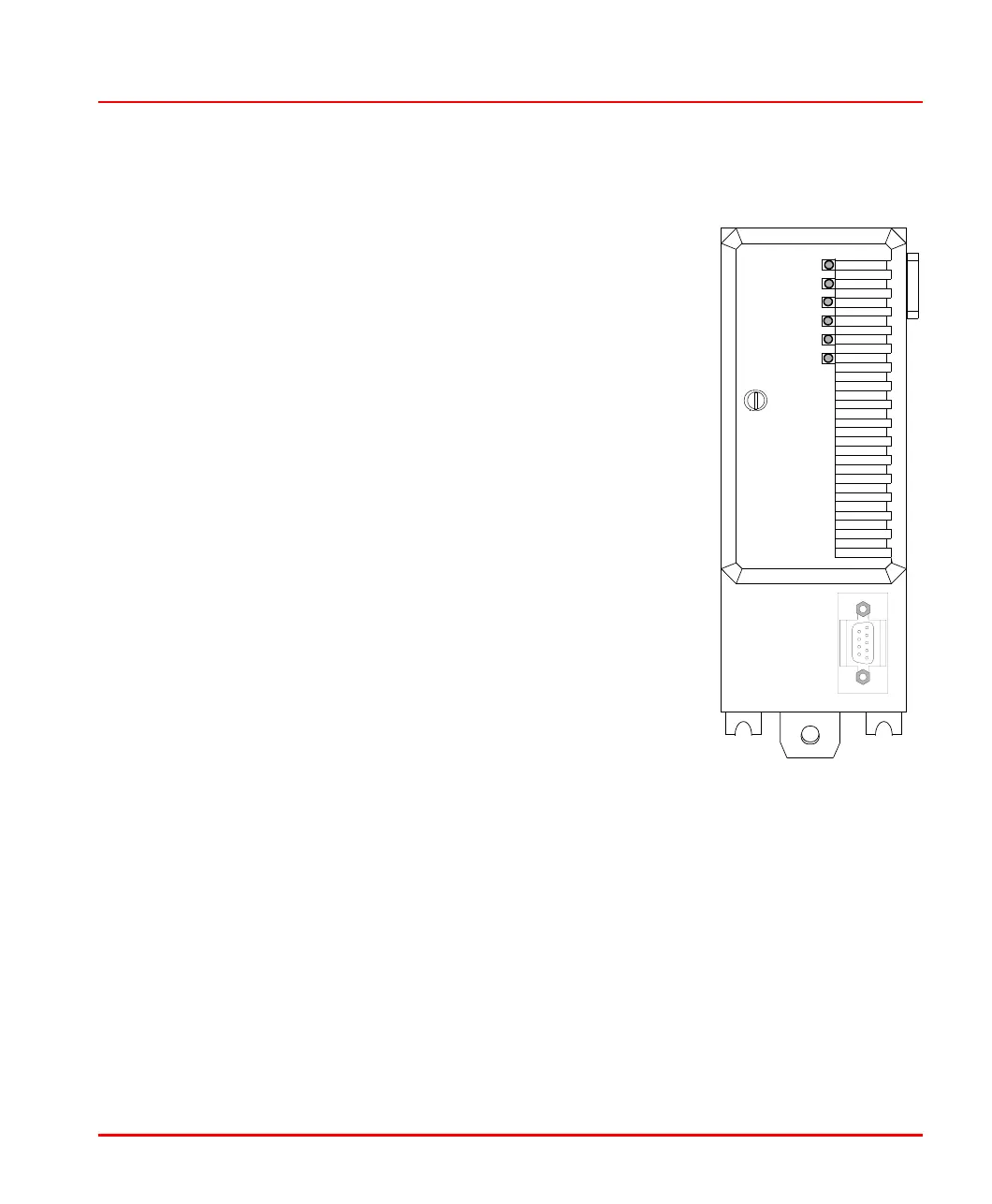

F
R
Rx/Tx
RTS
CI851
