3009 STALL FUNCTION
This parameter defines the operation of the stall protection. The protection is
activated if the output current becomes too high compared to output frequency,
refer to Figure 11.
0 =
NOT SEL
Stall protection is not used.
1 =
FAULT
When the protection is activated the ACS140 coasts to stop. Fault indication is
displayed.
2 =
WARNING
A warning indication is displayed. The indication disappears in half the time set
by parameter 3012
STALL TIME.

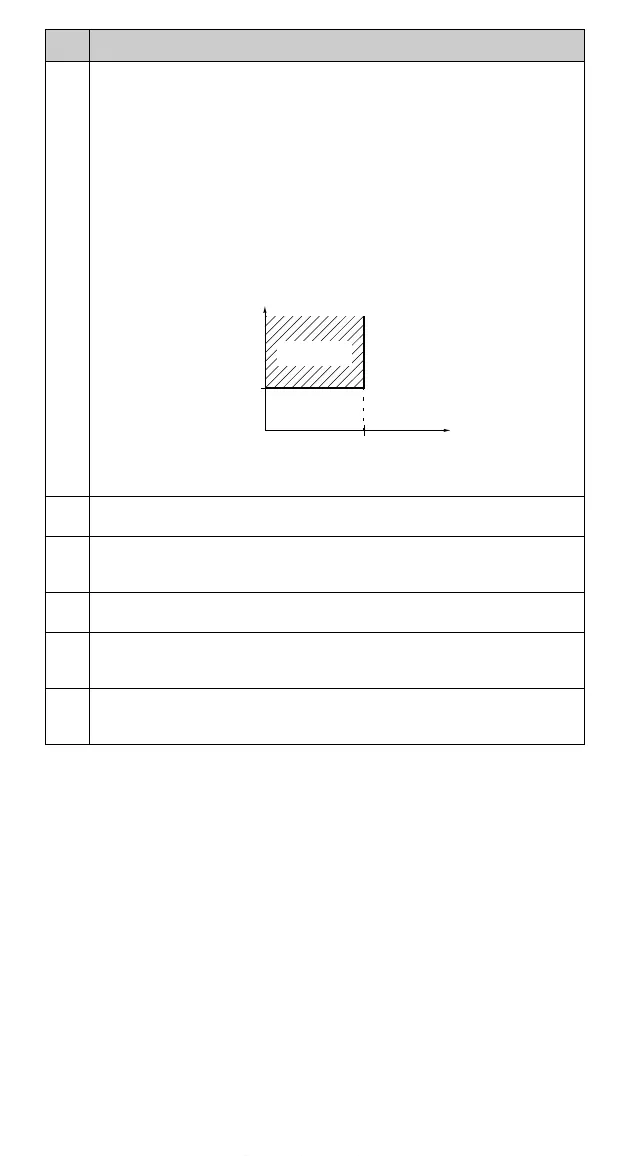

Figure 11 Motor stall protection.
3010 STALL CURRENT
Current limit for stall protection. Refer to Figure 11.
3011 STALL FREQ HI
This parameter sets the frequency value for the stall function.
Refer to Figure 11.
3012 STALL TIME
This parameter sets the time value for the stall function.
3013 AI1 FAULT LIMIT
Fault level for analogue input 1 supervision.
See parameter 3001
AI<MIN FUNCTION.
3014 AI2 FAULT LIMIT
Fault level for analogue input 2 supervision.
See parameter 3001
AI<MIN FUNCTION.
Code Description
I
OUT
3010 STALL CURRENT
Stall region
ƒ
3011
STALL FREQ HI
