Maintenance 101
Fan replacement (R6)
Note: In -0205-3 and 0255-5 units, access the fan through the opening in the support
frame of the cable connection box.

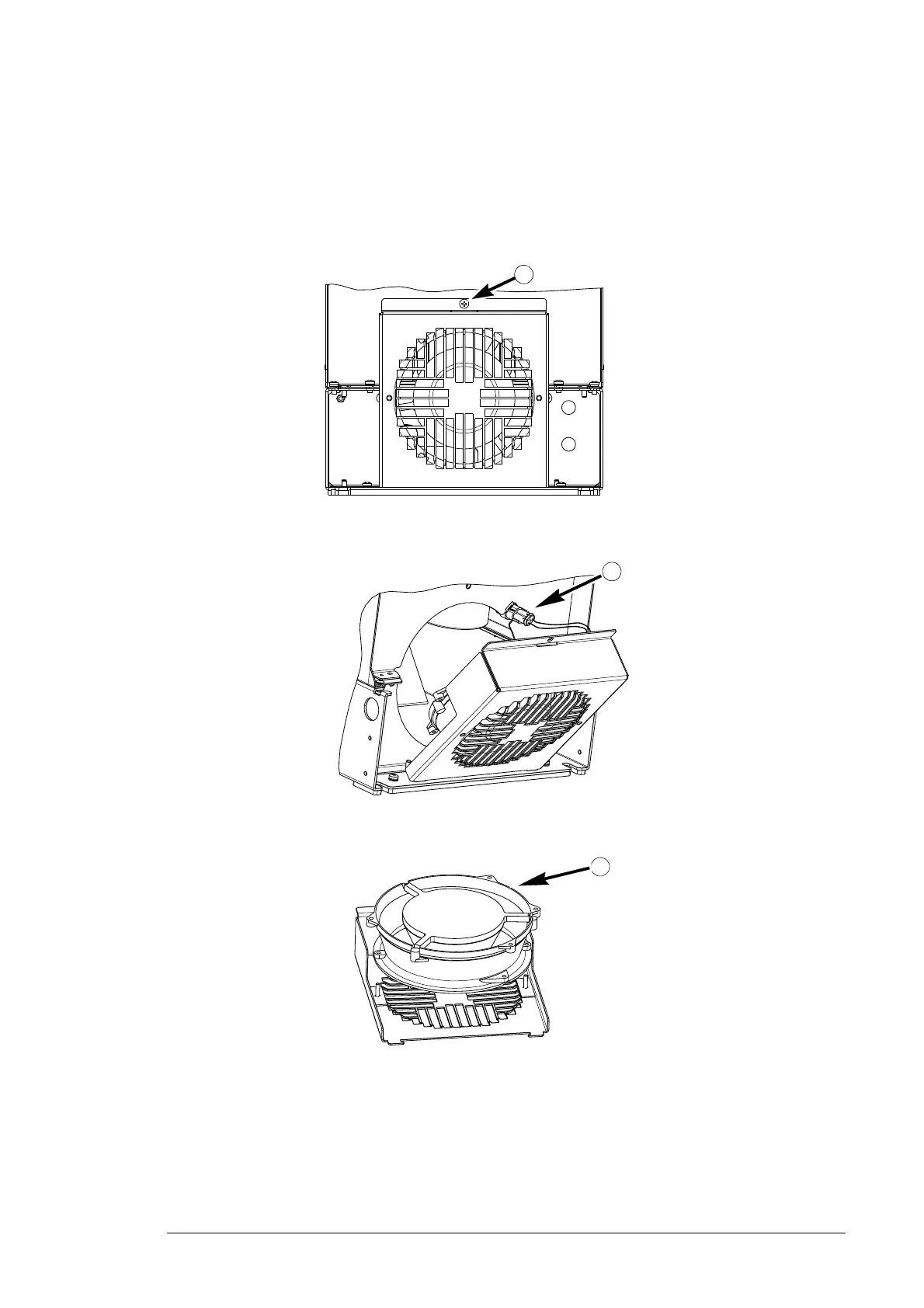

1. Remove the screw that attaches the fan casing and let the casing lean down
against the limiters.
2. Slide the cable connector out and disconnect it.
3. Take off the casing and replace the fan onto the casing pins.
4. Reinstall the casing in reverse order.
