ABB ACS800-U1 - Frame Size R6

Electrical installation 69
Frame size R6

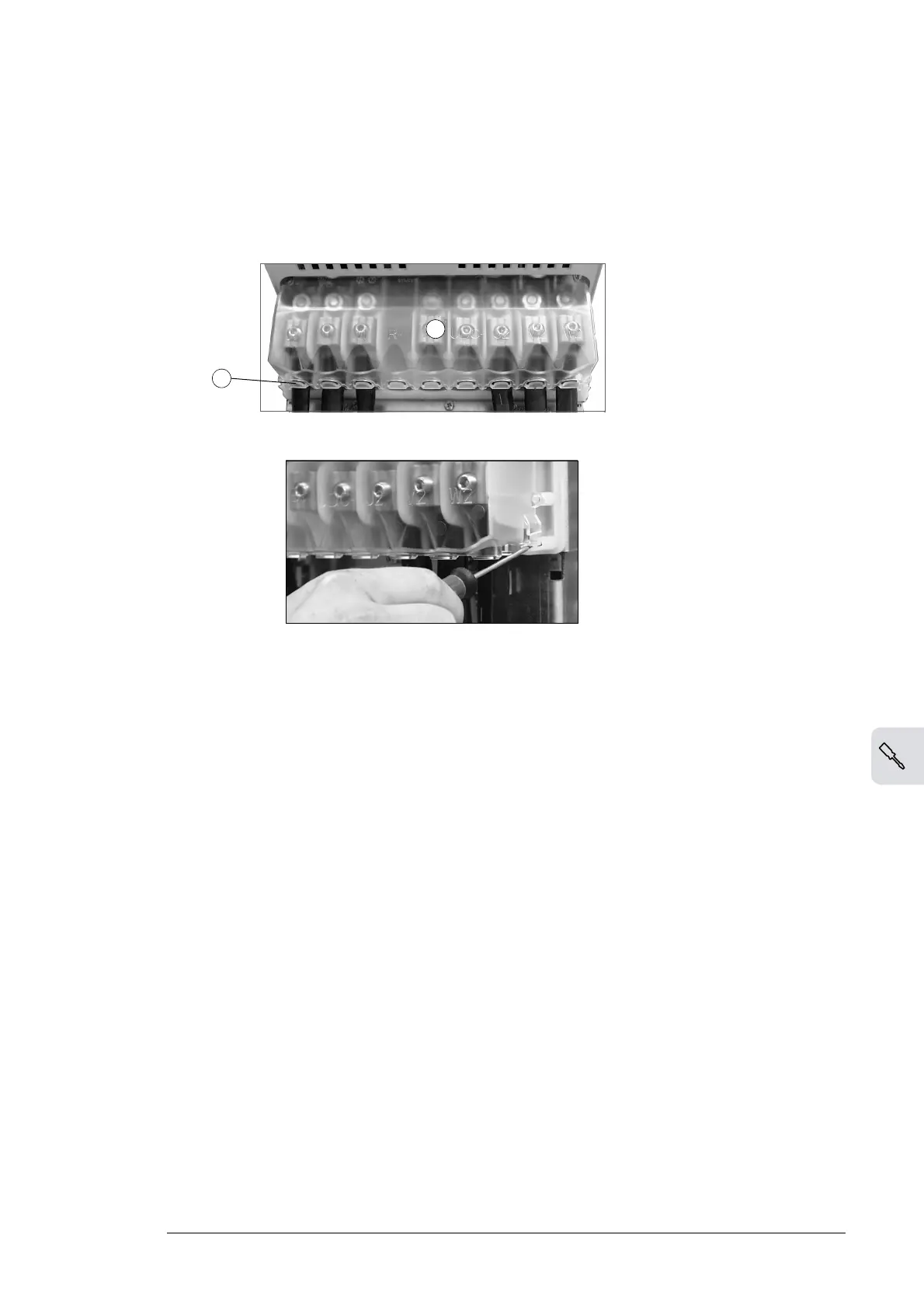

Cover the power cable terminals as follows:
1. Cut holes for the installed cables into the clear plastic shroud in cable lug
installations.
2. Press the shroud onto the terminals.
Removal of the shroud by lifting up with a screw driver from the corner:
2
1
View of cable terminal
installation
