76 Installation of the AGPS board (Prevention of unexpected start-up, +Q950)
WARNING! The supply voltage for the AGPS board is 230 V AC. If the board
is supplied with 24 V DC, the board is damaged and it needs to be replaced.

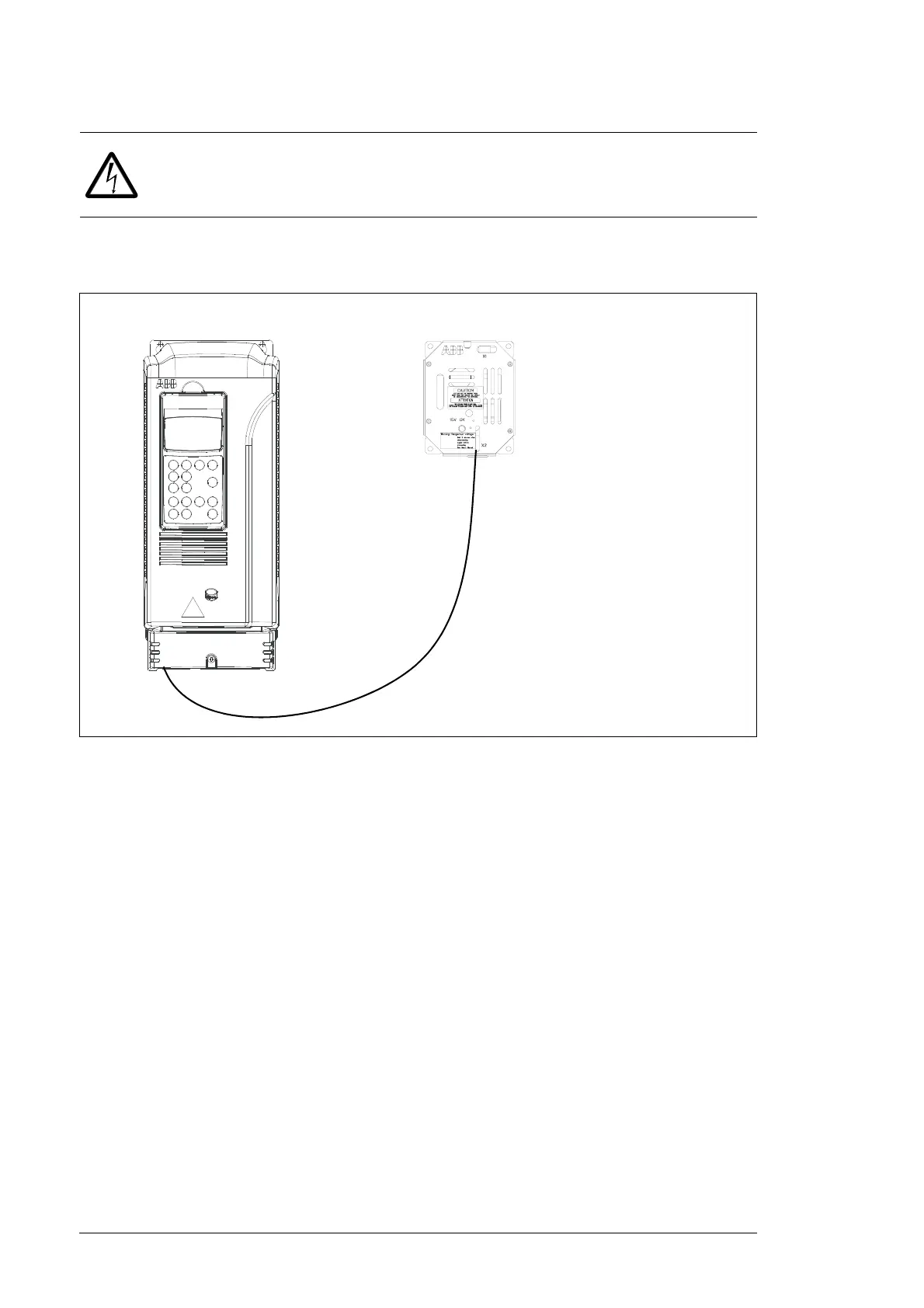

The following figure shows how the external AGPS board is connected to the drive.
The cable (length 3 m [10 ft]) is delivered with the AGPS board.
See
• page 70 for the location of terminal X41 of the drive.
• page 78 for the circuit diagram.
• page 159
for the dimensions of the AGPS board.
• page 125
for the technical data of the AGPS-11C board.
