ABB ACS880+N5350 - Page 204

Dimensions B-53AXD50000011888

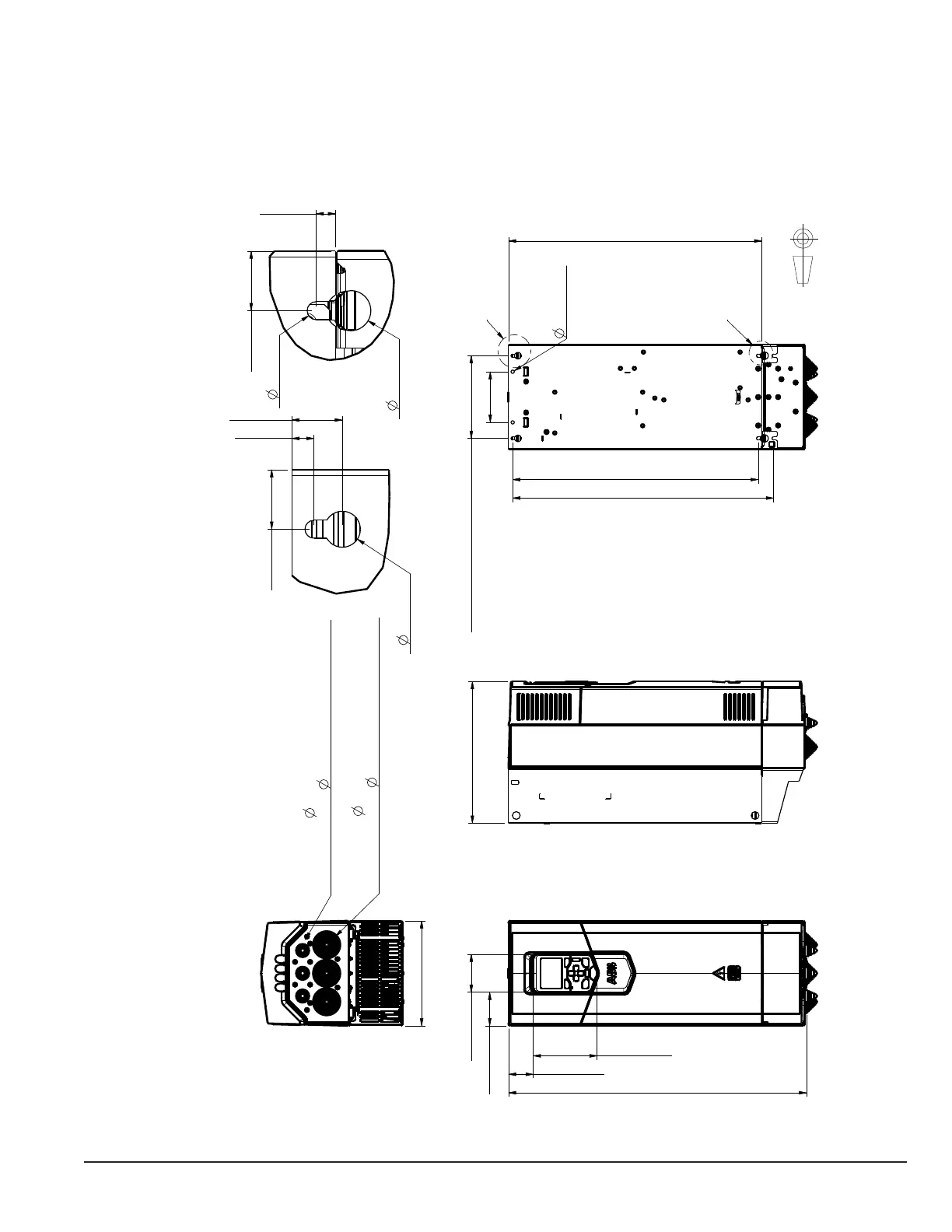

Figure B-4 Frame R4 (IP21, UL Type 1)
Frame R4 (IP21, UL Type 1)
65[2.55]
74[2.90]
576[22.69]
48[1.89]
124[4.86]
274[10.80]
160[6.30]
SUGGESTED MOUNTING HOLES
98[3.86]
475[18.70]
SUGGESTED MOUNTING HOLES
505[19.88]
490[19.291]
WITHOUT GLAND BOX
7 .26[ ]
203[7.99]
13 .51[ ]
22[.85]
8[.32]
18[.72]
7 .26[ ]
15 .57[ ]
22[.85]
7[.28]
PLATE HOLE 44 [1.73] (3pcs.)
GROMMET UP TO
24 [0.94] CABLE DIAMETER
PLATE HOLE
22 [0.87] (3pcs.)
GROMMET UP TO
15 [0.59] CABLE DIAMETER
A
B
A
B
3AUA0000098285
