ABB Adam DYN-Info M12-5 User Manual

2TLC172271M0201 Rev.H 11
Adam DYN-Reset M12-5
Adam DYN-Status M12-5
Note!
The use of shielded cable is
recommended for enhanced electromagnetic
immunity.
Caution
!
All cable colors according to ABB standard cables
.

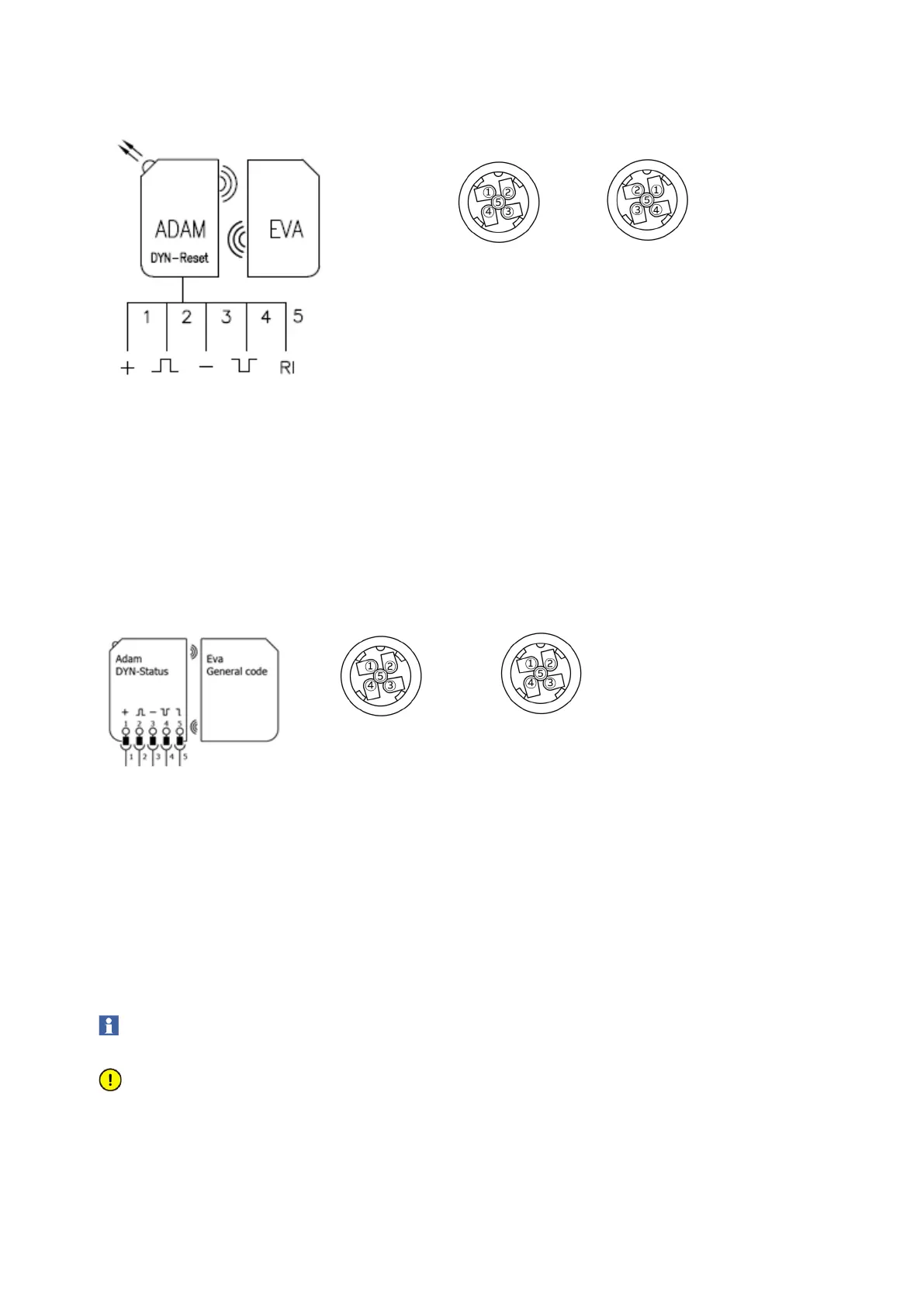

M12-connector:
(5-pole male)
1) Brown: +24 VDC
2) White: DYNlink signal in
3) Blue: 0 VDC
4) Black: DYNlink signal out
5) Grey: Reset/Indication
M12 5-pole male
from cable side
M12 5-pole female
from cable side
M12 5-pole male
from cable side
M12 5-pole female
from cable side
M12-connector:
(5-pole male)
1) Brown: +24 VDC
2) White: DYNlink signal in
3) Blue: 0 VDC
4) Black: DYNlink signal out
5) Grey: Info/StatusBus

ABB Adam DYN-Info M12-5 Specifications

General

Brand	ABB
Model	Adam DYN-Info M12-5
Category	Security Sensors
Language	English
