2TLC172271M0201 Rev.H 19

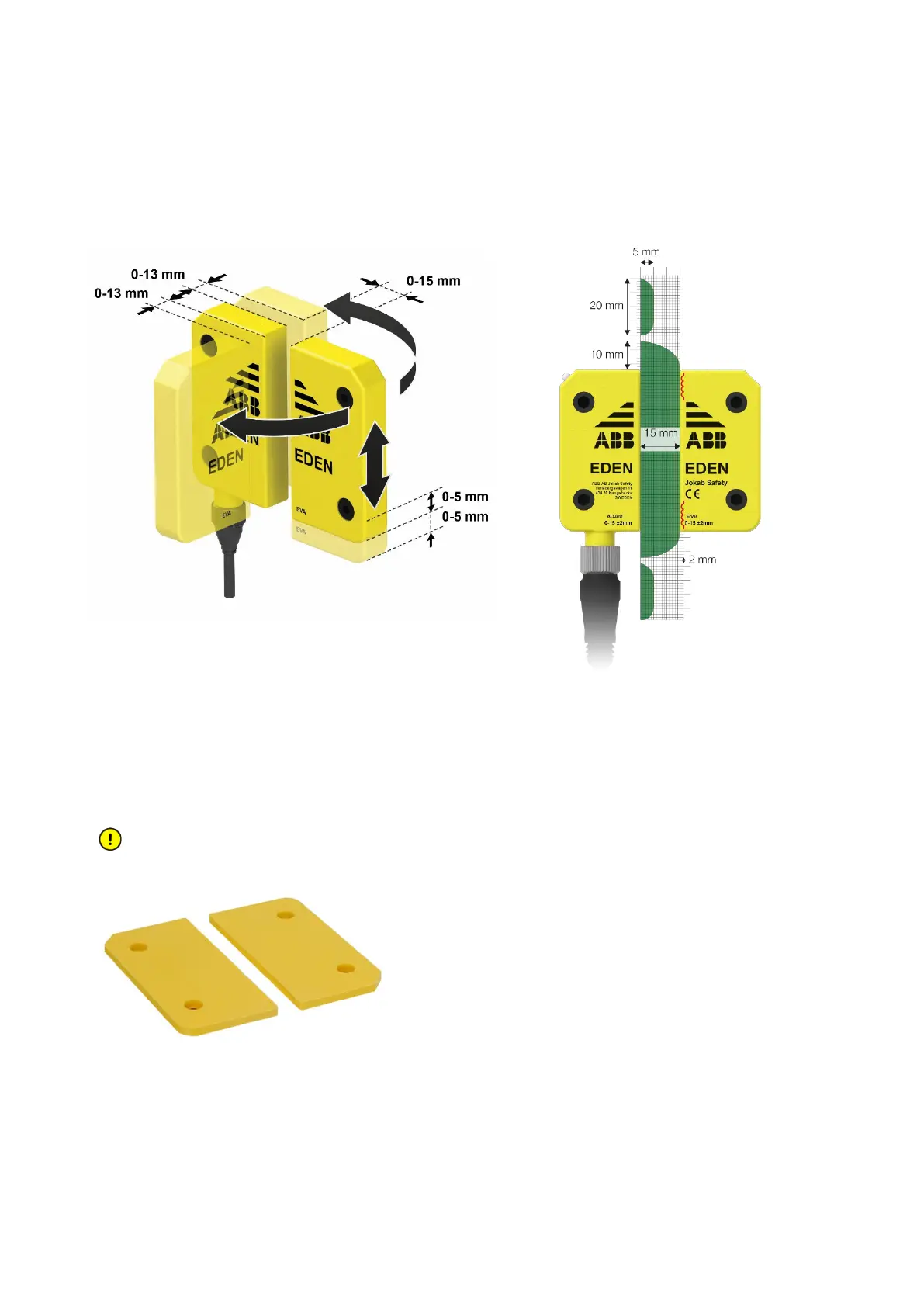

Detection distance
Eva can be turned in several different ways relative to Adam, see details in the figure below. The
green fields in the picture show the detection range of Adam relative to Eva. The Eva is detected
when the two coils (see red-marked areas, image below) in Eva are in contact with the green field.
distance between Adam and Eva:
Recommended distance between Adam and Eva:
Minimum distance between two Eden pairs:
-15 mm +/- 2 mm
mm
!
The detection distance can be affected if Eden is mounted close to metal.
Distance plate DA 1B must be used to prevent this.
The figures above shows maximum detection distances.
