Mounting

Depending on the cable connector used for the connection to Eden, one or two distance plates

might be required for correct mounting to avoid damaging Adam. It is recommended to use the

distance plates DA 1B, supplied with the Adam, see figure below. Also, the mounting spacers DA 2B

supplied must be used to physically protect Eden from damage.

The cable must be mounted so that no force is applied on Adam in any directions. The cable must

be fixed if it is connected to a moving object, for example a cable chain or a door. This can be done,

with for example, two cable clamps.

Caution

An improperly installed cable can damage the sensor

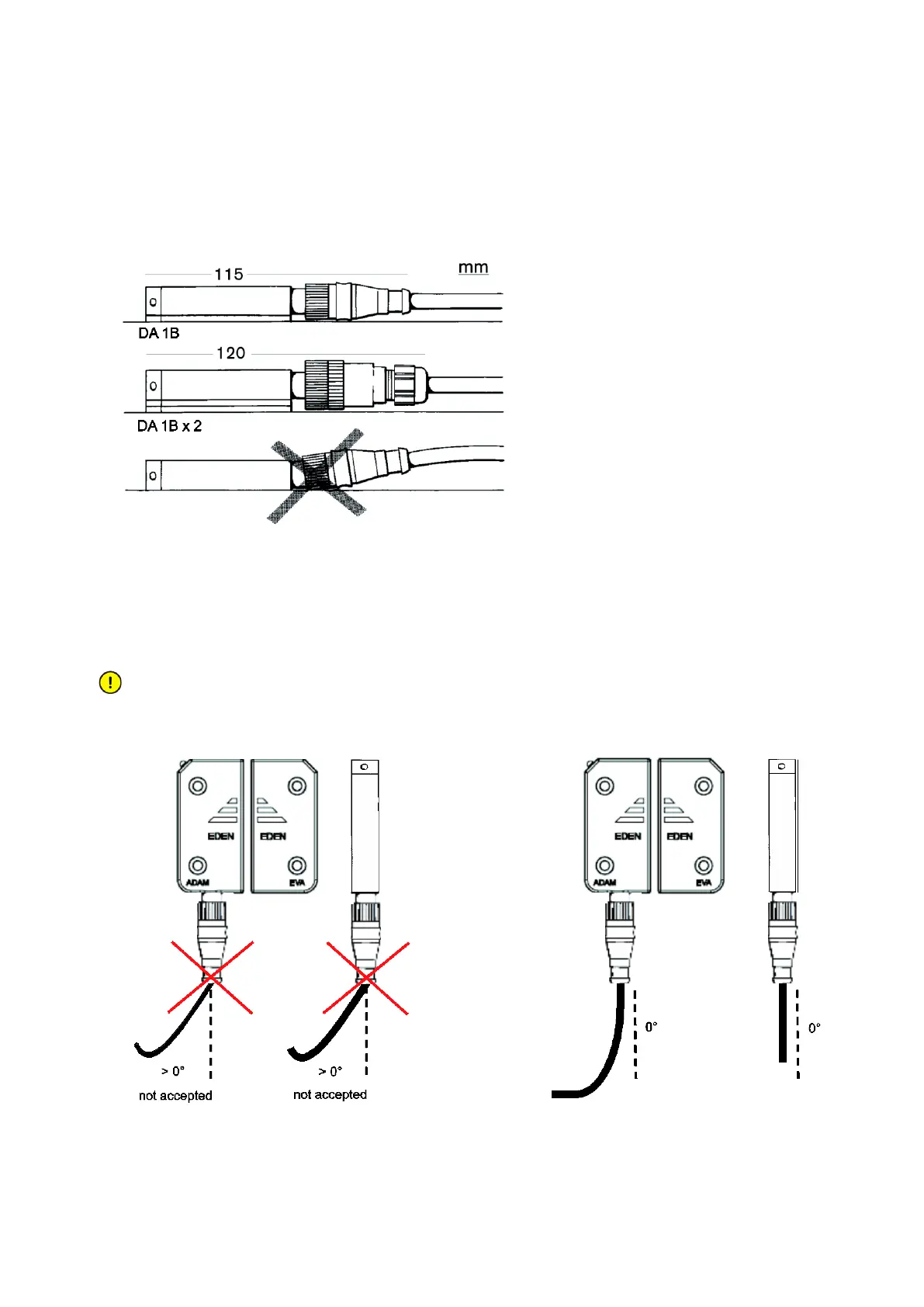

Mounting with one distance plate DA 1B for

Adam using prewired moulded M12

connector

Mounting with two distance plates DA 1B

for Adam using M12 connector with

glanded cable.

Incorrect mounting without distance plate

may cause permanent damage to the

sensor.

Accepted
