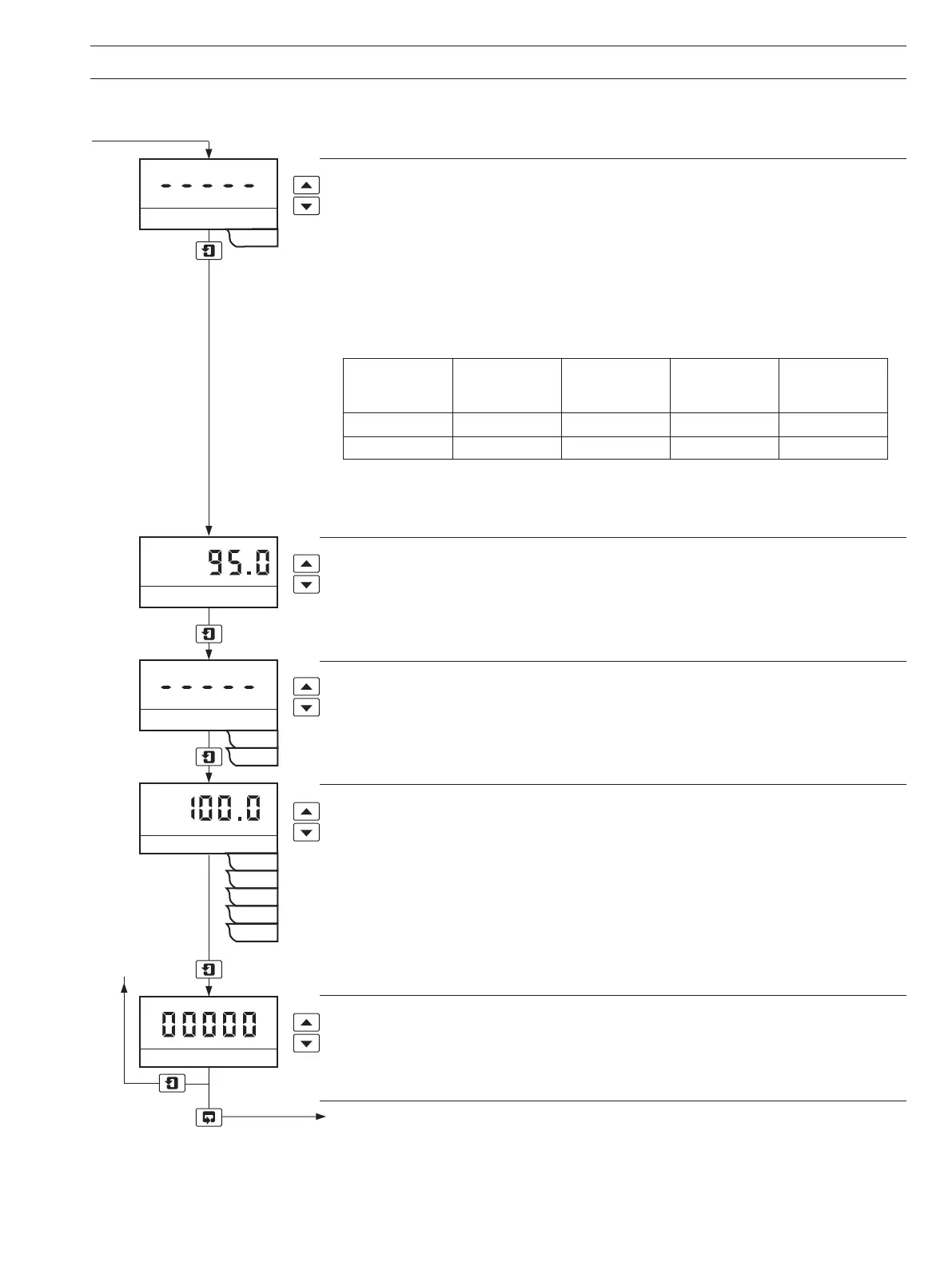

…10.3.3 Set Up Outputs Page (LOWER DISPLAY) – AK101 only
Purge Gas Relay Action
For 'Fail-Safe' alarm operation the relay's alarm state must be the same as the power-down
state, i.e. the relay is de-energized.
For high alarm operation the relay must be Energized Below the alarm set point (EB).
For low alarm operation the relay must be Energized Above the alarm set point (EA).
The alarm LEDs are illuminated in the alarm condition.
Select the required alarm action from the following table:
The set point band is defined as the actual value of the set point  1% of the set point value.
Alarm action occurs if the input value is above or below the set point band. If the input moves
within the set point band the last alarm action is maintained.
Purge Gas Alarm Set Point
The alarm set point can be set to any value within the input range being displayed. The set
point value is subject to hysteresis within the set point band as detailed above.
Set the alarm set point to the required value.
Advance to next parameter
Retransmission Output Type
The retransmission output is assigned to the purge gas concentration.
Select the retransmission output current range required (4 to 20mA, 0 to 20mA or 0 to
10mA).
Advance to next parameter
Test Retransmission Output
The instrument transmits a test signal of 0, 25, 50, 75 or 100% of the retransmission range.
The % test signal selected is shown on the upper line of the display.
Example – for the range 0 to 20mA and 50% retransmission test signal, 10mA is transmitted.
Select the required retransmission test signal.
Advance to next parameter
Alter Security Code
Set the security code to a value between 00000 and 19999.
This value will then have to be entered to regain access to the secure parameters.
Advance to Electrical Calibration Page.
