Manual for High Voltage Process Performance Motors
10 - Transport and Unpacking
3BFP 000 063 R0101 REV D

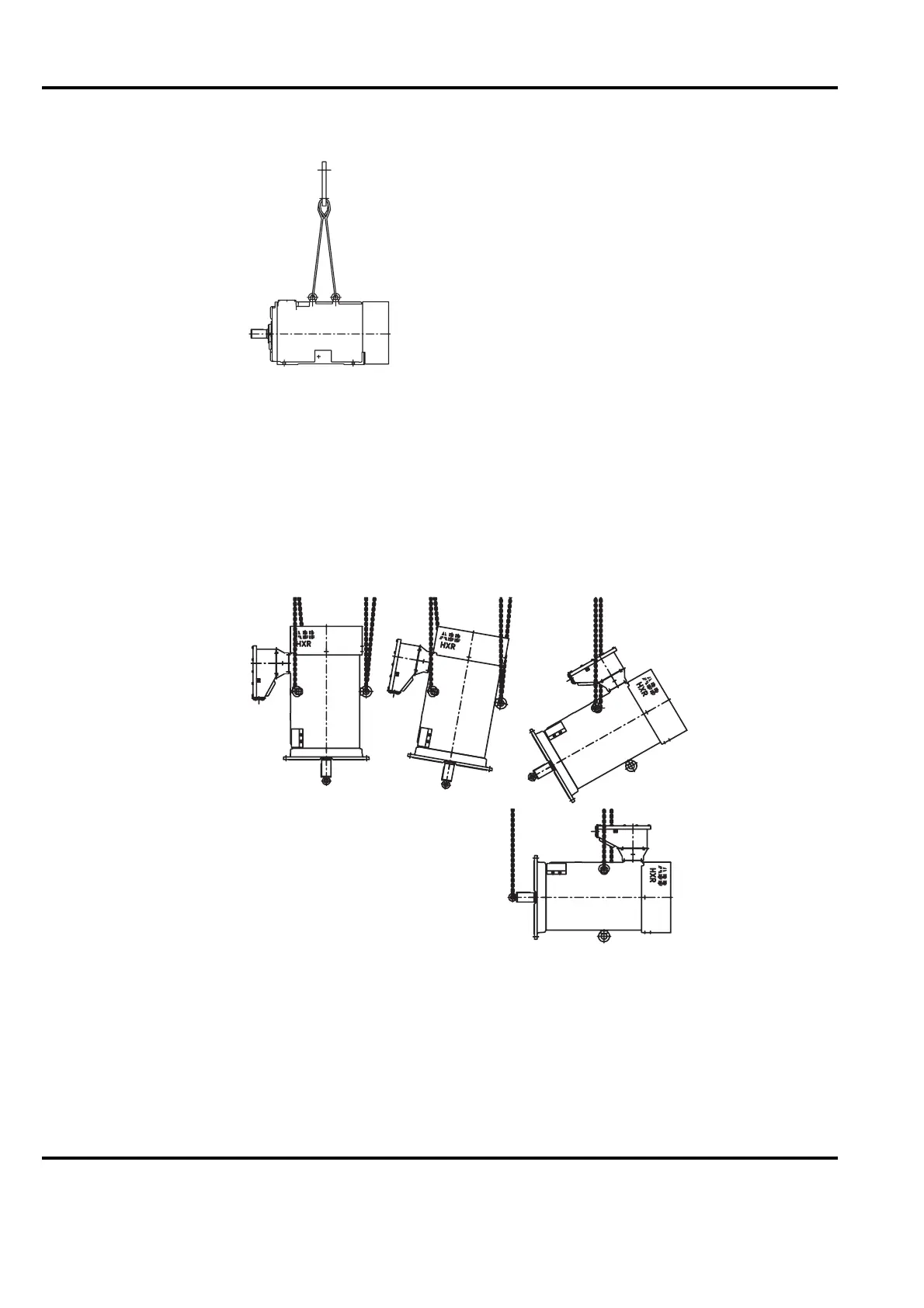

Figure 2-5 Lifting of unpacked machines
2.3 Turning a vertically mounted machine
Vertically mounted machines may be necessary to turn from vertical to horizontal position, e.g.
when changing the bearings, and vice versa. This is shown in Figure 2-6 Machine with turnable
lifting eyes: lifting and turning. Avoid damaging the painting or any parts during the procedure.
Remove or install the bearing locking device only when the machine is in vertical position.
Figure 2-6 Machine with turnable lifting eyes: lifting and turning
