Electromagnetic flowmeter 2 Mechanical Installation
12 User Guide OI/FET2XX–EN Rev. E
2.3.2 Terminal Box – Sensor-mounted
Dimensions in mm (in.)

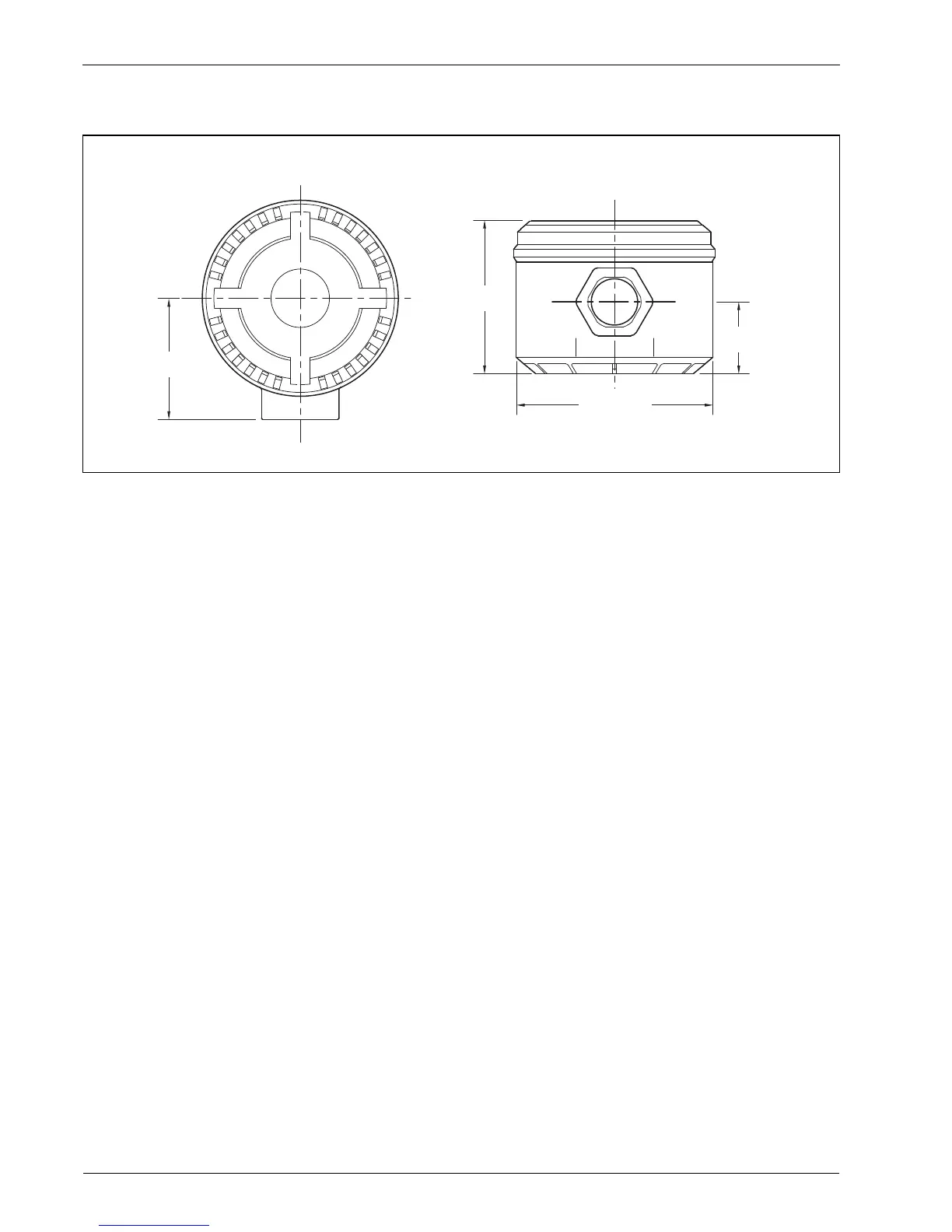

Fig. 2.21 Round Terminal Box Dimensions
100 (3.93)
36.5 (1.43)
62 (2.44)
80 (3.2)
