AquaMaster 3
Electromagnetic flowmeter 5 Specification
50 User Guide OI/FET2XX–EN Rev. E

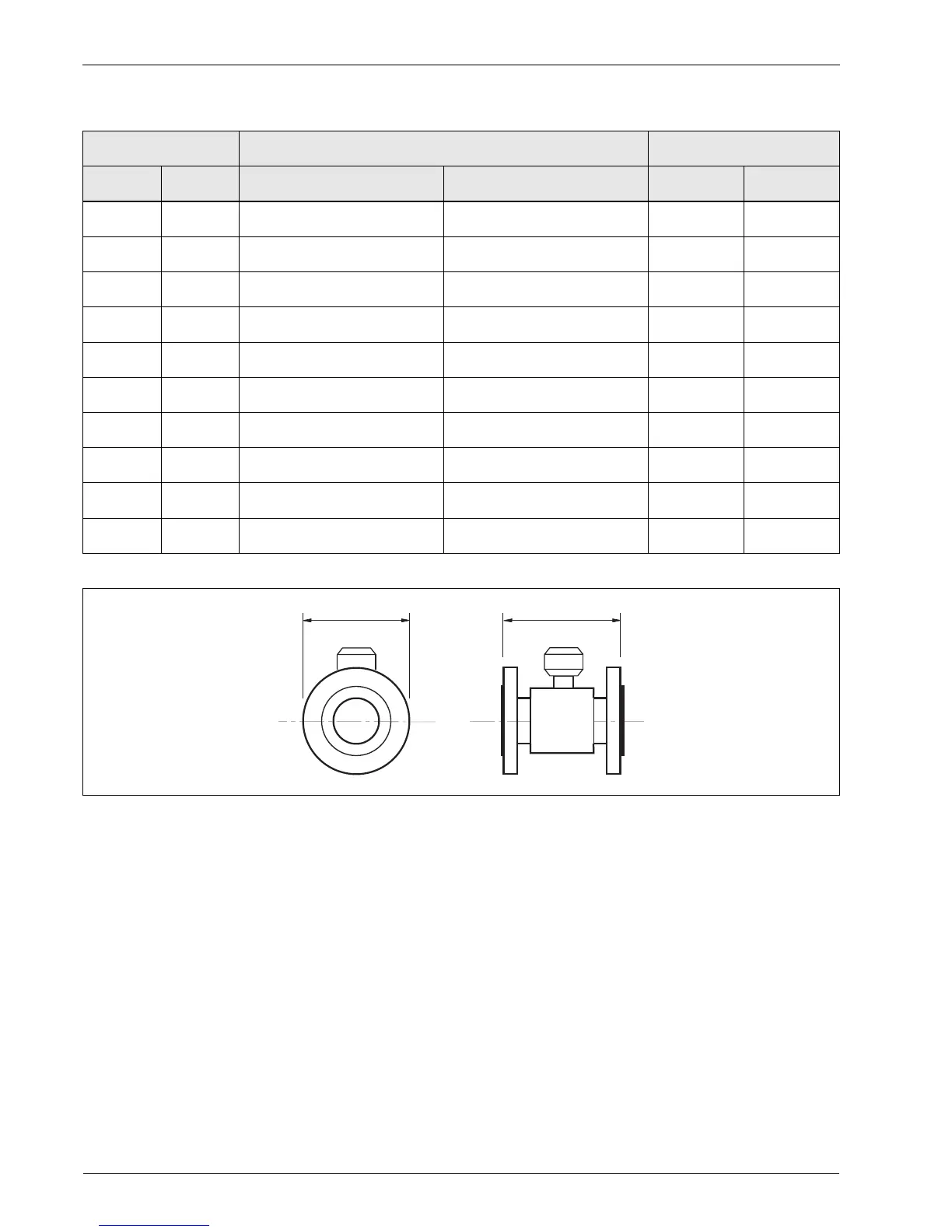

25 to 300 mm (1 to 12 in.) – Full Bore (MM/GF)
DS/FET200-EN Rev. D
Meter Size Dimensions mm (in.) Approx. Weight
mm in. A B kg lb
25 1 115 (4.5) 200 (7.9) 7 15
40 1
1
/2 150 (5.9) 200 (7.9) 9 20
50 2 165 (6.5) 200 (7.9) 10 23
65 2
1
/2 185 (7.3) 200 (7.9) 18 40
80 3 200 (7.9) 200 (7.9) 18 40
100 4 230 (9.0) 250 (9.8) 24 54
150 6 285 (11.2) 300 (11.8) 38 84
200 8 345 (13.6) 350 (13.8) 37 81
250 10 410 (16.1) 450 (17.7) 60 132
300 12 485 (19.1) 500 (19.7) 70 154
BA
