Electronic Commercial Water Meter
AquaMaster™ 3 Electrical Installation
IM/AM Issue 13 17

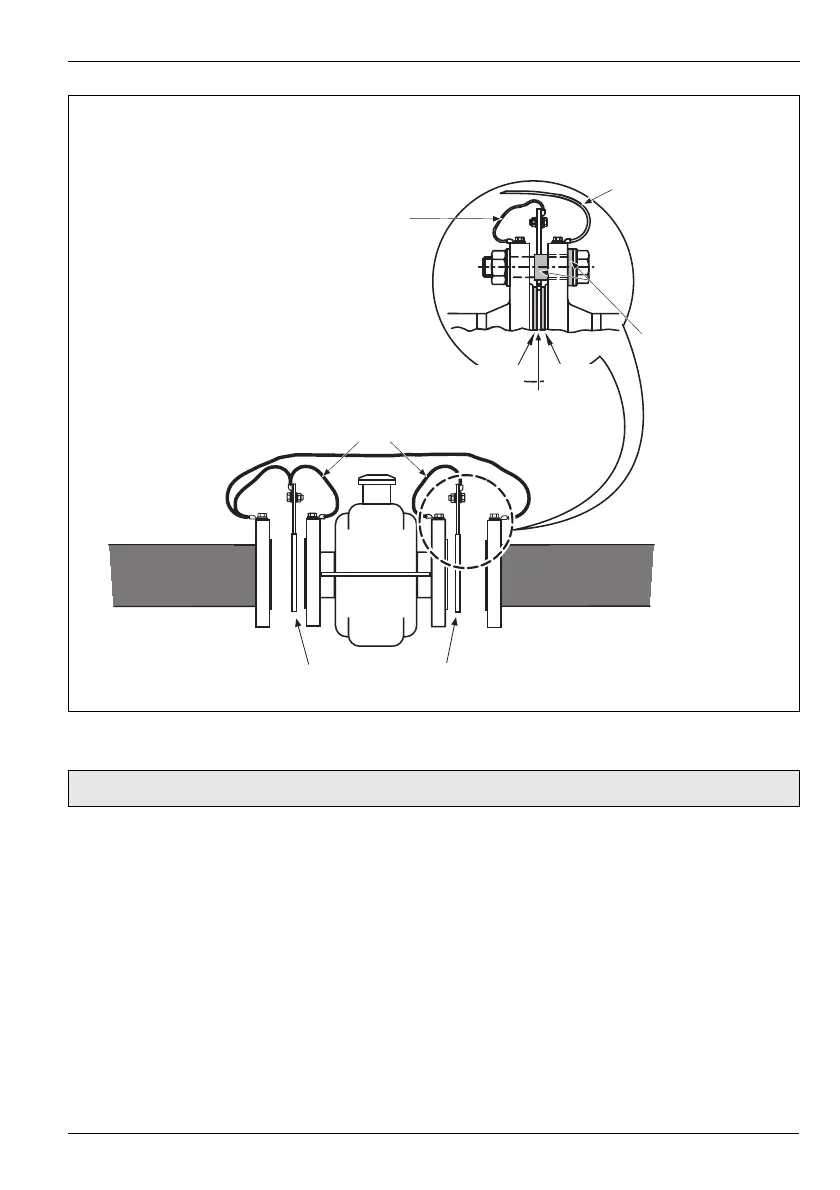

Fig. 3.8 Pipelines With Cathodic Protection, DN≥100mm
Caution. Do NOT ground Cathodically Protected Systems.
Fluid Contact Rings
Insulating Sleeve
and Washer
(not supplied)
Insulated connecting wire
(not supplied). Must be
adequately rated to carry
cathodic currents.
Gasket
Gasket
Bonding Cable
(supplied)
Fluid Contact
Ring
Bonding Cables
(supplied)
To Next Page
