AZ10 OXYGEN ANALYZER | COMBUSTION GAS ANALYSIS | OI/AZ10-EN REV. A
27
Test gas configurations – AutoCal systems with restrictors
System using air as test gas 1 and bottled gas as
(optional) test gas 2

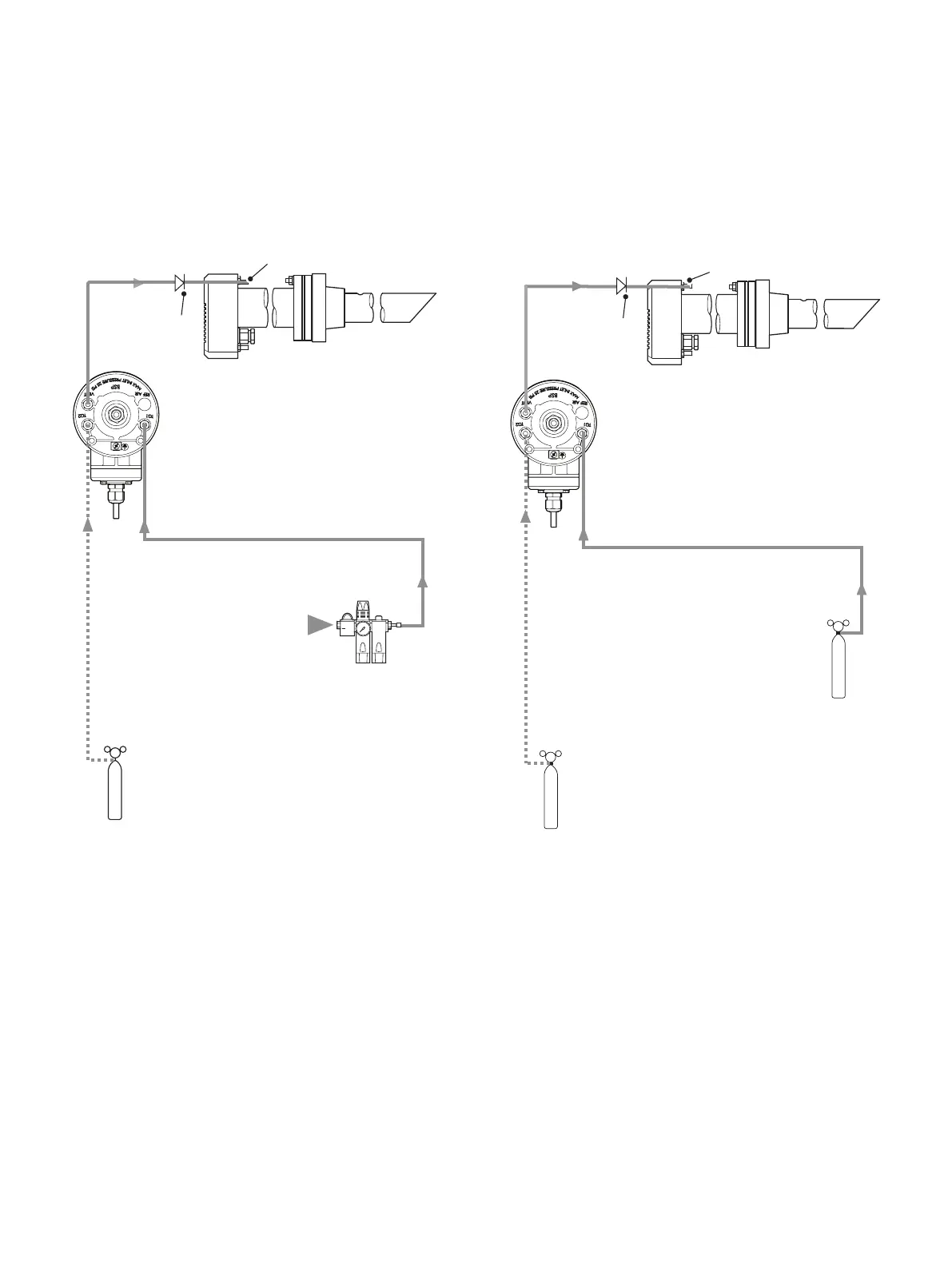

Figure 25 Test gas supply, AutoCal system with restrictors –
air (test gas 1) and optional bottled gas (test gas 2)
System using 2 bottled test gases
Figure 26 Test gas supply, AutoCal system with restrictors –
2 bottled test gases
AZ10 probe
AZ10 AutoCal unit
Test gas supply: restrictor in Autocal
Test gas port
coalescing
filter regulator
Clean dry oil-free instrument air
INPUT
OUTPUT
Non-return
valve
TG1
TG2
Test gas port
Non-return
valve
AZ10 probe
TG1
TG2
AZ10 AutoCal unit
Test gas supply: restrictor in Autocal
