ABB AZ10 - 4 Overall Dimensions; AZ10 Probe; AZ10 Transmitter; Auto-Calibration Unit

8 AZ10 OXYGEN ANALYZER | COMBUSTION GAS ANALYSIS | OI/AZ10-EN REV. A

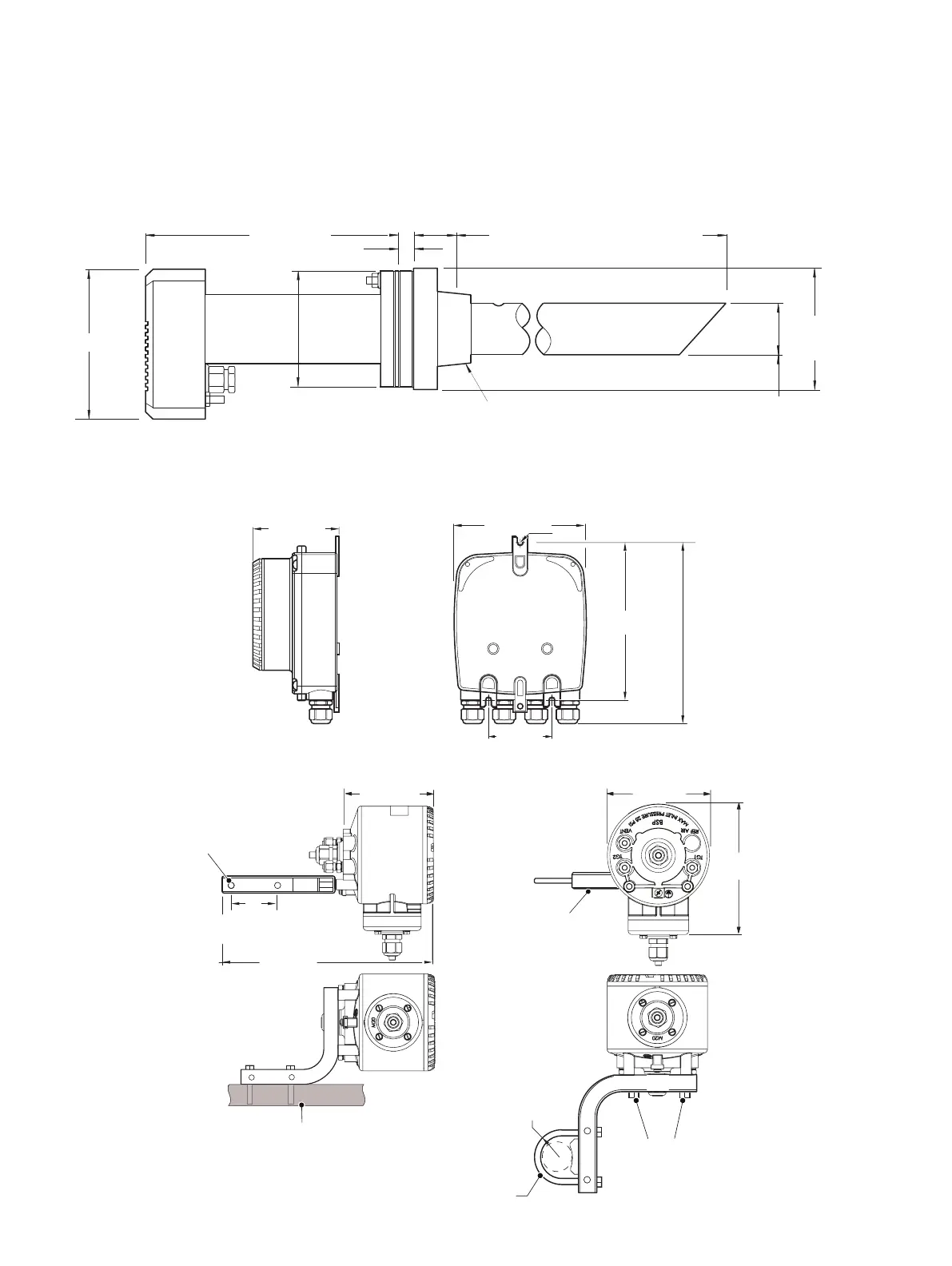

4 Overall dimensions

AZ10 probe
AZ10 transmitter
Auto-calibration unit
Nominal insertion length

Mounting adaptor
page 9

34













135 (5.3)
R39
(1.5)
203 (8.0)
125 (4.9)
303 (11.9)
Ø 8.5 (0.33)
70
(2.76)
Wall-mount arrangement
2 x M8 fixings through bracket
Use only
ABB-supplied



Wall-/Pipe-mount bracket

Pipe-mount arrangement using U-bolt/pipe clamp


