ABB D2 Plus User Manual

10
EN

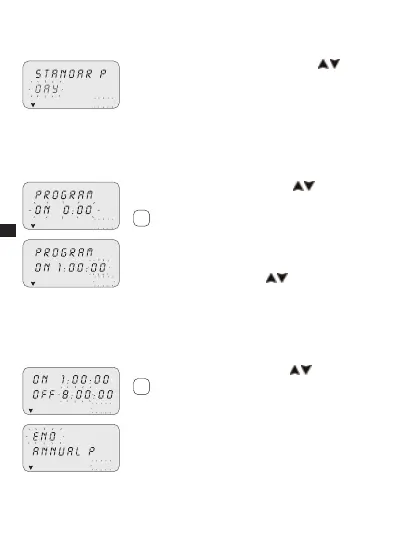

Set day
Select the day or group of days in which the program must be executed.
P02
Set the day or group of days using keys 1. .
The flashing arrow indicates the day or group of »
days selected.
Press2. OK to confirm.
Followed by TIME/ON setting.»
Set TIME/ON
P02
P02
Set program start time using keys 1. in the format
hh/mm.
Single pressure of keys moves field by minutes.
Prolonged pressure of keys moves field by hours
Press2. OK to confirm.
The seconds field appears.»
Set the seconds using keys 3.
.
Press4. OK to confirm.
The program start time has been set»
Followed by TIME/OFF setting.»
Set TIME/OFF
P02
P02
Set program end time using keys 1. .
Repeat operations as per TIME/ON.
Press2. OK to confirm.
The program end time has been set»
Press3. OK to confirm program end time.
i
i
