Chapter 10 - Service
VI A 10 - 6 DCS 500 / DCS 600 Service Manual
How to remove the converter fan in a
frame A6
1. Remove the three screws at the top of the fan.
2. Disconnect the cables.
3. Lift the fan up and pull it out.

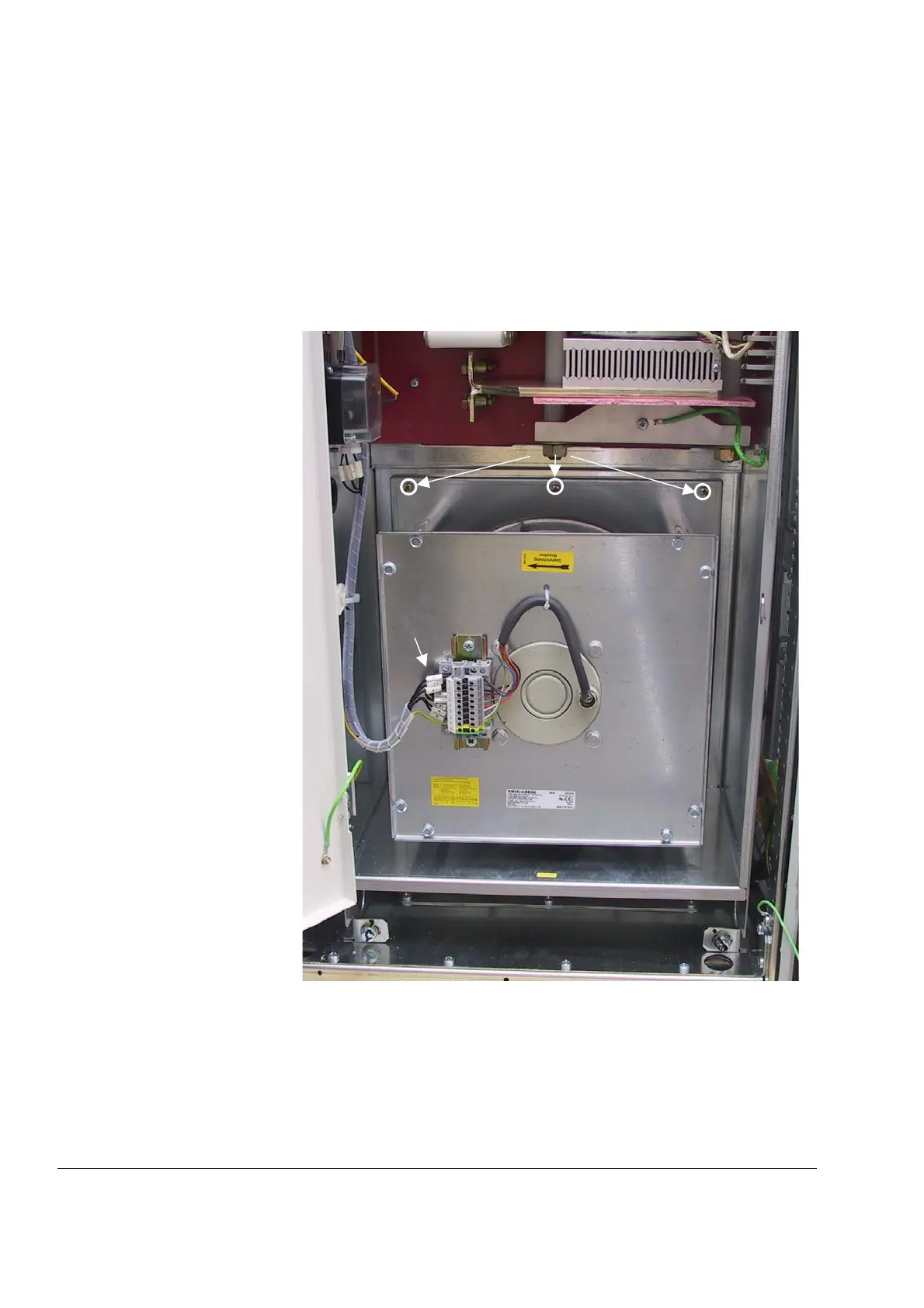

Figure 10-1 Converter fan in frame A6
screws
cables
