Chapter 10 - Service
DCS 500 / DCS 600 Service Manual
VI A 10 - 19
The correct setting can be checked and set to the required settings
(e.g. COMx connector) in the menu item:
FILE/PROPERTIES/CONFIGURE

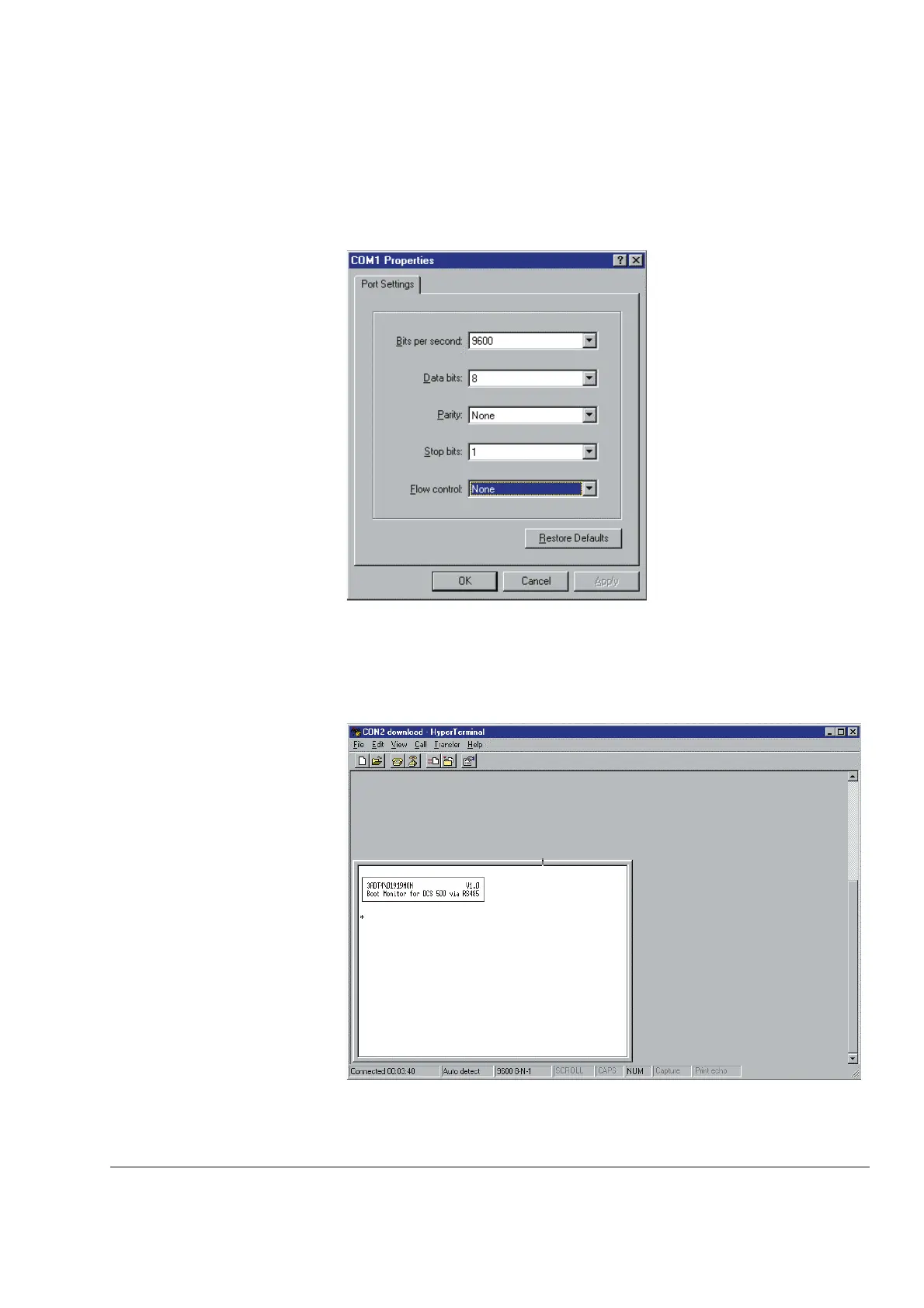

The properties for COM1 are shown below
• Switch on auxiliary supply voltage of SDCS-POW-1
• The LED-display on the SDCS-CON-x shows a small u
• The terminal program detects communication
HyperTerminal Active communication is shown by the *
