Chapter 10 - Service
VI A 10 - 8 DCS 500 / DCS 600 Service Manual
SDCS-CON-x Firmware download in-
structions for Windows 2000 and NT 4.0
Hardware Configura-
tion
Firmware
download Kit
The Firmware download kit (3ADT 220106 R0001) handles the
SDCS-CON-x firmware download process for DCS 500B and DCS
600 MultiDrive converters. It consists of an interface RS232 to
RS485 and a bus cable (same as for panel connection).
Note: SDCS-CON-x resembles SDCS-CON-2 and higher.

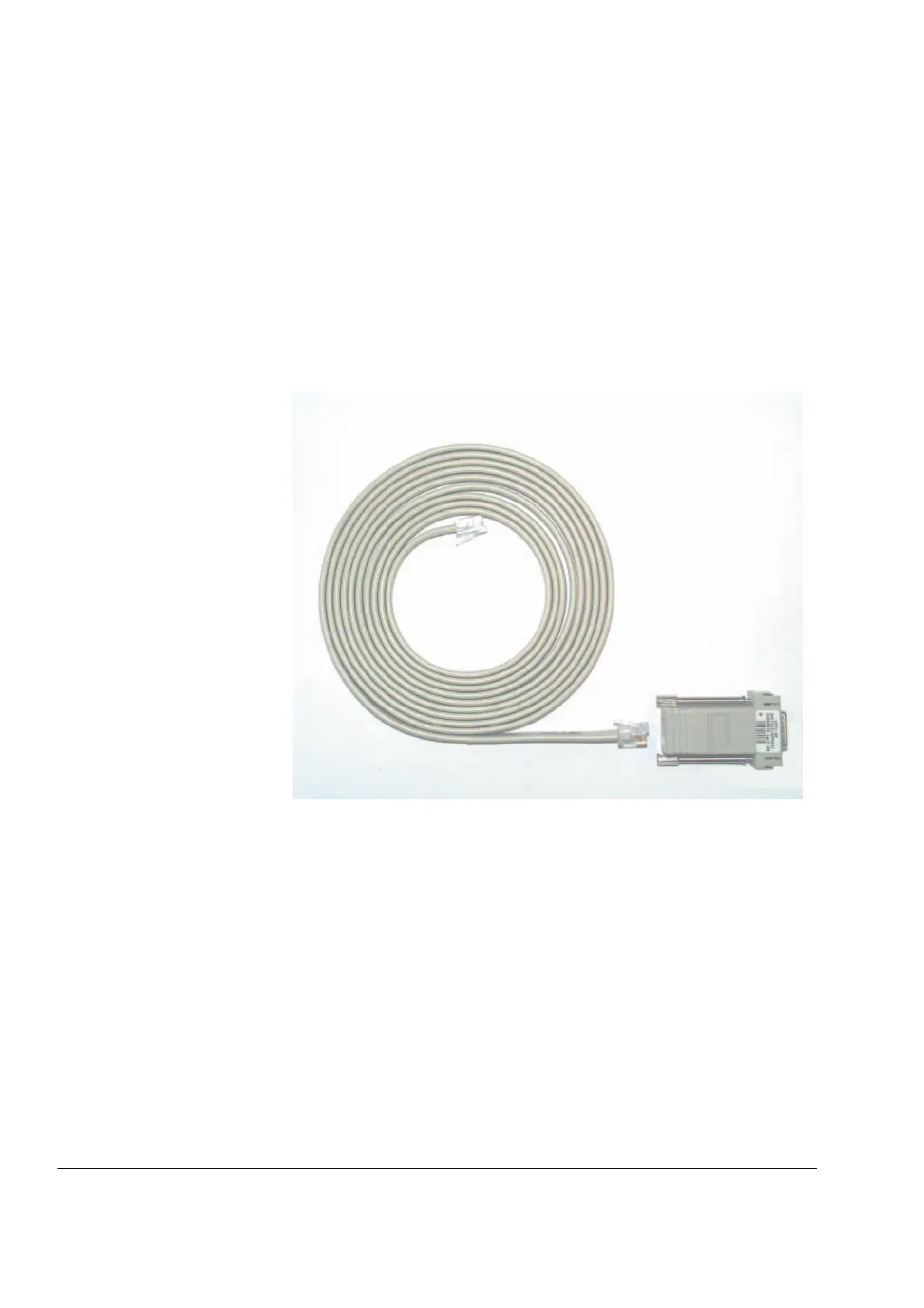

Figure 10 - 3 Firmware download kit
NPCU-02
The NPCU-02 is a RS232 to RS485 interface without any galvanic
isolation.
Bus cable The bus cable (DCA 0021499 R0001) connects the interface with
the DCS converter.
3ADW000093R0701_DCS500B/DCS600_Service manual_e_g
