Chapter 10 - Service
DCS 500 / DCS 600 Service Manual
VI A 10 - 17

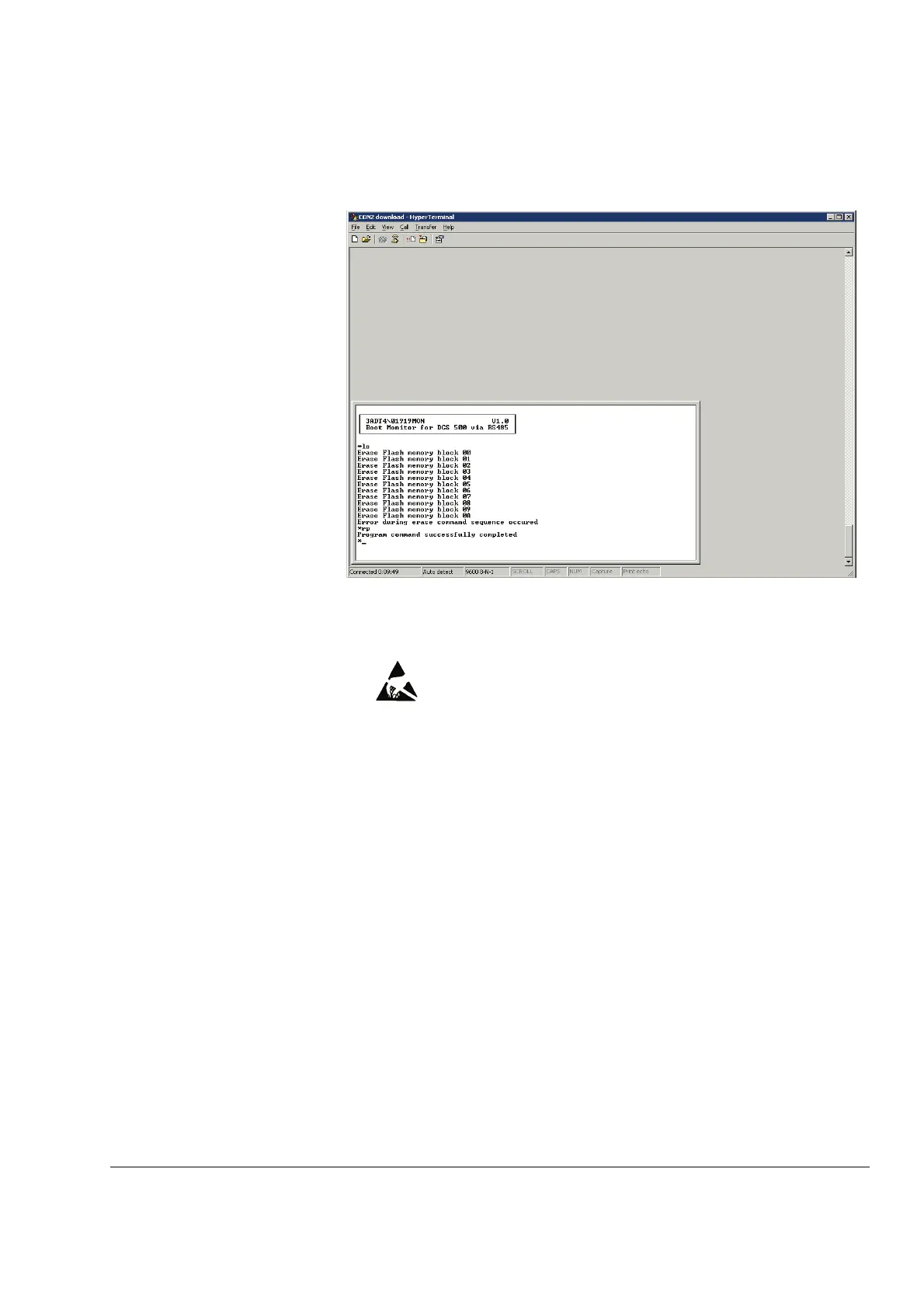

After the download is finished the display shows a small u again
and the terminal program gives the message Program command
successful completed.
• Switch off auxiliary supply (SDCS-POW-1).
• Set jumper S2 5-6 back to position 3-4 (or 7-8 if two jumpers are
present).
•
Assemble the SDCS-AMC x board (only DCS 600). Take
care on the plastic washer of the screw near CH0.
The download of the SDCS-CON-x is finished now.
The firmware version can be checked with
signal 112.18 for DCS 500B and
signal 4.11 for DCS 600.
3ADW000093R0701_DCS500B/DCS600_Service manual_e_g
