ABB DCS550 Series - Connection Example Diagram; Wiring for OnBoard Field Exciter

11
3ADW000395R0100 DCS550 Quick guide edisf a
113ADW000395R0100 DCS550 Quick guide edisf a
english
Converters F1...F4 drive configuration using ‘OnBoard‘ field exciter
Terminal selection according FACTORY macro (default)
F6
DCS550_ans_1_c.dsf
further information see the following page

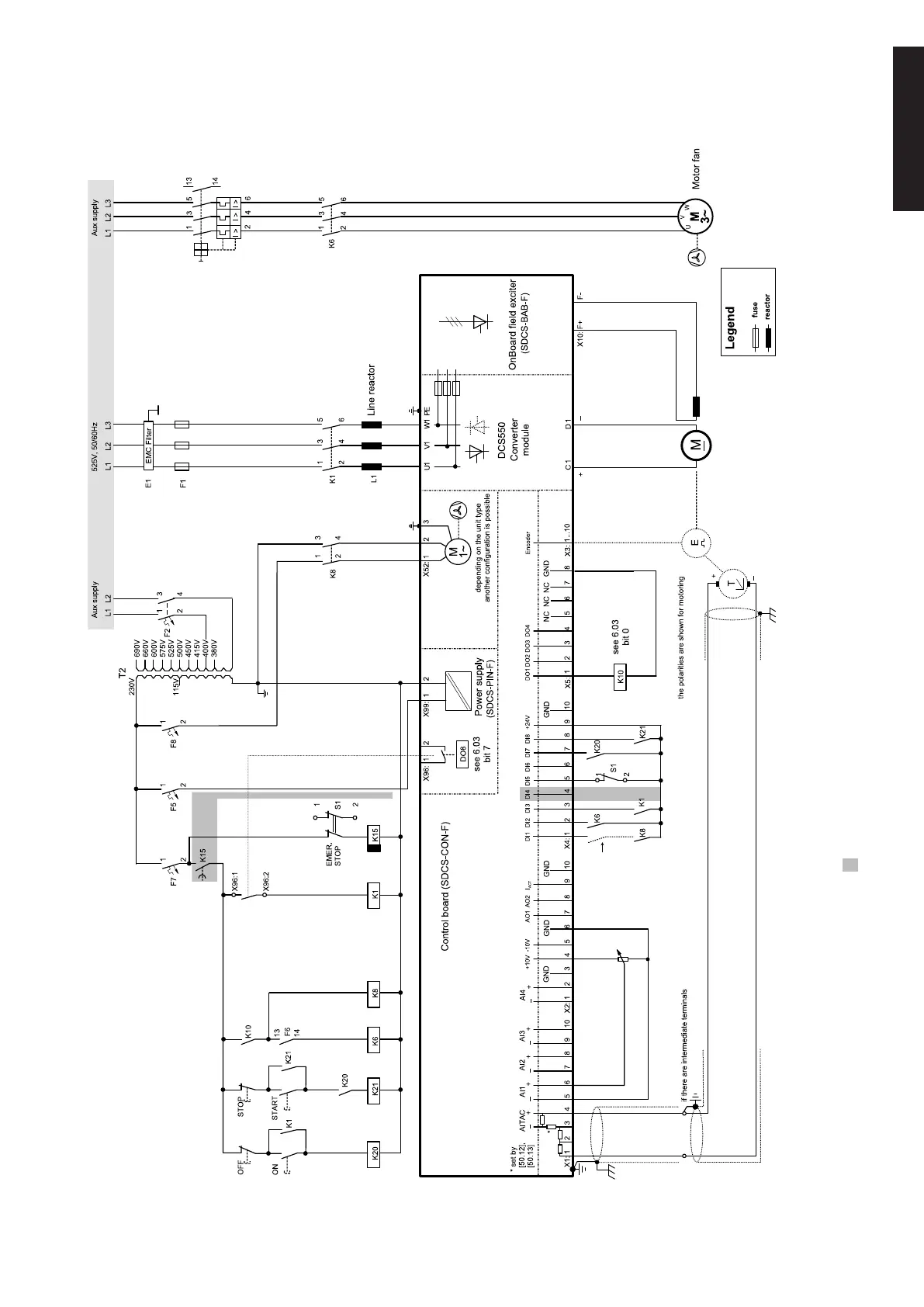

Connection example
